2-11
Hardware Setup MS-7740
Chapter 2

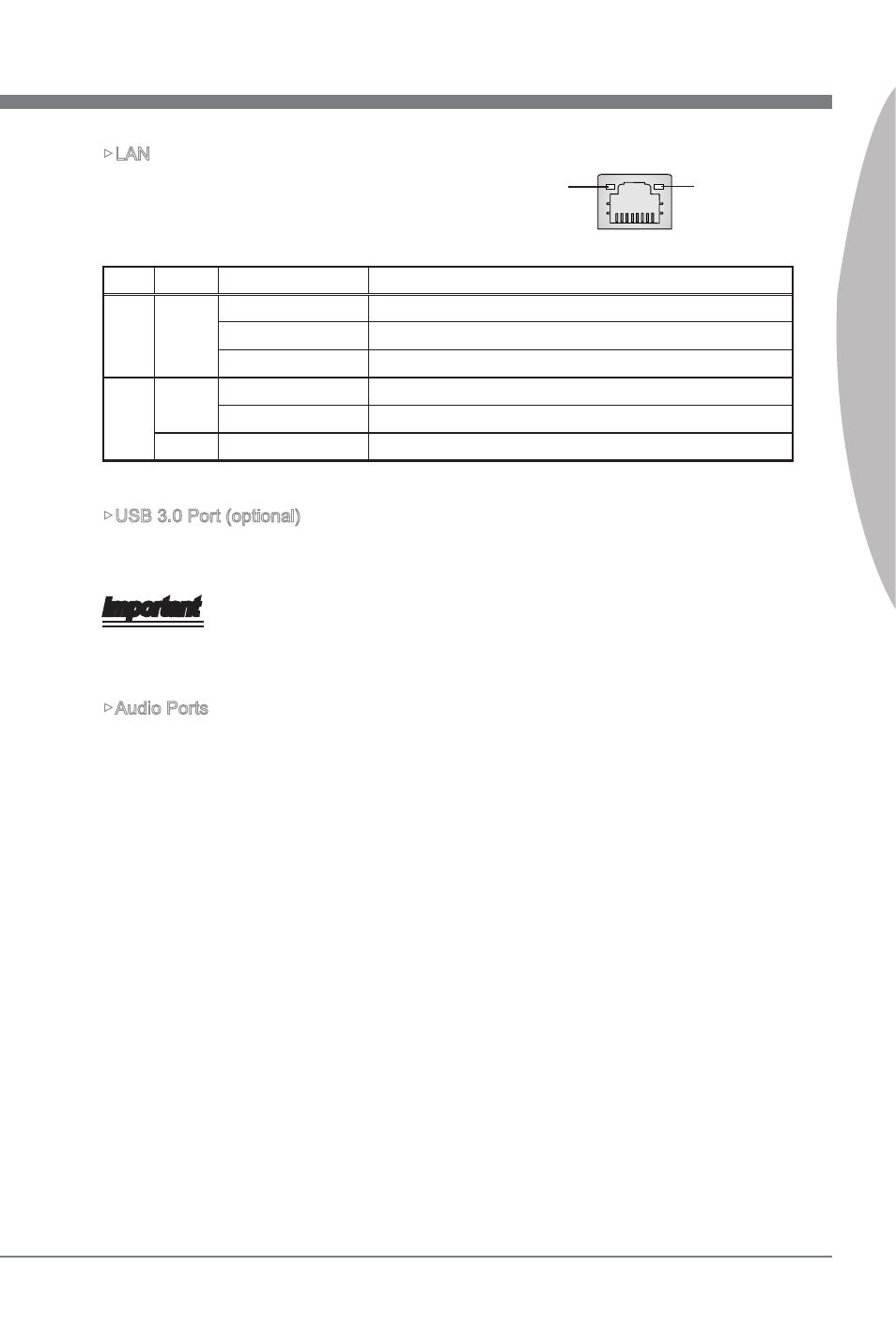

▶LAN
The standard RJ-45 LAN jack is for connection to
the Local Area Network (LAN). You can connect a
network cable to it.
LED Color LED State Condition
Left Yellow Off LAN link is not established.
On(Steady state) LAN link is established.
On(brighter & pulsing) The computer is communicating with another computer on the LAN.
Right Green Off 10 Mbit/sec data rate is selected.
On 100 Mbit/sec data rate is selected.
Orange On 1000 Mbit/sec data rate is selected.
▶USB 3.0 Port (optional)
USB 3.0 port is backward-compatible with USB 2.0 devices. It supports data transfer
rate up to 5 Gbit/s (SuperSpeed).
Important
If you want to use a USB 3.0 device, you must use the USB 3.0 cable to connect to the
USB 3.0 port.
▶Audio Ports
These audio connectors are used for audio devices. It is easy to differentiate between
audio effects according to the color of audio jacks.
■ Line-In: Blue - Line In, is used for external CD player, tape-player or other audio
devices.
■ Line-Out: Green - Line Out, is a connector for speakers or headphones.
■ Mic: Pink - Mic, is a connector for microphones.
■ RS-Out: Black (optional) - Rear-Surround Out in 4/ 5.1/ 7.1 channel mode.
■ CS-Out: Orange (optional)- Center/ Subwoofer Out in 5.1/ 7.1 channel mode.
■ SS-Out: Gray (optional)- Side-Surround Out 7.1 channel mode.
Yellow Green/ Orange
