Chapter 1
1-25 Getting Started

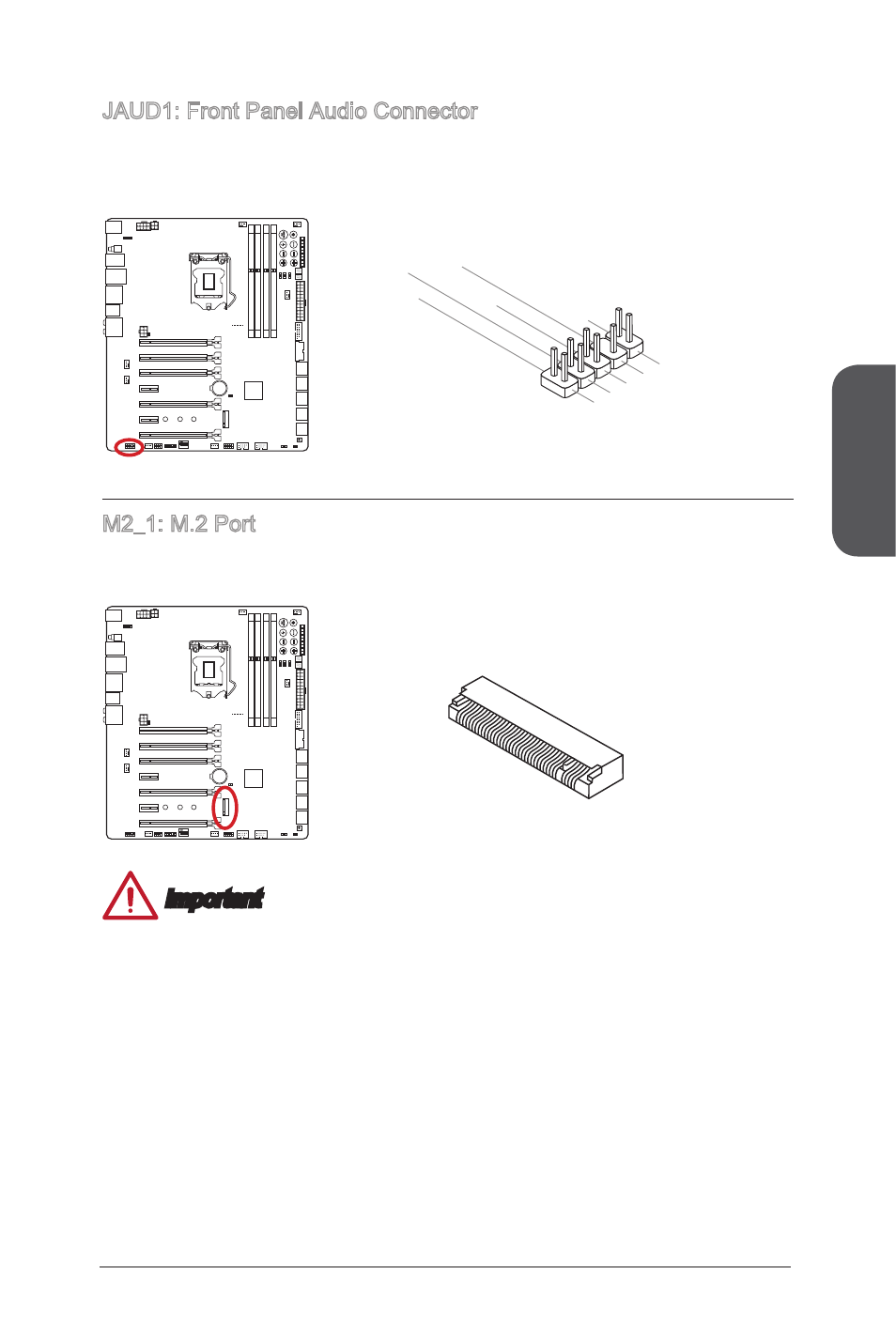

JAUD1: Front Panel Audio Connector
This connector allows you to connect the front audio panel located on your computer
case. This connector is compliant with the Intel ® Front Panel I/O Connectivity Design
Guide.
1 2 3 4
1.M
IC
L
3.M
IC
R
10.
He
ad
Ph
one
De
tec
tion
5.H
ead
Ph
one
R
7.S
EN
SE
_S
EN
D
9.H
ead
Ph
one
L
8.N
o P
in
6.M
IC
De
tec
tion
4.N
C
2.G
rou
nd
M2_1: M.2 Port
The M.2 port supports either M.2 SATA 6Gb/s module or M.2 PCIe module. You can
set the M.2 port to automatically detect or a specific interface with the JM2_1 jumper.
1 2 3 4
Important
• The SATA5 and SATA6 ports will be unavailable when installing a module in the
M.2 port.
• Intel RST only supports PCIe M.2 SSD with UEFI ROM, does not support Legacy
ROM.
• M.2 PCIe interface does not support RAID 0, RAID1, RAID 5 and RAID 10.
