Masterbuilt Veranda Grill (20150210, 20150414, 20150514, 20150614) - Manual (Page 7)

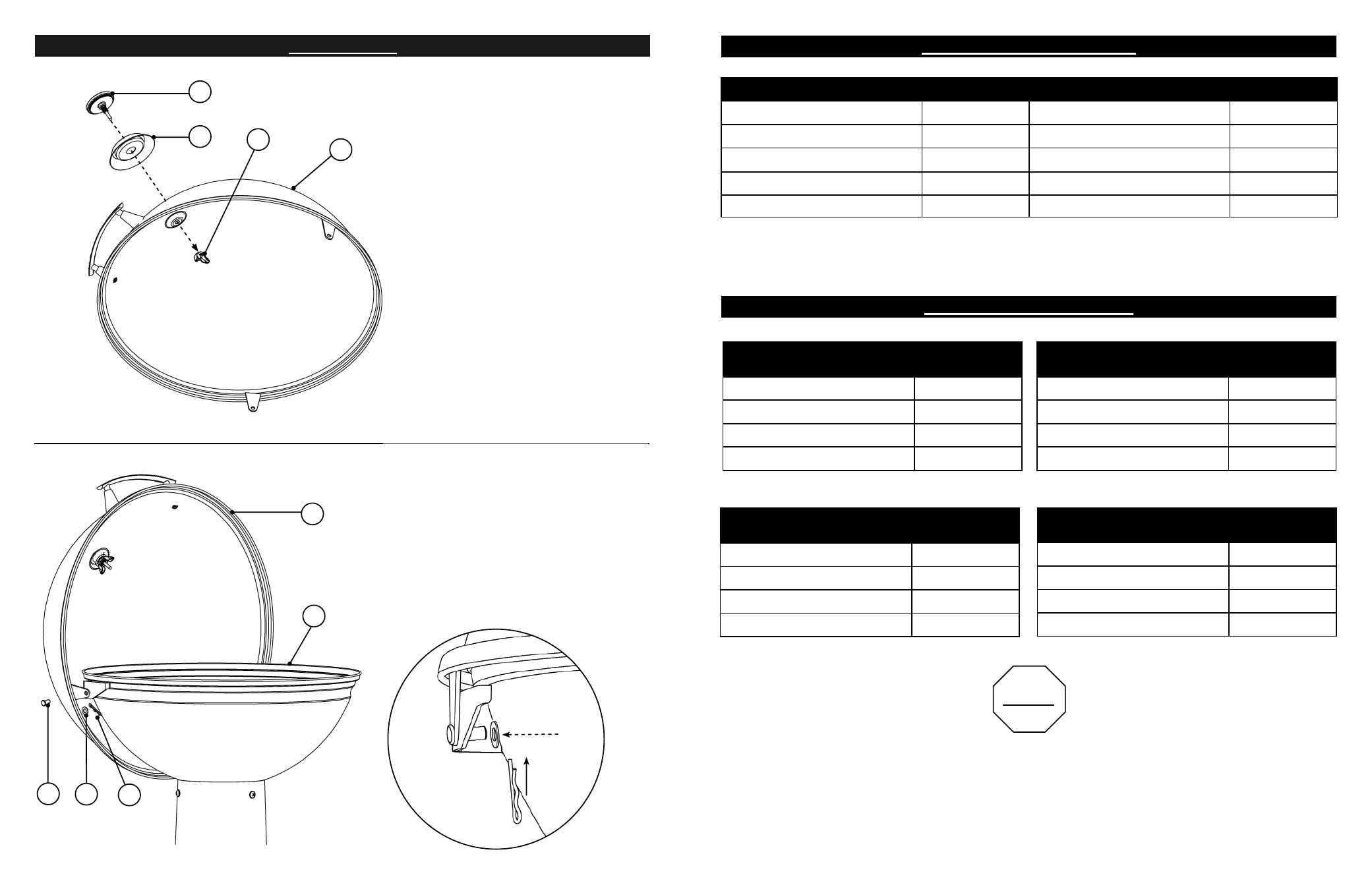

ENSAMBLAJE
PASO 5.
Inserte la punta del medidor de
temperatura (10) a través de la
arandela de protección (14) en la
tapa de la parrilla (1). Fije usando
la tuerca mariposa (F) como se
muestra.
PASO 6.
Alinee la bisagra en la tapa de la parrilla
(1) con la bisagra en la base de la parrilla
(2). Inserte el pin de enganche (A) a
través de los orifi cios alineados como se
muestra. Fije la arandela plana (B) en el
extremo del pin de enganche. Fije usando
el pin de cabello (C).
Repita el Paso 3 al lado opuesto.
10
14
F
1
1
2
B A C
9 6
REPLACEMENT PARTS LIST
REPLACEMENT BODY KITS
REPLACEMENT PARTS ITEM NO REPLACEMENT PARTS ITEM NO
Lid Kit 9915130006 Cooking Grate 9015130003
Lid Handle Kit 990070085 Control Unit w/ Cord 9007090063
Element Kit 99150001 Instruction Manual 9815130001
Temperature Gauge Kit 9915130002 Hardware Bag 9915090001
Refl ector Plate 9015100001
20150414
REPLACEMENT PART
ITEM NO
Base Kit (Red) 9915130003
Pedestal Middle Kit (Red) 9915130004
Outer Bowl Kit (Red) 9915130005
Grease Cup 9015130004
20150614
REPLACEMENT PART
ITEM NO
Base Kit (Black) 9915130009
Pedestal Middle Kit (Black) 9915130014
Outer Bowl Kit (Black) 9915130010
Grease Cup 9015130019
20150210
REPLACEMENT PART
ITEM NO
Base Kit (Gray) 9915130011
Pedestal Middle Kit (Gray) 9915130015
Outer Bowl Kit (Gray) 9915130012
Grease Cup 9015130020
20150514
REPLACEMENT PART
ITEM NO
Base Kit (Blue) 9915130007
Pedestal Middle Kit (Blue) 9915130013
Outer Bowl Kit (Blue) 9915130008
Grease Cup 9015130018
DO NOT RETURN TO RETAILER
For Assembly Assistance, Missing or Damaged Parts
Call: MASTERBUILT Customer Service at 1-800-489-1581
STOP!
