6
TWO
Set Up

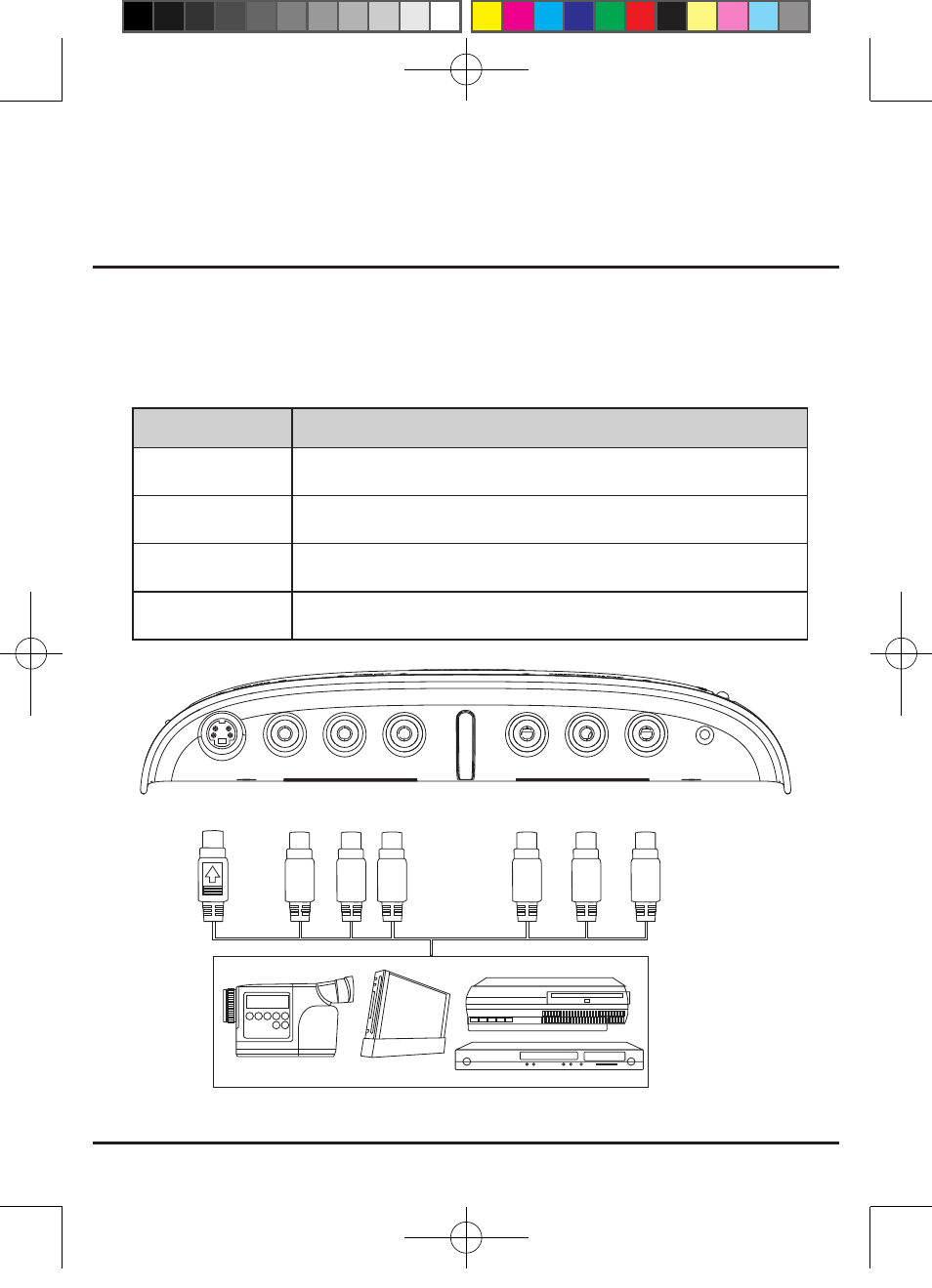

Figure 1
Ports Function
• Component input This kind of input interface is provided by higher video equipment, so
it provides higher quality and resolution of images (Up to 1080P).
• S-video input
This kind of input equipment can provide better images than those of
general video equipment provides.
• Video input
This is the most general video input interface, so the quality of the
images is ordinary.
• Audio input
This is the most general Audio input interface, so the quality of the
sound is ordinary.
DV,DVD,GameConsole
S-Video In Video In Audio In Power Light Component Cable In
RM
Sensor
AV
L R Y
Pb Pr
2.1 Connecting Video and Audio Equipment
1.This product supports component video input (Y. Pb. Pr). Please view Figure 1.
2.This package includes a composite cable. Users can connect one side to the AV jack on
the LCD , and connect another side to “AV Out” port on your TVBox.
