REMOTE CONTROL COMMANDS:
(xx = 01 to 99)
Store a memory location:
STORE xx STORE
Move to a memory location:
RECALL xx
or: UP / DOWN
Move to an angle:
abc (abc = 000 to 450)
or: LEFT / RIGHT
Delete a memory location:
DELETE xx DELETE
Delete all memory locations:
DELETE 00 DELETE
Resynchronization:
STORE 00 STORE
Total reset:
DELETE 00 STORE
Cancel a command:
ESCape

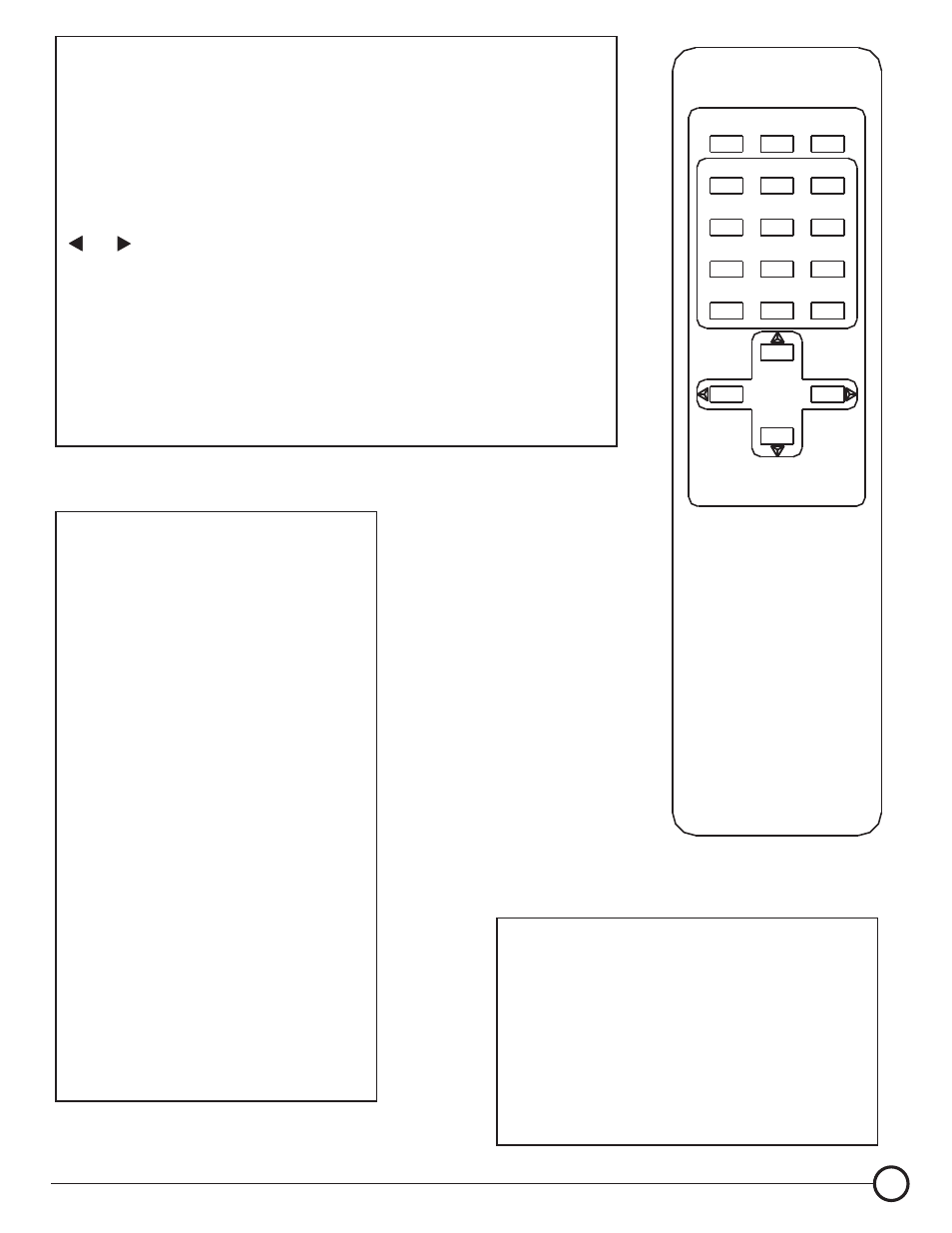

REMOTE CONTROL KEYS
POWER:
Switch Controller between stand-by and ready.
0 - 9 numeric keys:
Used for moving to, or storing desired location numbers and
direction angles
ESC:
Cancel current operation or programming mode.
Stop antenna moving.
or :
Manually move the antenna clockwise or counter clockwise.
▲ or ▼ :
Move between saved locations.
Store:
Save current location as a designated position.
Delete:
Deleting a single stored location or all stored locations.
Recall:
Recall a saved antenna position.
USING A UNIVERSAL REMOTE
CONTROL
There is a limited compatibility with many
Universal Remote Controls. The rotator may
emulate a Toshiba satellite receiver. It will
normally be necessary to program the rotator
using the original remote control. The
Universal Control will usually offer the basic
f u n c t i o n s o f P o w e r a n d C h a n n e l
(programmed position) UP/DOWN.
Store Delete POWER
1 2 3
4 5 6
7 8 9
0 Recall ESC
