Antennas Direct C2 User Manual
Clearstream 2 antenna assembly

C2 -
ClearStream 2
Antenna Assembly

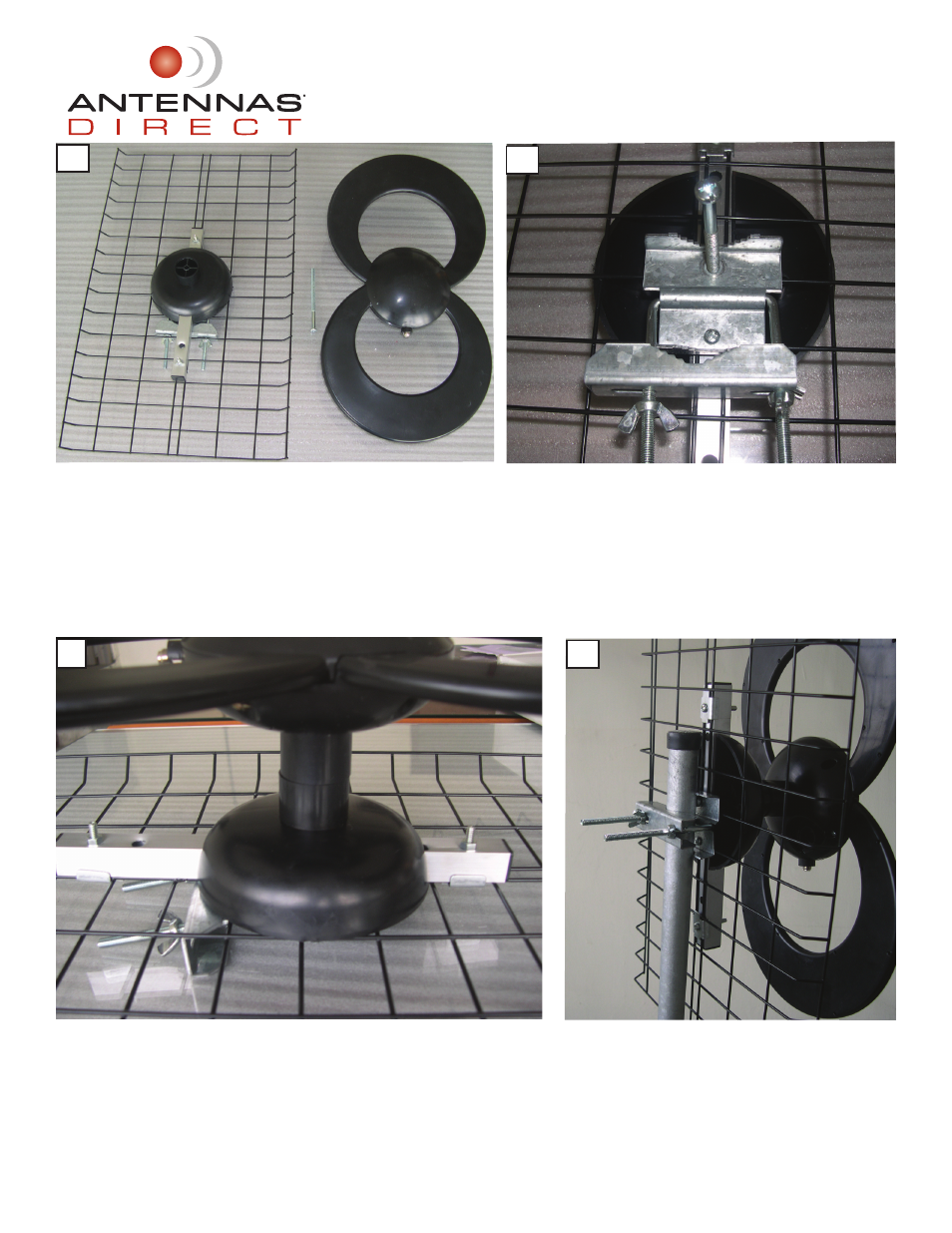

1. The ClearStream 2 antenna comes with:
• 1 reflector
• 1 set of tapered loop elements
• 75 ohm transformer (internal)
• 1 threaded bolt
• 1 adjustable mast clamp
2. Feed the supplied bolt through hole in U
clamp assembly.
2.
4. Assembly complete. Attach the C2
antenna to any kind of mast or mount
(up to 2” in diameter) with the adjustable U
bolt clamp. The 75 ohm coax connector is
in the center front.
3.
3. Align the two halves of the separating column and attach
the reflector (grid) to the antenna elements (Tapered loops)
by threading the bolt through the center of the column.
Tighten.
1.
4.
