Quick Start Assembly/Install Instructions
CLEARSTREAM 2 ™ WITH MOUNT
Before attaching the antenna to any surface, TEST RECEPTION in that area.
Connect the antenna to the TV or receiver and run a full channel scan.
If reception is not as desired move the antenna and rescan TV/receiver.
1
2
3
4
5
6
7
8
9
10
11

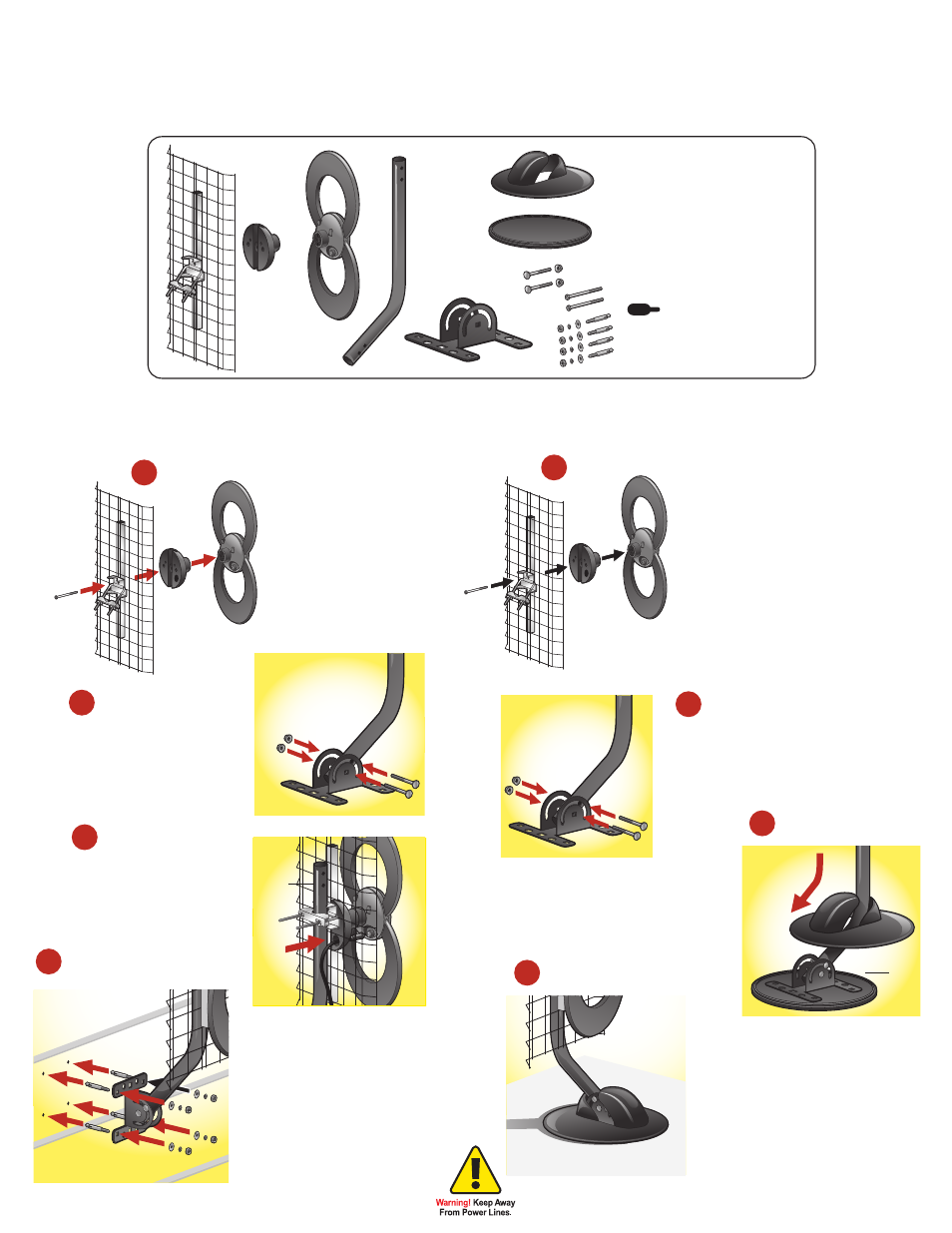

Indoor Wall / Outdoor Roof Mount
Before beginning assembly, make sure all pieces needed are present.
Tools Required: Adjustable Wrench, Power Drill, 5/16” Drill Bit
Thread coaxial cable through reflector
(1) and hole in base (2) and connect
cable to connector on back of loop
element (3). Secure reflector, base
and loop together with 3 ½” bolt.
Free-Standing Indoor Use
Before beginning assembly, make sure all pieces needed are
present. Tools Required: Adjustable Wrench
1
2
3
4
5
Place mast (4) into middle of base (5) and
secure with 2 hex bolts. Do not tighten
completely.
4
1. Reflector
2. Base
3. Loop Element
4. J Mount Mast
5. Base
6. Plastic Base Cover
7. Circular Base
8. Hex Bolts
9. 3 ½” Bolts
10. Expansion
Mounting Bolts
11. Weather Boot
Call Our HELP LINE at 877-825-5572
One of our specialists can talk you through
any problems you may have.
Install antenna on mast (4) by slipping
clamp on back of reflector (1) over
mast pipe and tighten thumb screws.
Mark base position on your surface. Adjust mast
so it is vertical and tighten nuts. Drill a 5/16” hole,
2 inches deep for each mounting bolt. Place
base over holes, insert expansion bolts and tap
into position. Then tighten nuts to secure bolt
and base to your surface.
Point antenna in direction of your TV stations’
transmission towers, connect opposite end of
coaxial cable to your TV or receiver and check
reception.
1
Thread coaxial cable through reflector (1) and
hole in base (2) and connect cable to connector
on back of loop element (3). Secure reflector,
base and loop together with 3 ½” bolt.
1
2
3
1
2
4
5
Place mast (4) into middle of base (5) and secure with
2 hex bolts. Do not tighten completely.
2
3
3
4
4
Place base (5) on flat surface. Adjust mast so it is
vertical and tighten the two nuts. Place assembled
mast and base on to circular ring base (6) and slip
plastic base cover (7) over mast and attach to
circular ring base.
5
6
7
Install antenna on mast (4) by slipping clamp on back
of reflector (1) over mast pipe and tighten thumb
screws.
Point antenna in direction of your TV stations’
transmission towers, connect the opposite end of
coaxial cable to your TV or receiver and check
reception.
