WIKA operating instructions model DIH10 13
14089810.01 03/2014 GB/D/F/E

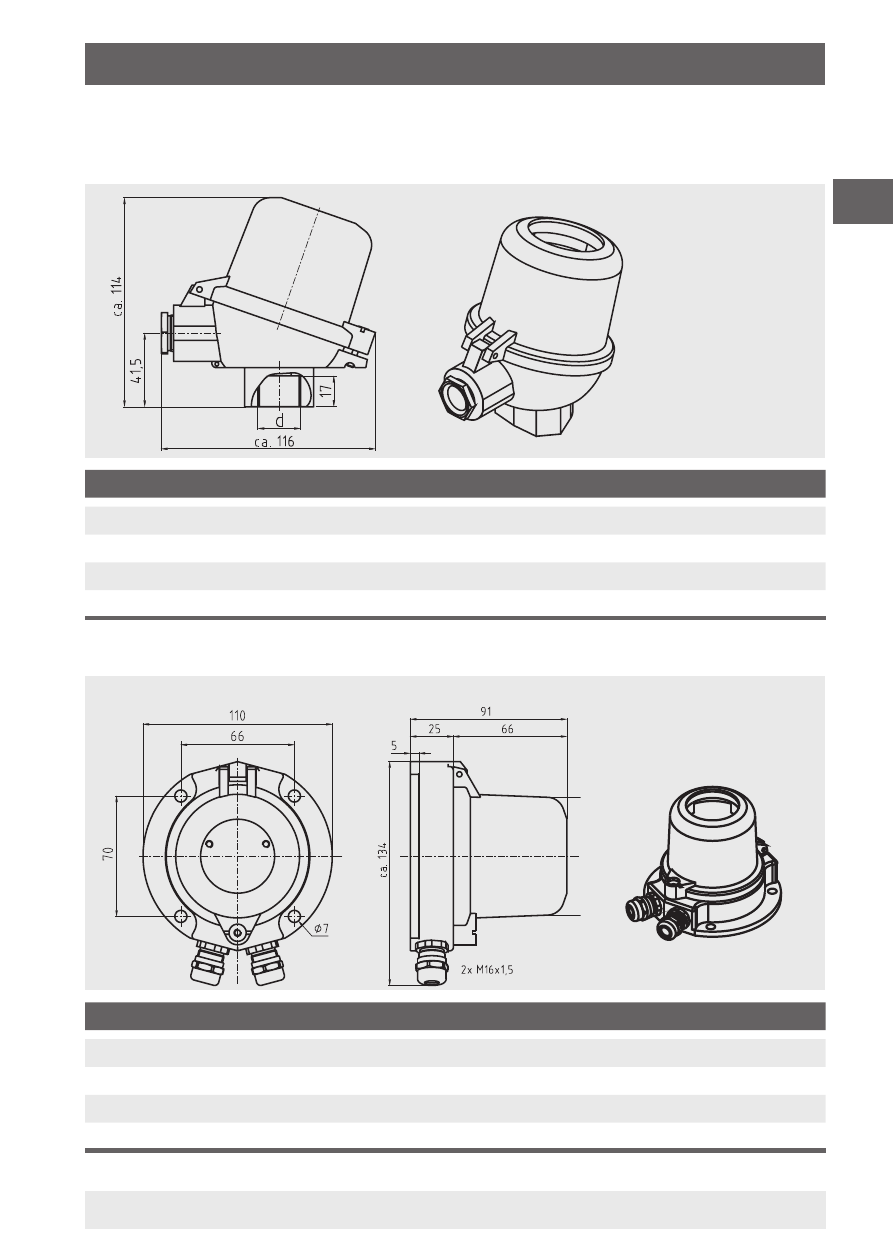

4.2 Housing designs
4.2.1 BSZ-H connection head (standard design), DIH10-Z-*A
4.2.2 Wall-mount housing, DIH10-Z-*C
Specifications Standard version
Connection to thermometer d M24 x 1.5 / ½ NPT
Material Aluminium black, lacquered 1)
Cable gland 1 x M20 x 1.5 / 1 x ½ NPT
Ingress protection IP 65 (option: IP 67)
Specifications Standard version
Material Aluminium black, lacquered 1)
Lower body Aluminium black, lacquered 1)
Cable gland 2 x M16 x 1.5
Ingress protection IP 65 (option: IP 67)
1) RAL 5022
14053621.01
14053621.01
BSZ-H upper body special version
Weight approx. 500 g
Weight approx. 350 g
4. Design and function
