Operating Instructions Temperature Indicating Controller CF1M
V1.
1
•
03/200
5
- 16 -

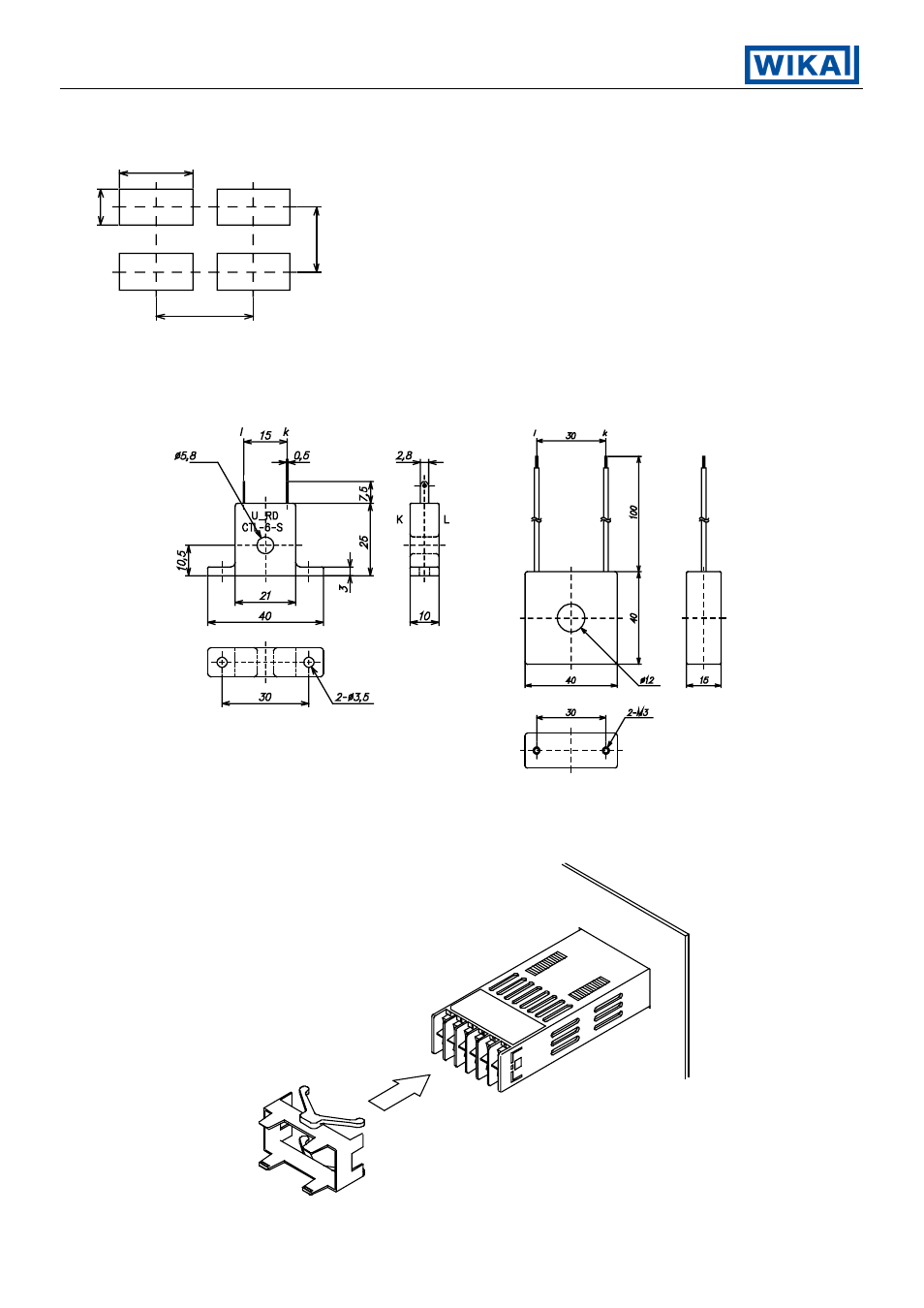

8.3 Panel cutout drawing
[Fig. 8.3-1]
8.4 CT (current transformer) dimension drawing
CTL-6-S (5A, 10A, 20A)
CTL-12-S36-10L1 (50A)
8.5 Mounting
Mounting panel thickness is from 1 to 10mm.
Insert the CF1M from the front of the panel.
Insert the mounting frame as shown in
[Fig. 8.5-1] until the four tips of
the frame touch the front panel.
[Fig. 8.5-1]
60
40
45
+0.6
0
22.2
+0.3
0
