INSTRUCTION MANUAL
NI-222E
Rev. 1 12/02
ETTORE CELLA SPA Viale de Gasperi, 48 - Casella Postale (P.O. Box) 96 - I 20010 Bareggio (MILANO) ITALY
Telefoni +39 029036.1146/7 - 029036.1237/41 - FAX +39 029036.1331 Email: [email protected]
WEATHERPROOF EXPLOSIONPROOF

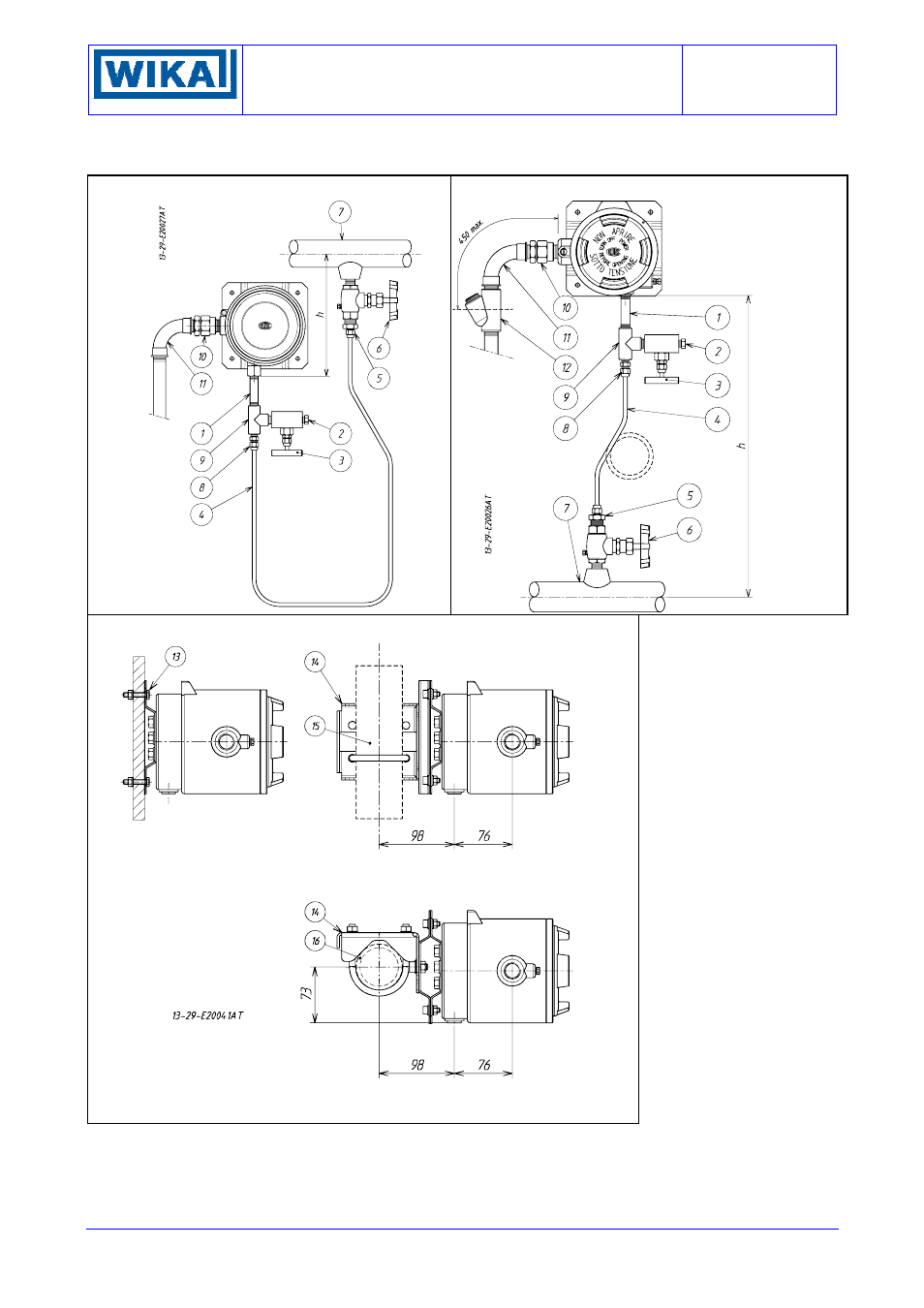

Fig. 7 - Example of connections - Fig. 8 - Example of connections -
Fig. 9 - Example of mounting -
NOTE With gas or vapour
process fluid, the instrument
must be positioned higher than
the pipe inlet (see Fig. 8). With
a liquid process fluid, the in-
strument can be positioned
higher or lower, indifferently
(see Fig. 7 and 8). In this case,
during set point calibration the
negative or positive head
must be taken into account.
(Distance h in Fig.7 and 8).
LEGEND
1 - Fitting
2 - Drain plug
3 - Service valve
4 - Piping
5 - Three piece fitting
6 - Root valve with drain
7 - Process piping
8 - Three piece fitting
9 - “T” fitting
10 - Three piece fitting
11- Curve
12 - Blocking joint
13 - M6 screws (No. 4)
14 - Bracket for 2” pipe
15 - Vertical pipe
16 - Horizontal pipe
Montaggio a parete
Montaggio su staffa per tubo 2" (palina verticale)
Montaggio su staffa per tubo 2" (palina orizzontale)
Surface mounting
2” pipe mounting (vertical pipe)
2” pipe mounting (horizontal pipe)
