Defining the TP-300FW FireWire Range Extender
5
4 Defining the TP-300FW FireWire Range Extender

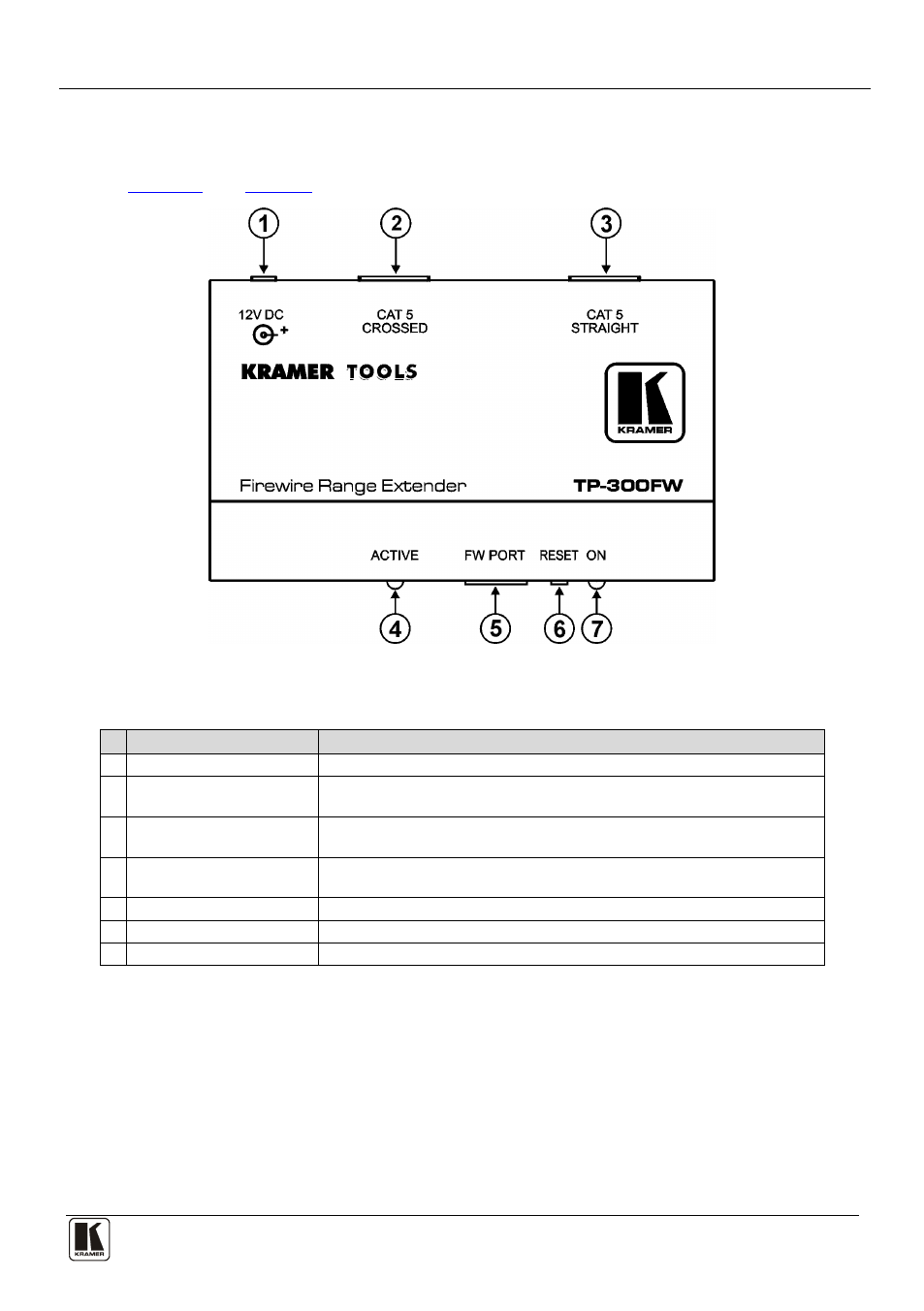

Figure 1 and Table 1 define the TP-300FW FireWire Range Extender.
Figure 1: TP-300FW FireWire Range Extender
Table 1: TP-300FW FireWire Range Extender Features
# Feature Function
1 12V DC +12V DC connector for powering the unit, center pin positive
2 CAT 5 CROSSED RJ-45
Connector
Connects to the CAT 5 STRAIGHT connector on another TP-300FW
unit
3 CAT 5 STRAIGHT RJ-45
Connector
Connects to the CAT 5 CROSSED connector on another TP-300FW unit
4 ACTIVE LED Lights green when a powered and fully functioning FireWire device is
connected
5 FW PORT Connects to the FireWire device
6 RESET Button Reboots the unit (without having to disconnect and reconnect the power)
7 ON LED Lights red the unit is powered on
