4 PT-1C - Overview
3 Overview
The PT-1C is an EDID processor for HDMI signals. It allows you to pass or block
HDCP, deep audio or deep color signals that may or may not be compatible with
the display.
The PT-1C features:

A maximum data rate of 10.2Gbps (3.4Gbps per data channel)

Compliance to HDMI and HDCP standards

HDMI input and output connectors

Power taken from the HDMI line; no power supply is needed

A power LED that indicates power to the unit

Four program DIP-switches that control the desired functions

The ultra-compact PicoTools case that allows four units to be mounted side-
by-side in a 1U rack space with the optional RK- 4PT 19” rack adapter
3.1 Defining the PT-1C EDID Processor
This section defines the PT-1C.

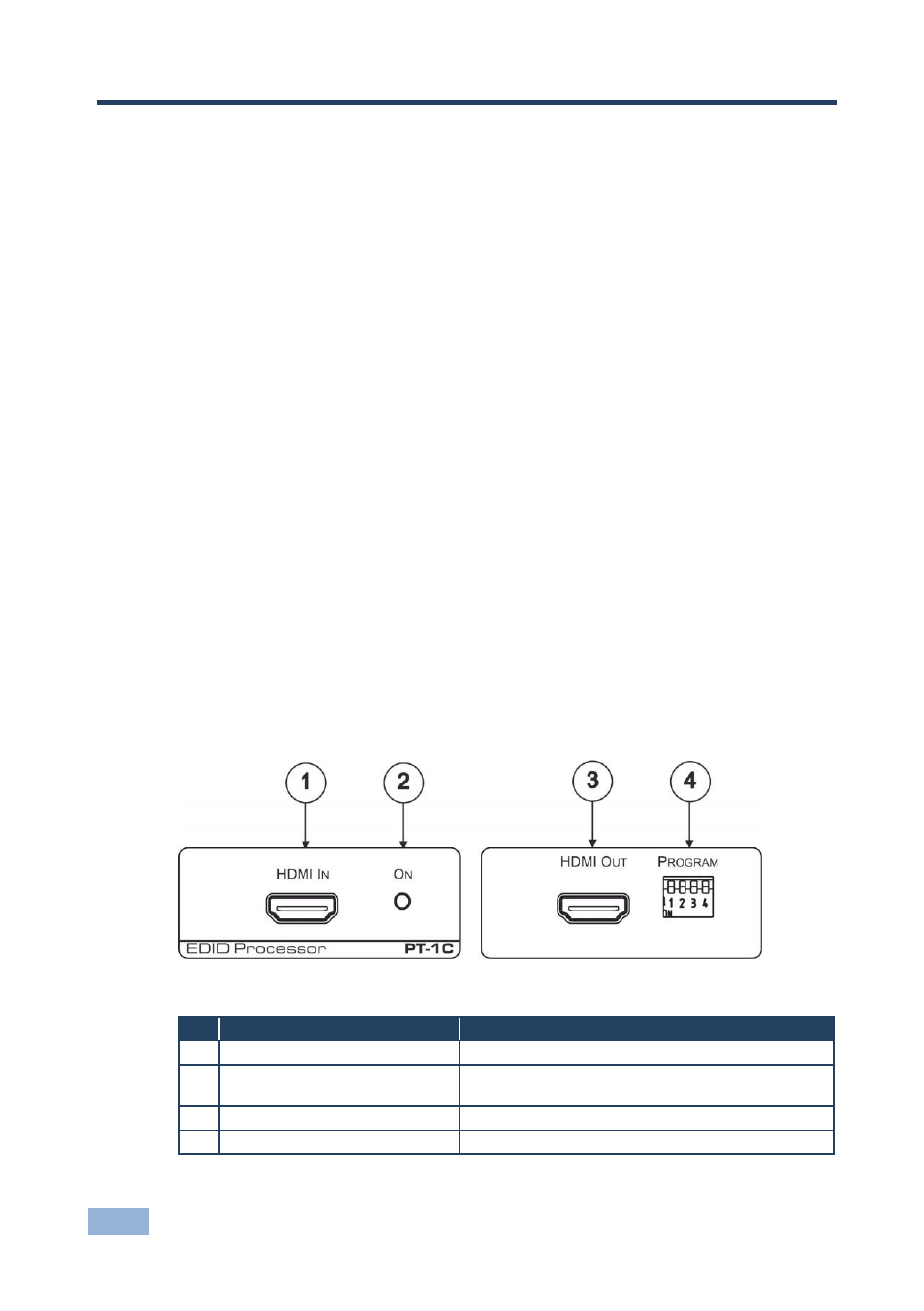

Figure 1: PT-1C EDID Processor
# Feature Function
1 HDMI IN Connector Connects to an HDMI source
2 ON LED Lights when an HDMI source and acceptor are
connected
3 HDMI OUT Connector Connects to an HDMI acceptor
4 PROGRAM DIP-Switches Set switches to choose an EDID
