Connecting a PT-101H HDMI Repeater
5
5
5 Connecting a PT-101H HDMI Repeater
To connect the PT-101H, as illustrated in the example in Figure 2, do the
following:
1. Connect the HDMI source (for example, a blu-ray DVD player) to the
INPUT connector.
2. Connect the OUTPUT connector to an HDMI acceptor (for example, an
HDMI display).
3. Connect the 12V DC power adapter to the power socket on the
PT-101H and connect the adapter to the mains electricity.
The PT-101H can be powered from the HDMI source, but for maximum
performance we recommend using the power supply (supplied).

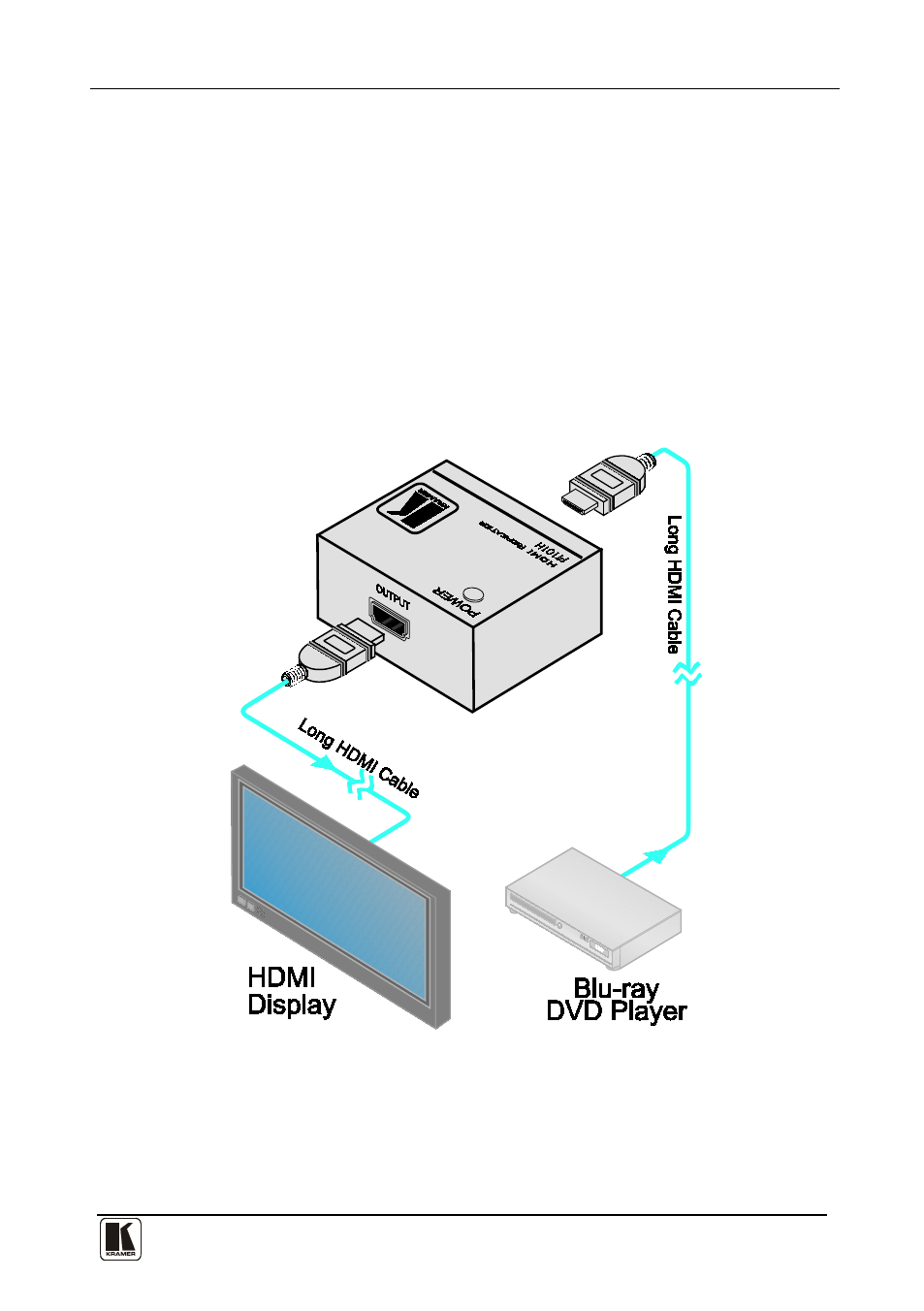

Figure 2: Connecting the PT-101H HDMI Repeater
