Your PT-101H HDMI Repeater
4
4 Your PT-101H HDMI Repeater
Figure 1 and Table 1 define the PT-101H HDMI Repeater:

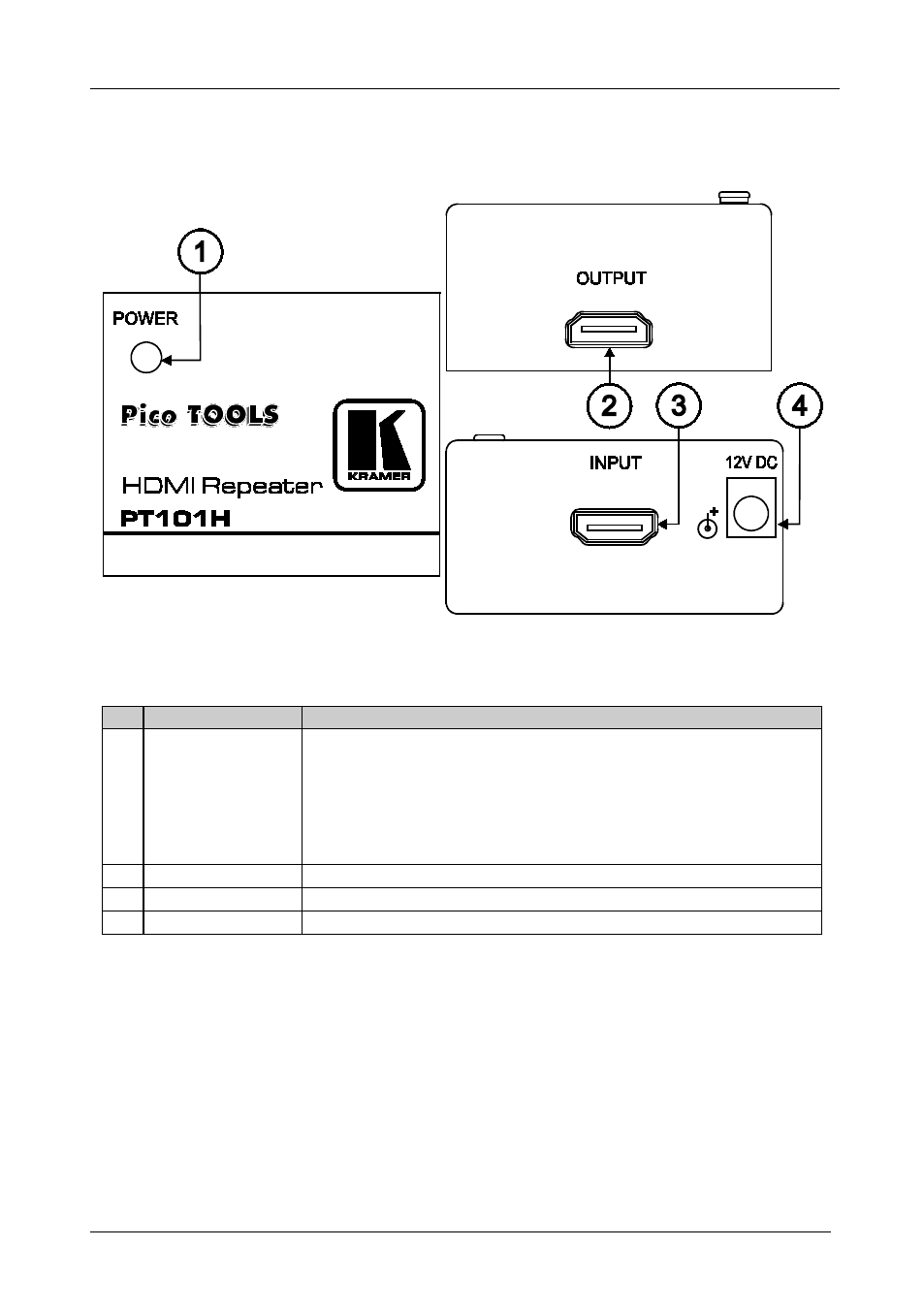

Figure 1: PT-101H HDMI Repeater
Table 1: PT-101H HDMI Repeater Features
# Feature Function
1 POWER LED Illuminates when receiving power. The POWER LED is colored:
Green, when the 12V DC power source is connected but no input signal is
received
Red, when an input signal is received and the 12V DC power source is
disconnected
Orange when both the 12V DC power source is connected and an input
signal is received
2 OUTPUT Connector Connect to the HDMI acceptor
3 INPUT Connector Connect to the HDMI source
4 12V DC +12V DC connector for powering the unit
