Defining the 713/714 Video-Audio Line Transmitter/Receiver

4.2 Defining the 714 Video-Audio Line Receiver

Figure 2

and

Table 2

define the front and rear panels of the 714 Video-Audio Line

Receiver.

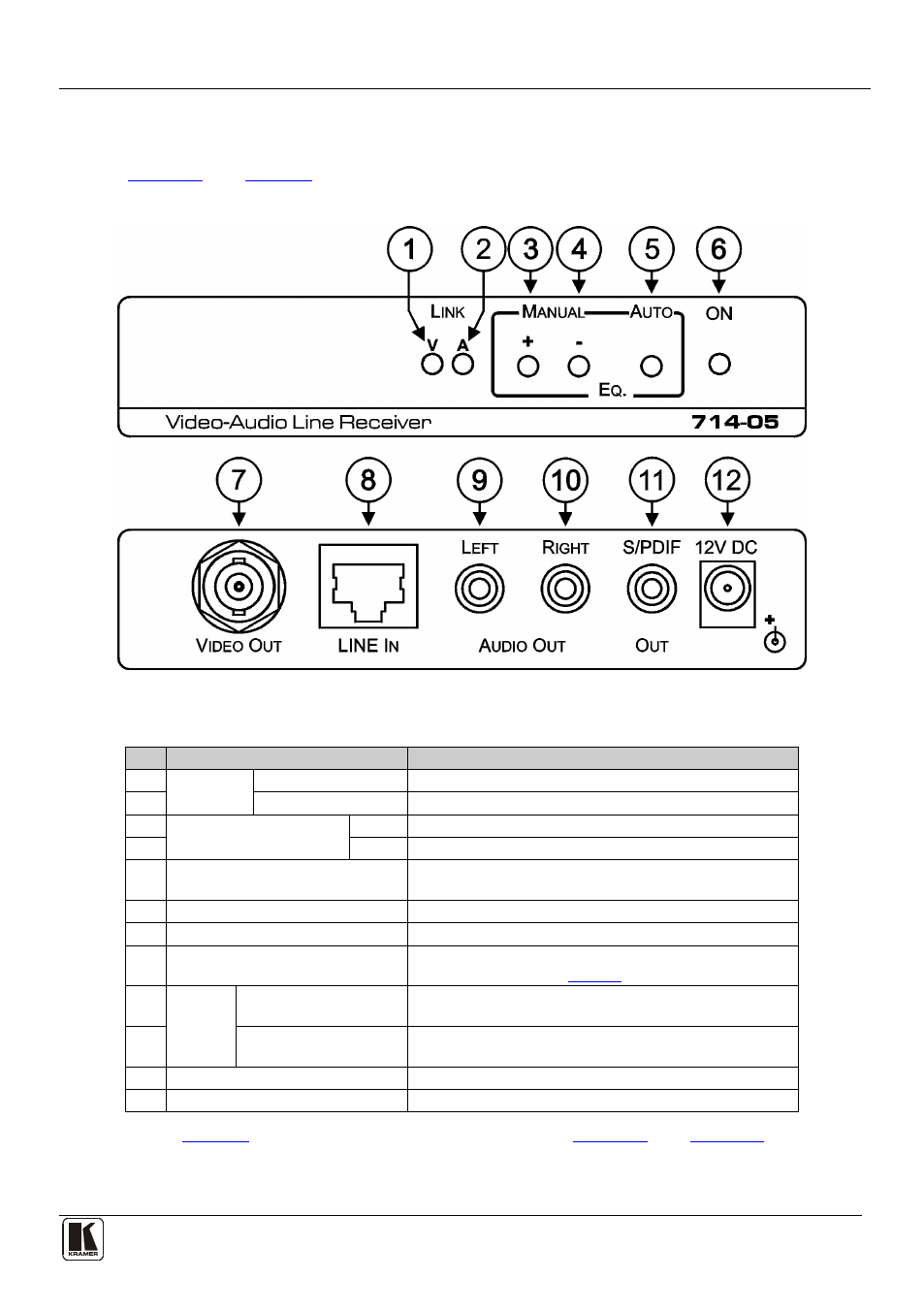

Figure 2: 714-05 Front and Rear Panels

Table 2: 714-05/714-10/714-15 Front and Rear Panel Features

Feature

Function

LINK LED

V LED

Lights green when video link from the

713 is established

A LED

Lights green when audio link from the

713 is established

MANUAL EQ. Buttons

Press to increase the signal equalization

–

Press to decrease the signal equalization

AUTO EQ. Button

Press to reboot the device and set the equalization

automatically

ON LED

Lights green when the unit is powered on

VIDEO OUT BNC Connector

Connect to the composite video acceptor

LINE IN RJ-45 Connector

Connect to the LINE OUT RJ-45 connector on the

713

using CAT 5 cable (see

Figure 1

)

AUDIO

OUT

LEFT RCA Connector

Connect to the left channel of the unbalanced stereo audio

acceptor

RIGHT RCA Connector Connect to the right channel of the unbalanced stereo

audio acceptor

11 S/PDIF OUT RCA Connector

Connect to the digital audio S/PDIF acceptor

12 12V DC Connector

Connect to the supplied power adapter, center pin positive

Note:

Table 2

also applies to the models shown in

Figure 3

and

Figure 4
