6 711N, 712N - Defining the 711N/712N Video-Audio Line Transmitter/Receiver
4.2 Your 712N Video-Audio Line Receiver

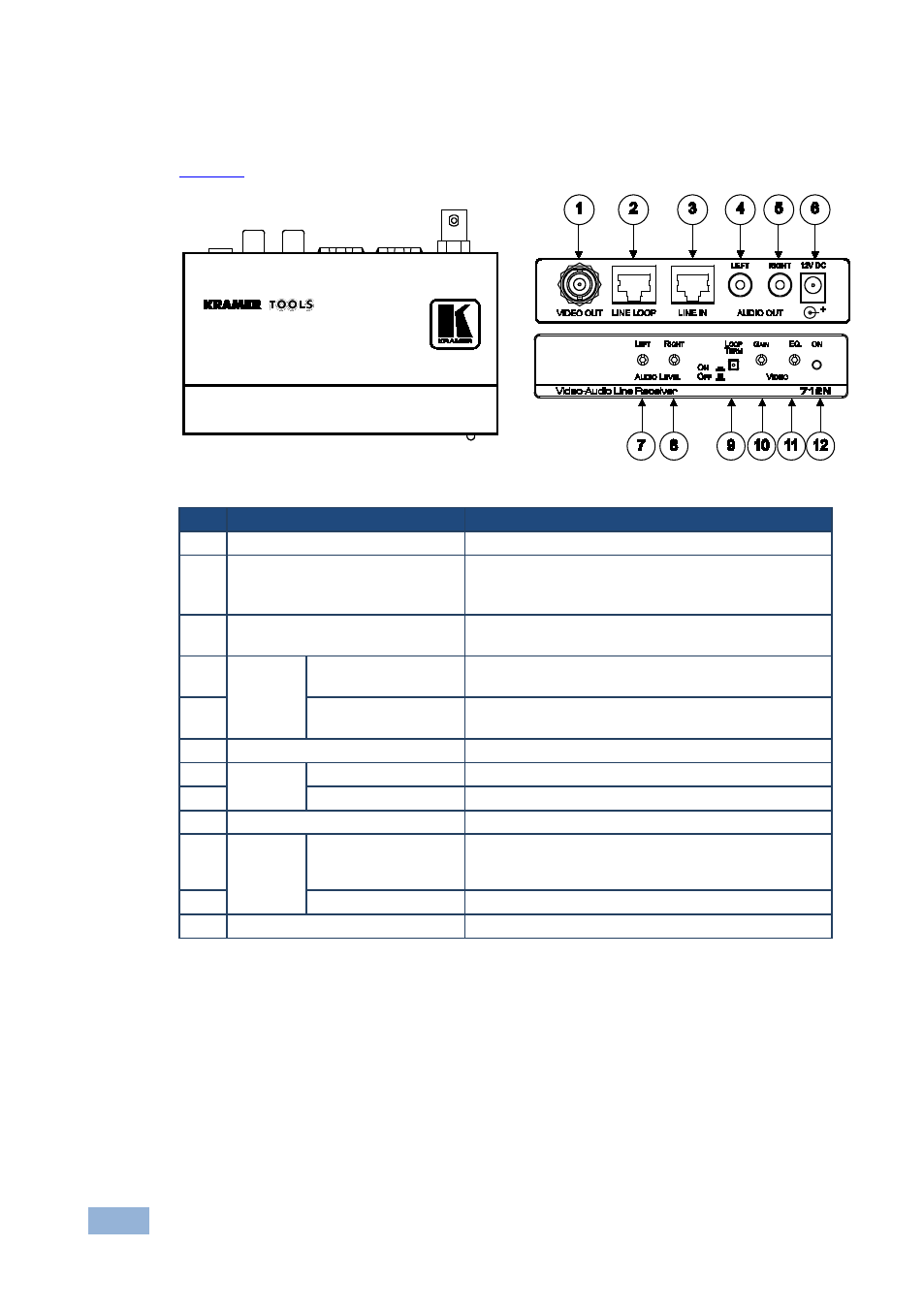

Figure 2 defines the 712N Video-Audio Line Receiver:
Figure 2: 712N Video-Audio Line Receiver
# Feature Function
1 VIDEO OUT BNC Connector Connect to the composite video acceptor
2 LINE LOOP CAT 5 Connector Connect to the LINE IN RJ-45 connector of an
additional receiver to increase the number of
outputs
3 LINE IN CAT 5 Connector Connect to the LINE OUT RJ-45 connector of the
711N
4
AUDIO
OUT
LEFT RCA
Connector
Connect to the left unbalanced stereo audio
acceptor
5 RIGHT RCA
Connector
Connect to the right unbalanced stereo audio
acceptor
6 12V DC +12V DC connector for powering the unit
7
AUDIO
LEVEL
LEFT Trimmer Turn to adjust the left audio signal level
8 RIGHT Trimmer Turn to adjust the right audio signal level
9 LOOP TERM Push Button When pressed in, terminates unit (not looped)
10
VIDEO
GAIN Trimmer Turn to adjust the output video signal level
Insert a screwdriver into the hole and carefully rotate it, to
trim the level
11 EQ. Trimmer Turn to adjust the output video signal equalization
12 ON LED Lights when receiving power
