690T, 690R - Overview 5
5
3.1 Defining the 690T and the 690R SDI Fiber Optic
Transmitter and Receiver

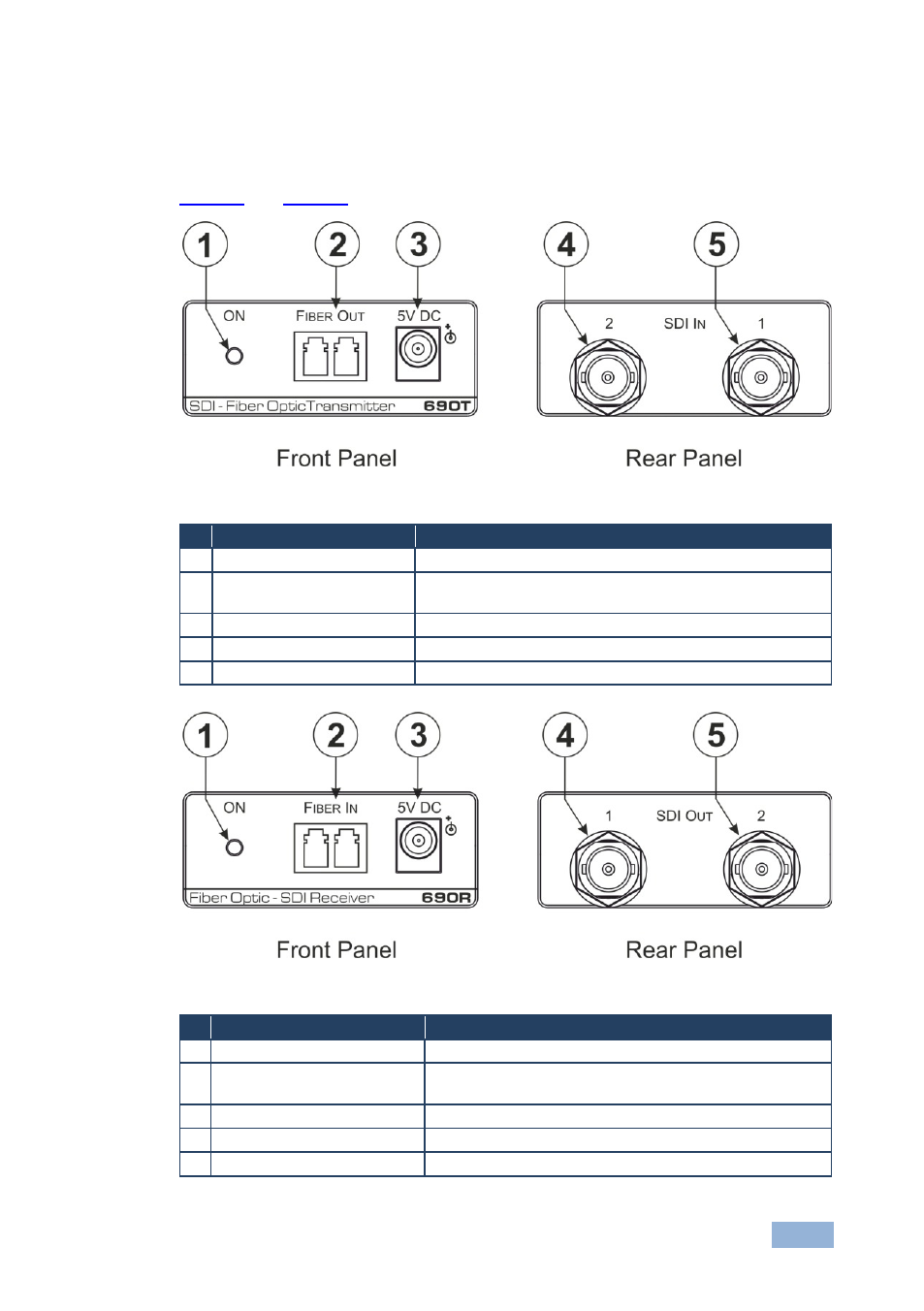

Figure 1 and Figure 2 define the 690T and 690R, respectively.
Figure 1: 690T SDI Fiber Optic Transmitter Front and Rear Panels
# Feature Function
1 ON LED Illuminates when receiving power
2 F IBER O UT Dual SFP
Connector
Connects to the dual optical connector on the 690R via
dual single mode cable
3 5V DC Connector Connect to the power adapter
4 SDI I N 2 BNC Connector Connect to the SDI source 2
5 SDI I N 1 BNC Connector Connect to the SDI source 1
Figure 2: 690R SDI Fiber Optic Receiver Front and Rear Panels
# Feature Function
1 ON LED Illuminates when receiving power
2 F IBER I N Dual SFP
Connector
Connects to the dual optical connector on the 690T via
dual single mode cable
3 5V DC Connector Connect to the power adapter
4 SDI O UT 1 BNC Connector Connect to the SDI acceptor 1
5 SDI O UT 2 BNC Connector Connect to the SDI acceptor 2
