672T, 672R - Overview 5
3.1.1 Your 672T UXGA Audio Optical Transmitter

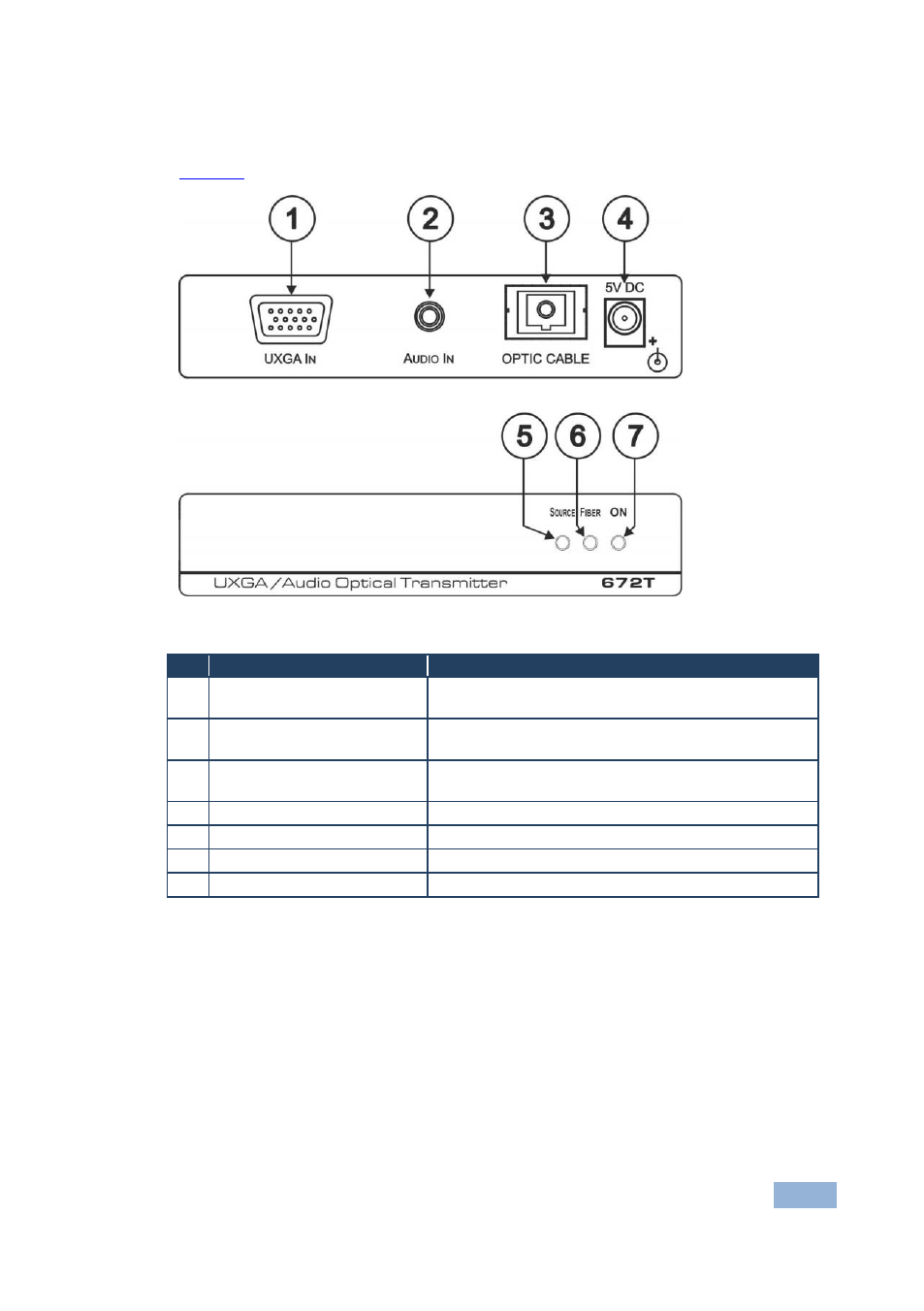

Figure 1 defines the 672T UXGA Audio Optical Transmitter:
Figure 1: 672T DVI Optical Transmitter
# Feature Function
1 UXGA IN 15-pin HD
Connector Connects to the computer graphics source
2 AUDIO IN 3.5mm Mini Jack
Connector Connects to an unbalanced stereo audio source
3 OPTIC CABLE Connector Connects to the optical connector on the 672R (before
use remove the dust cap cover)
4 5V DC +5V DC connector for powering the unit
5 SOURCE LED Lights when a source is connected
6 FIBER LED Lights when the fiber optic cable is connected
7 ON LED Illuminates when receiving power
