670T, 670RN - Overview 5
3.1.1 Your 670T HDMI Optical Transmitter

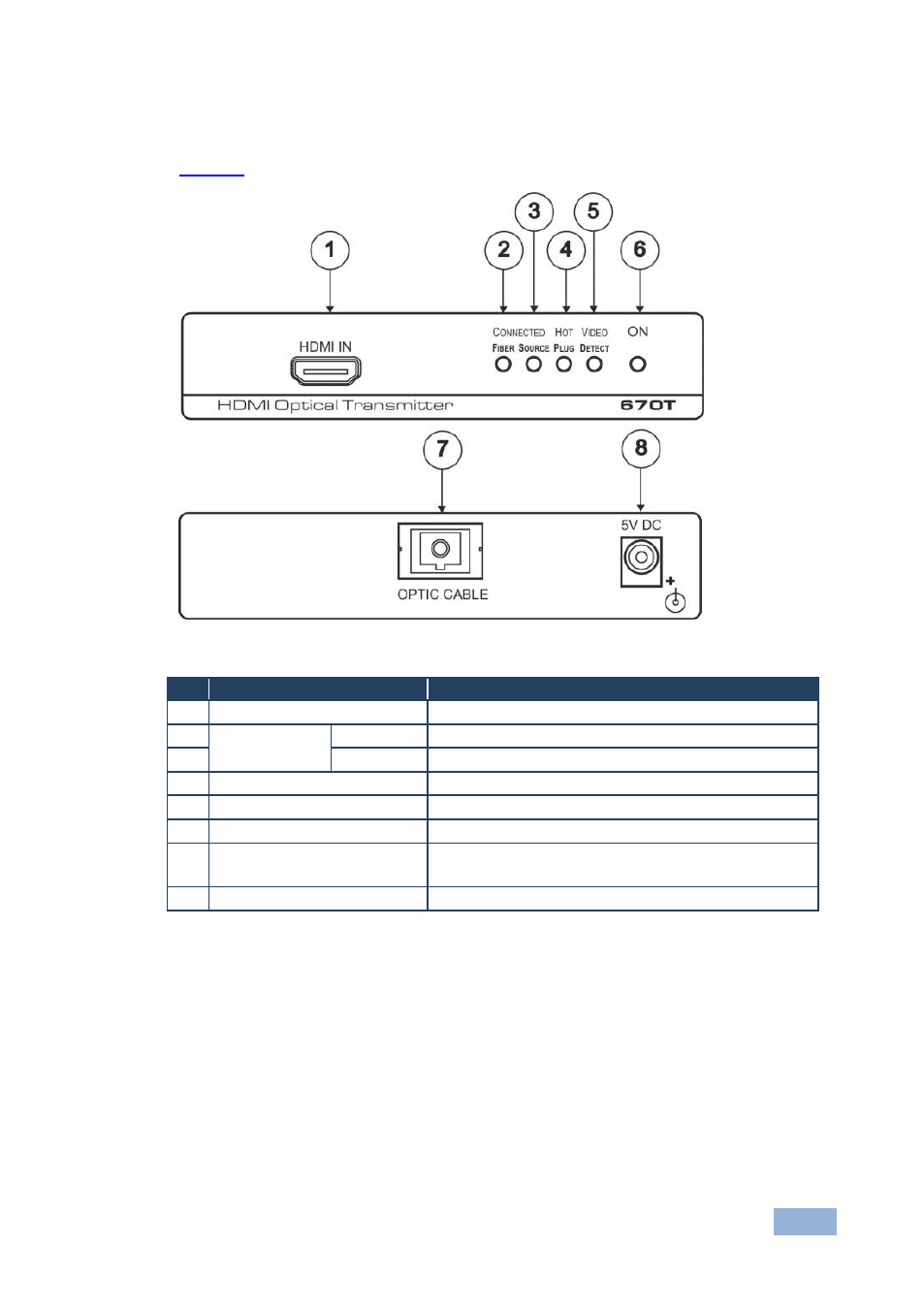

Figure 1 defines the 670T HDMI Optical Transmitter:
Figure 1: 670T HDMI Optical Transmitter
# Feature Function
1 HDMI IN Connector Connects to the HDMI source
2 CONNECTED
LEDs FIBER Illuminates when the fiber optic cable is connected
3 SOURCE Illuminates when a source is connected
4 HOT PLUG LED Indicates a connected display on the receiver side
5 VIDEO DETECT LED Indicates a valid video signal on the transmitter side
6 ON LED Illuminates when receiving power
7 OPTIC CABLE Connector Connect to the optical connector on the 670RN
(remove dust cap prior to use)
8 5V DC +5V DC connector for powering the unit
