Using the 648 FireWire 800/1394b Optical Repeater
8
5.2 Using the 648 to Connect Other Peripheral Devices
You can connect various peripheral devices, such as surveillance cameras, as
illustrated in Figure 4:
Top Side Panel
Lower Side Panel
Top Side Panel
Lower Side Panel
Top Side Panel
Lower Side Panel
Top Side Panel
Lower Side Panel
Optical Cable
up to 500m
Optical Cable
up to 500m
Fi
re
W
ire
C
ab
le
up
to
4
.5
m
Host Computer
Surveillance
Camera
Surveillance
Camera
Surveillance
Camera
Surveillance
Camera

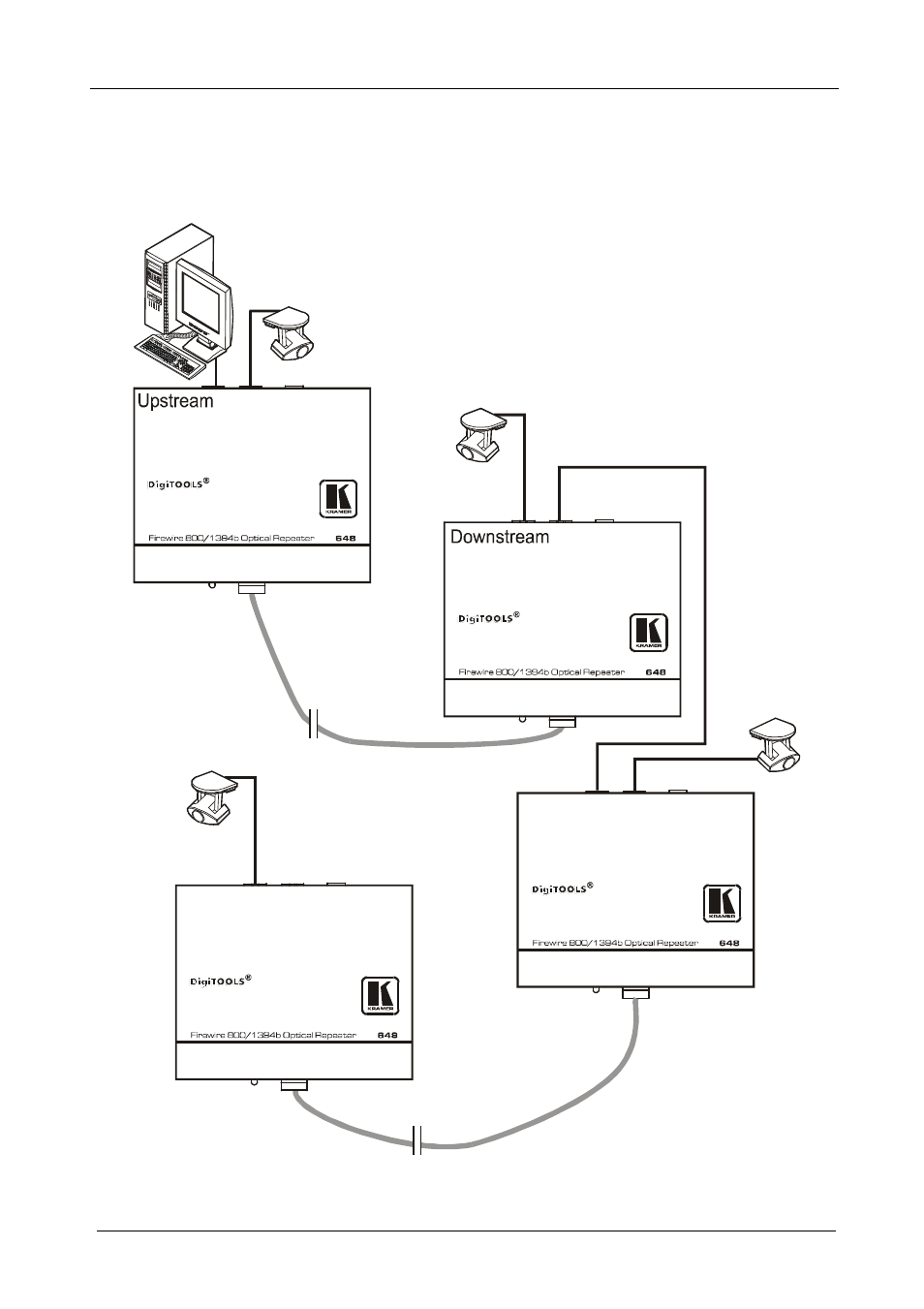

Figure 4: Connecting the 648 FireWire 800/1394b Optical Repeater to Surveillance Cameras
