622T, 622R - Defining the 622T, 622R Dual Link DVI Optical Transmitter/Receiver 7
4.2 Defining the 622R Dual Link DVI Optical Receiver

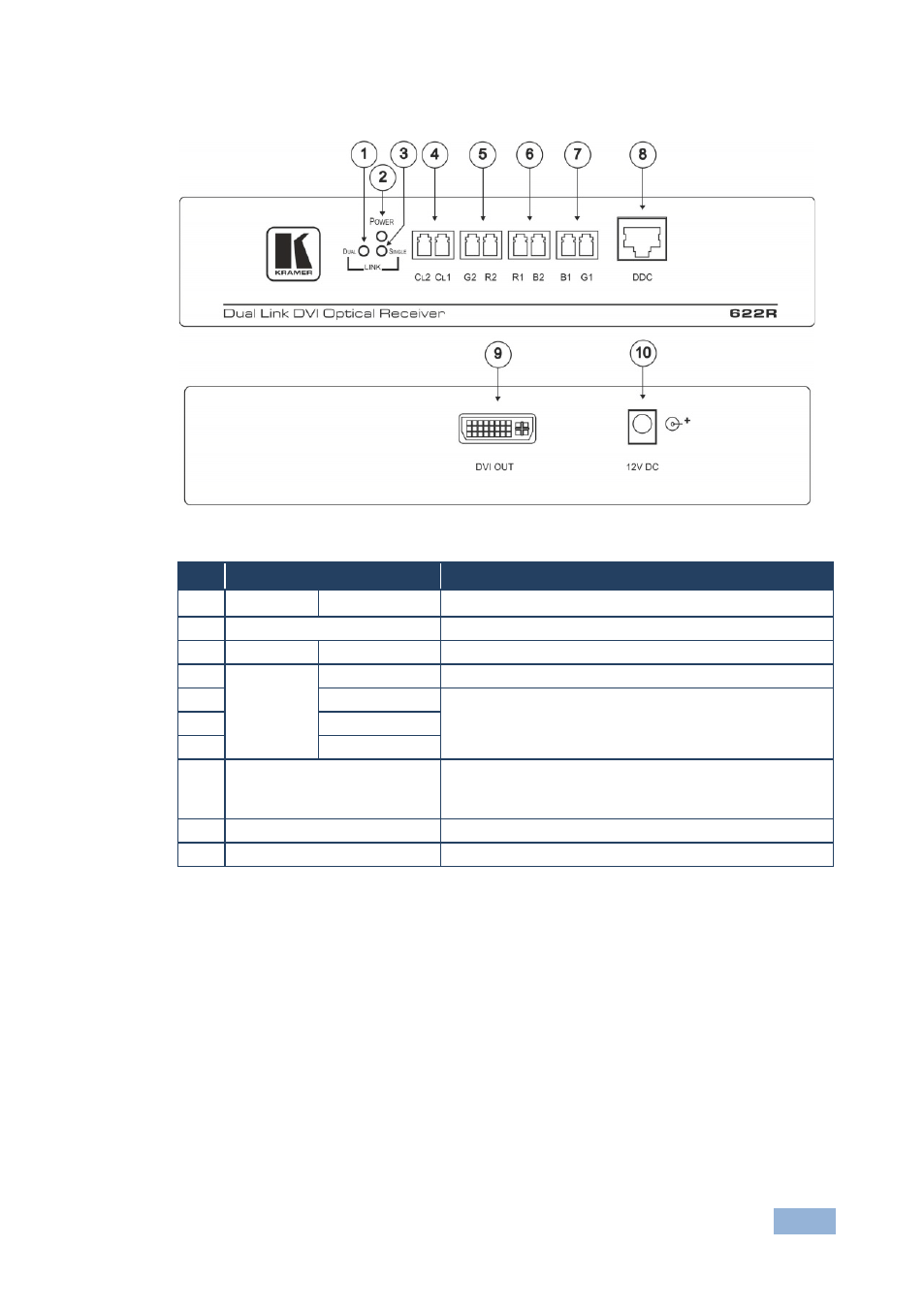

Figure 2: 622R Dual Link DVI Optical Receiver
# Feature Function
1 LINK DUAL LED Lights when the second link is present
2 POWER LED Illuminates when receiving power
3 LINK SINGLE LED Lights when the first link is present
4
Optic
Cables
CL1 CL2 Connects to the clock connectors on the 622T
5 R2 G2
Connect to the optic connectors on the 622T 6 B2 R1
7 G1 B1
8 DDC CAT 5 Connector Connects to the DDC RJ-45 connector on the 622T
using a UTP CAT 5 cable with RJ-45 connectors at
both ends
9 DVI OUT Connector Connects to the DVI acceptor
10 12V DC 12V DC connector for powering up the unit
