Page 8
613T, 613R - Overview
5
3.1
Defining the 613T, 613R 3G HD-SDI Mini Optical
Transmitter/Receiver
This section defines the 613T, 613R.

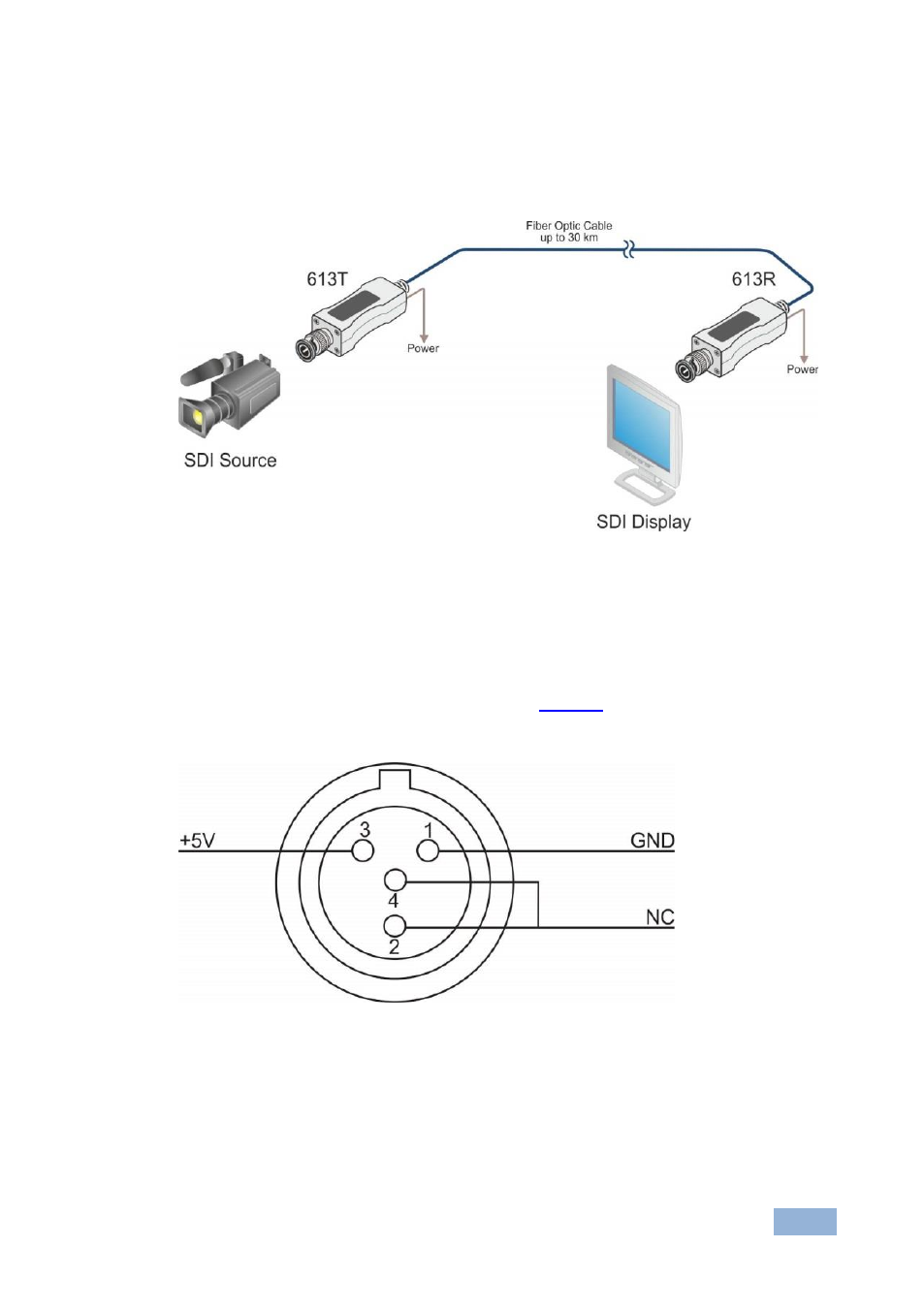

Figure 1: 613T, 613R 3G HD-SDI Mini Optical Transmitter/Receiver
3.2
Powering the 613T, 613R
Your 613T/613R pair comes with two 5V DC power adapters. Both units need to
be connected to their external power adapter.
connector pinout:
Figure 2: Power Connector Pinout
