4 611T, 611R - Overview
3 Overview
The 611T and 611R are a high-performance fiber optic transmitter and receiver for
composite video signals. The 611T transmitter converts a composite video signal
into a fiber optic signal and the 611R receiver converts the fiber optic signal back
into a composite video signal.
More specifically, the 611T, 611R feature:
• 55MHz (-3dB) bandwidth
• Level (gain) and EQ (peaking) controls
• A range of 5km (3.1mi) using multi-mode fiber optic cable
3.1 Defining the 611T, 611R Fiber Optic Transmitter/Receiver
This section defines the 611T, 611R. Figure 1 defines the 611T transmitter and
Figure 2 defines the 611R receiver.

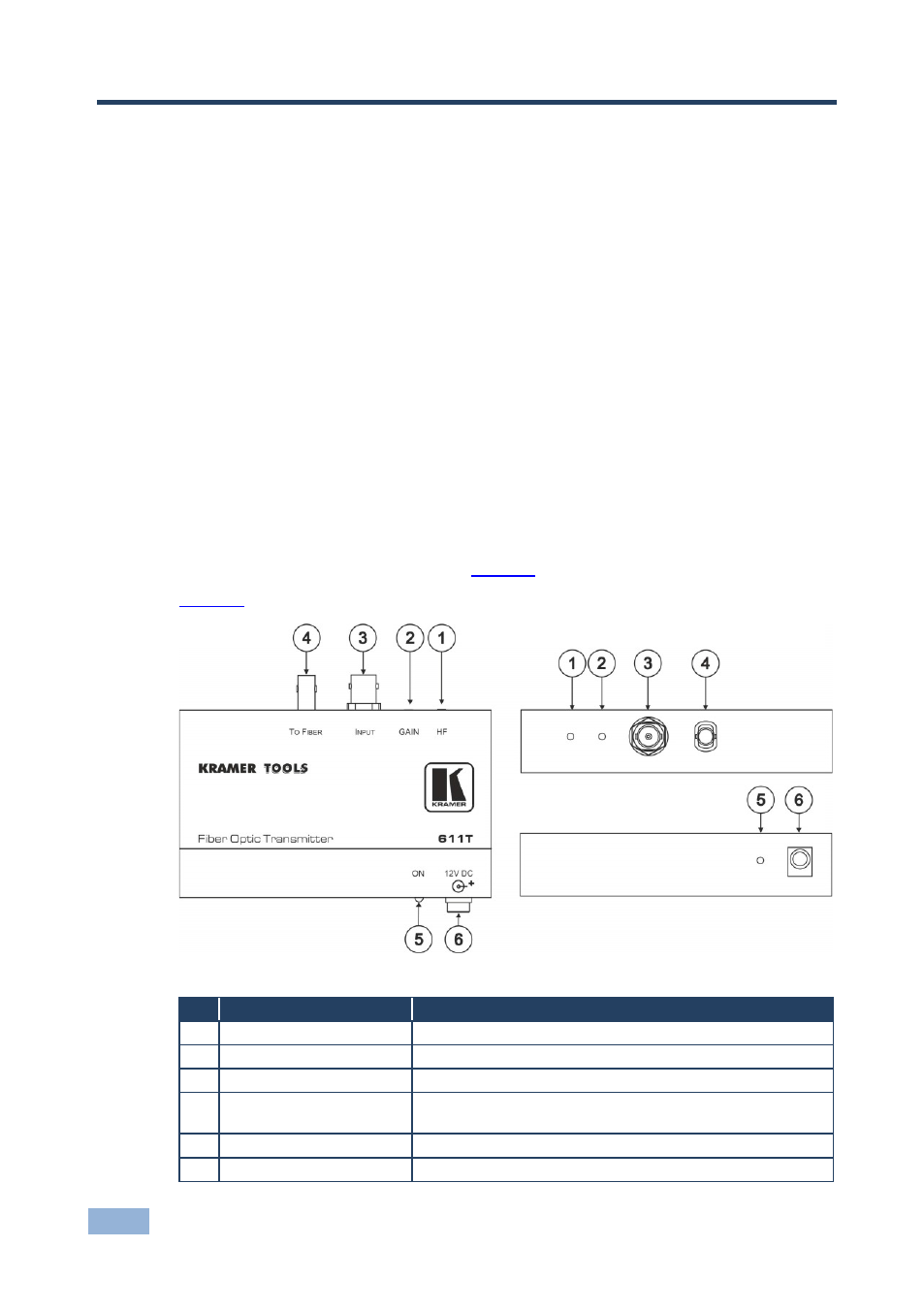

Figure 1: 611T Fiber Optic Transmitter
# Feature Function
1 HF Trimmer Cable compensation (high frequency) control trimmer
2 GAIN Trimmer Video level control trimmer
3 INPUT BNC Connector Connects to a composite video source
4 TO FIBER Connector “ST” type connector outputting the converted video signal to
the optical fiber
5 ON LED Illuminates when the unit is powered ON
6 12V DC Power Connector Connects to the power supply to supply power to the unit
