4 FC-31xl - Overview
3.1 Defining the FC-31xl UXGA to DVI Converter
This section defines the FC-31xl.

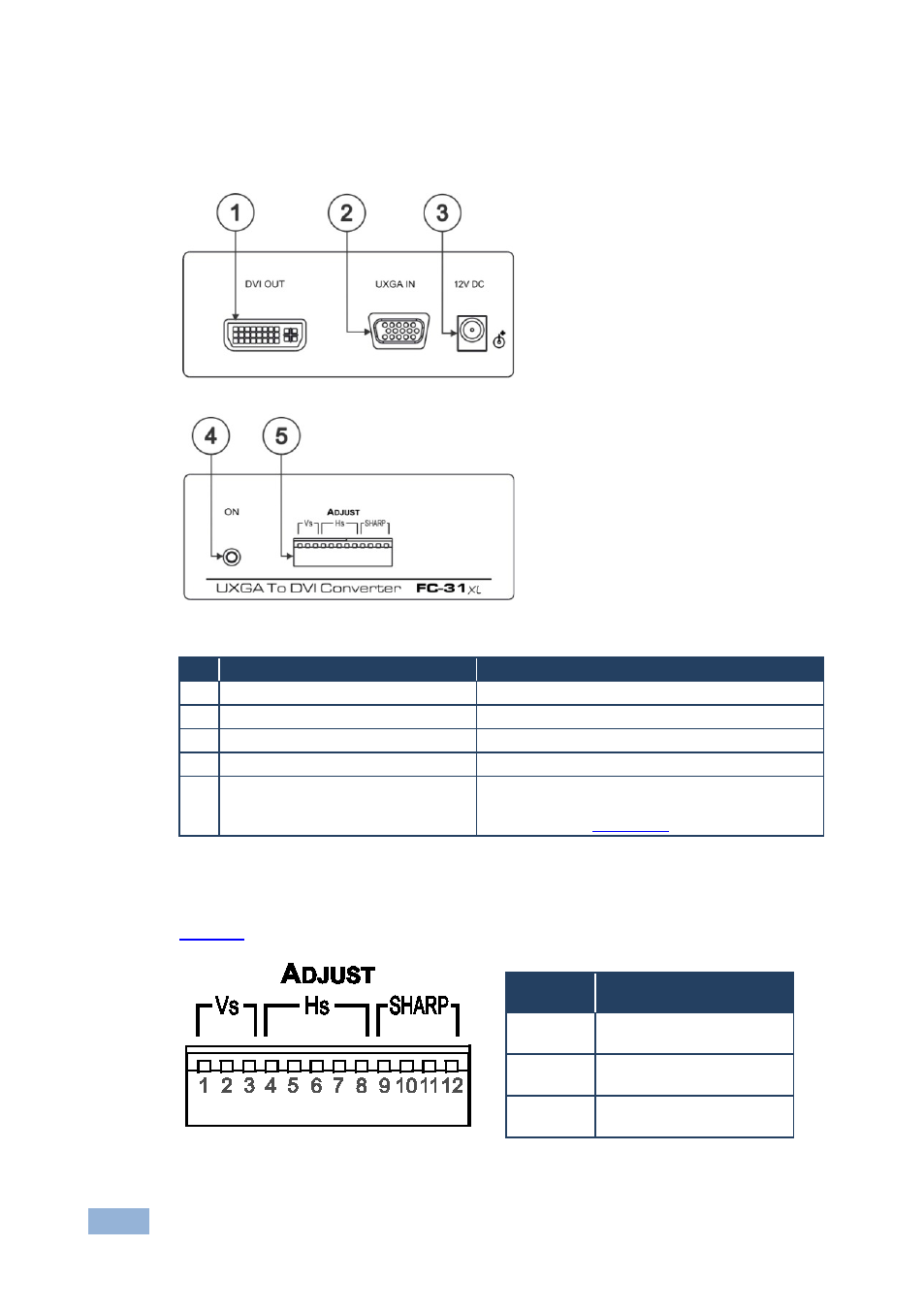

Figure 1: FC-31xl UXGA to DVI Converter
# Feature Function
1 DVI OUT Connector Connects to the DVI acceptor
2 UXGA IN 15-pin HD Connector Connects to the computer graphics source
3 12V DC +12V DC connector for powering the unit
4 ON LED Illuminates when receiving power
5 ADJUST DIP-switches Set to adjust the vertical and/or horizontal
position on the screen, and/or the sharpness of
the picture (see
Section 3.2
3.2 DIP-Switch Settings
)
Figure 2 defines the DIP-switches.
Figure 2: DIP-switch Definitions
DIP-
Switches Set to adjust the:
1 to 3 (Vs) Vertical position on
the screen
4 to 8 (Hs) Horizontal position on
the screen
9 to 12 (SHARP) Sharpness of the
