4 Connecting the FC-31xl
Always switch off the power to each device before connecting it to your
FC-31xl. After connecting your FC-31xl, connect its power and then
switch on the power to each device.
To connect your FC-31xl UXGA to DVI Converter, as the example in
Figure 3 illustrates, do the following:
1. Connect a computer graphics source (for example, a computer) to the UXGA
IN connector.
2. Connect the DVI OUT connector to a DVI projector.
3. Connect the 12V DC power adapter (wall transformer) to the 12V DC socket
and connect the transformer to the mains electricity (not shown in Figure 3 ).

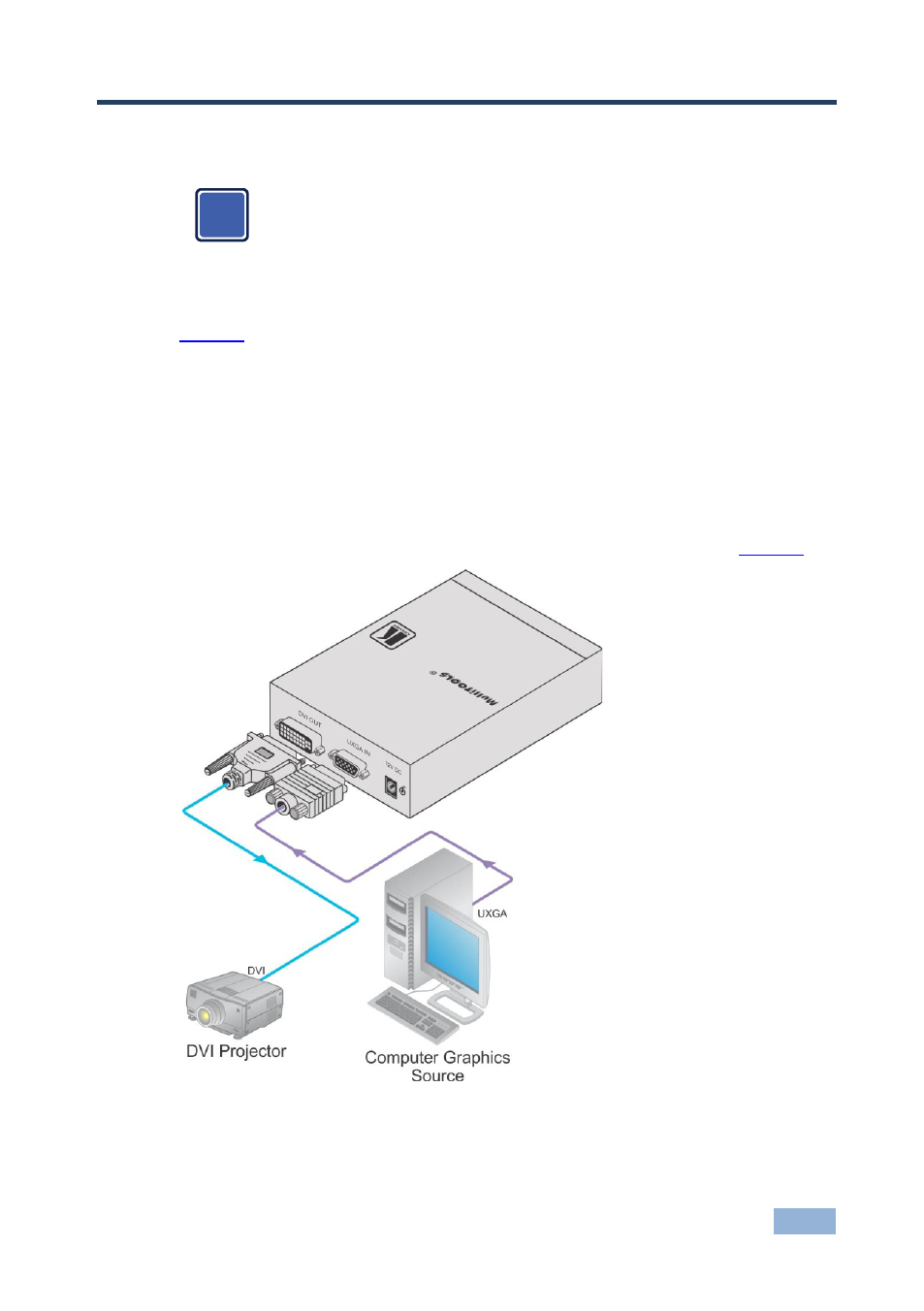

Figure 3: Connecting the FC-31xl UXGA to DVI Converter
