Page 6
KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your 7408 SDI to Analog Converter
4

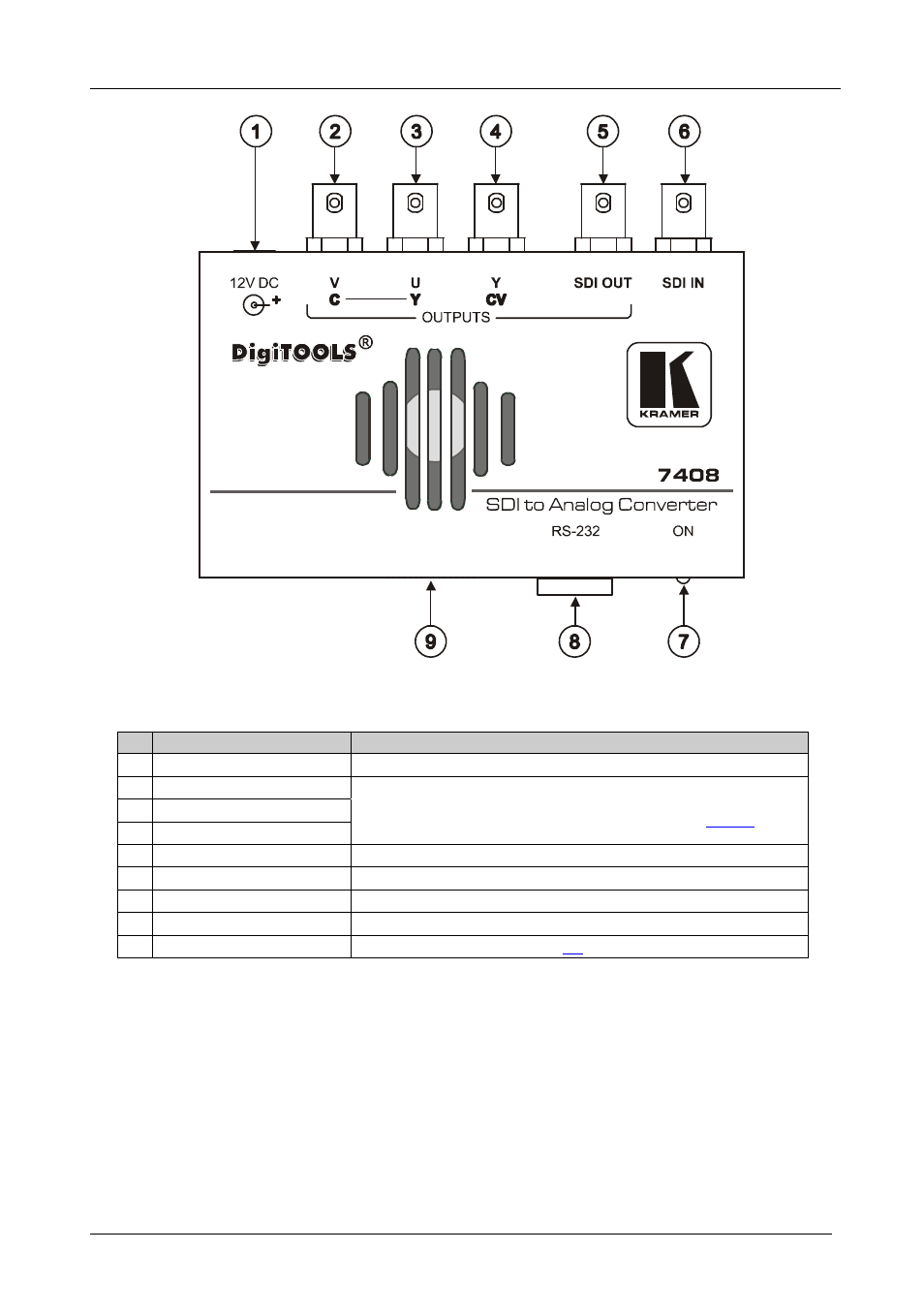

Figure 1: 7408 SDI to Analog Converter
Table 1: 7408 SDI to Analog Converter
#
Feature
Function
1 12V DC
+12V DC connector for powering the unit
2 V / C BNC connector
Connect to: component video or composite video and/or s-Video
acceptors (according to DIP-switch selection
− see
)
3 U / Y BNC connector
4 Y / CV
5 SDI OUT BNC Connector
Connects to the reclocked and equalized SDI acceptor
6 SDI IN BNC Connector
Connects to the SDI source
7 ON LED
Illuminates when receiving power
8 RS-232 Port
Connects to the PC or the remote controller
9 DIP-switches
To setup the unit (see section
)
CO
M
P
O
N
ENT
AU
T
O
PA
L
NT
S
C
4x
O
S
PE
D
E
S
T
A
L
VB
I
PR
O
G
R
A
M
