Your Digital Audio Transcoder
3

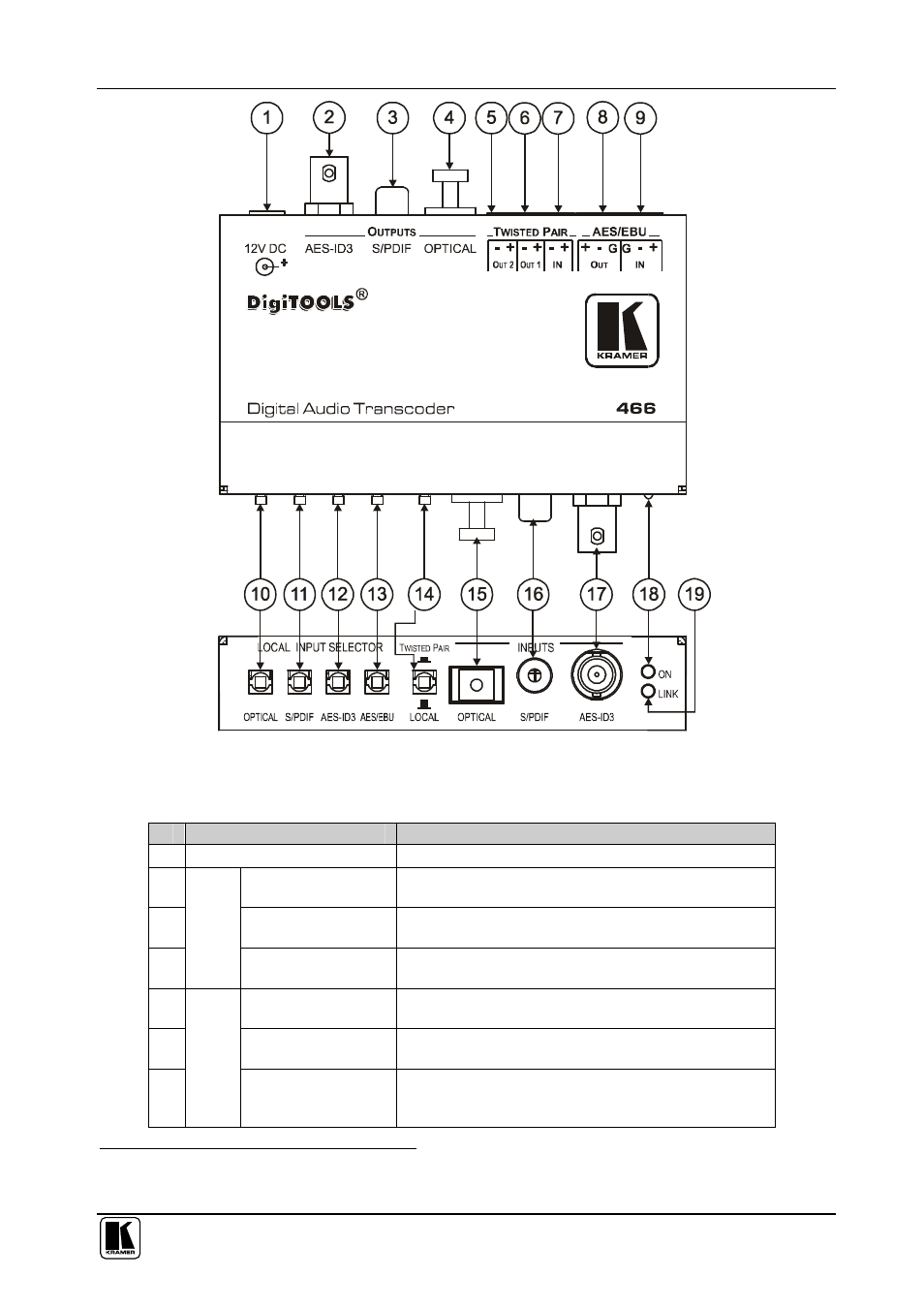

Figure 1: 466 Digital Audio Transcoder
Table 1: Features and Functions of the Digital Audio Transcoder
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 AES-ID3 BNC
Connector
Connect to the digital audio acceptor (75 )
3 S/PDIF RCA
Connector
Connect to the digital audio acceptor
4 O
U
TP
U
TS
OPTICAL TosLink®
Connector
Connect to the digital audio acceptor 1
5 OUT2 Detachable
Terminal Block
Connect to an additional 466 receiver
6 OUT1 Detachable
Terminal Block
Connect to an additional 466 receiver
7
TW
IS
TE
D
P
A
IR
2
IN Detachable
Terminal Block
Connect to the OUT1 or OUT2 detachable terminal
block on another (transmitter) 466 unit, when using
more than one 466 unit (transmitter/receivers)
1 Use an optical cable, such as Sony’s POC-15A (not included in the package)
2 When connecting a single machine, this section is not relevant
