SPK-W612 - Overview

3

3 Overview

The SPK-W612 includes a pair of high performance speakers that can be

mounted on the wall vertically or horizontally. The mounting brackets are made of

hardened steel that can be attached to each speaker, letting you rotate each

speaker to the left or right.

3.1

Defining the SPK-W612

This section defines the SPK-W612:

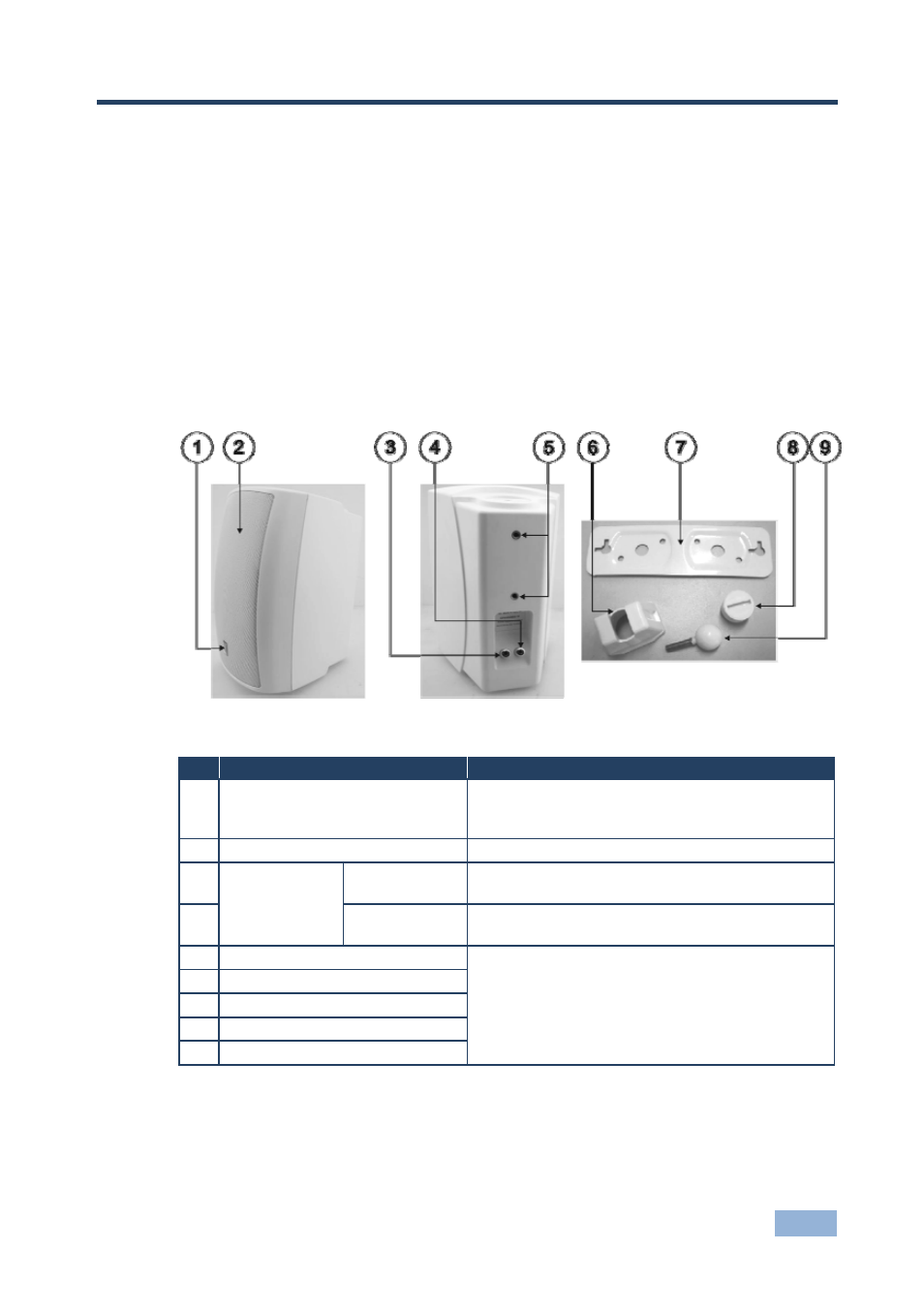

Figure 1: SPK-W612

#

Feature

Function

1

Kramer Logo

Gently pull the spring-loaded logo to set it to the
horizontal position if the speakers are mounted
horizontally

2

Speaker Grille

Do not remove from the speakers

3 Screw

Type

Input Port

Negative (black) Connect to the negative stereo analog audio output

of the receiver

4 Positive

(red)

Connect to the positive stereo analog audio output

of the receiver

5

Threaded holes (2)

6 Fixture

(2)

7

Fixed bracket

Used for the mounting bracket

ABS

screw

(2)

Ball

(2)
