FC-10ETH – Controlling Machines via the Ethernet using the FC-10ETH 17
5.1.2 Setting an Ethernet Connection
If the control application can directly connect to the Ethernet driver, select the host
IP and port number according to your FC-10ETH configuration, as illustrated in
Figure 10 .

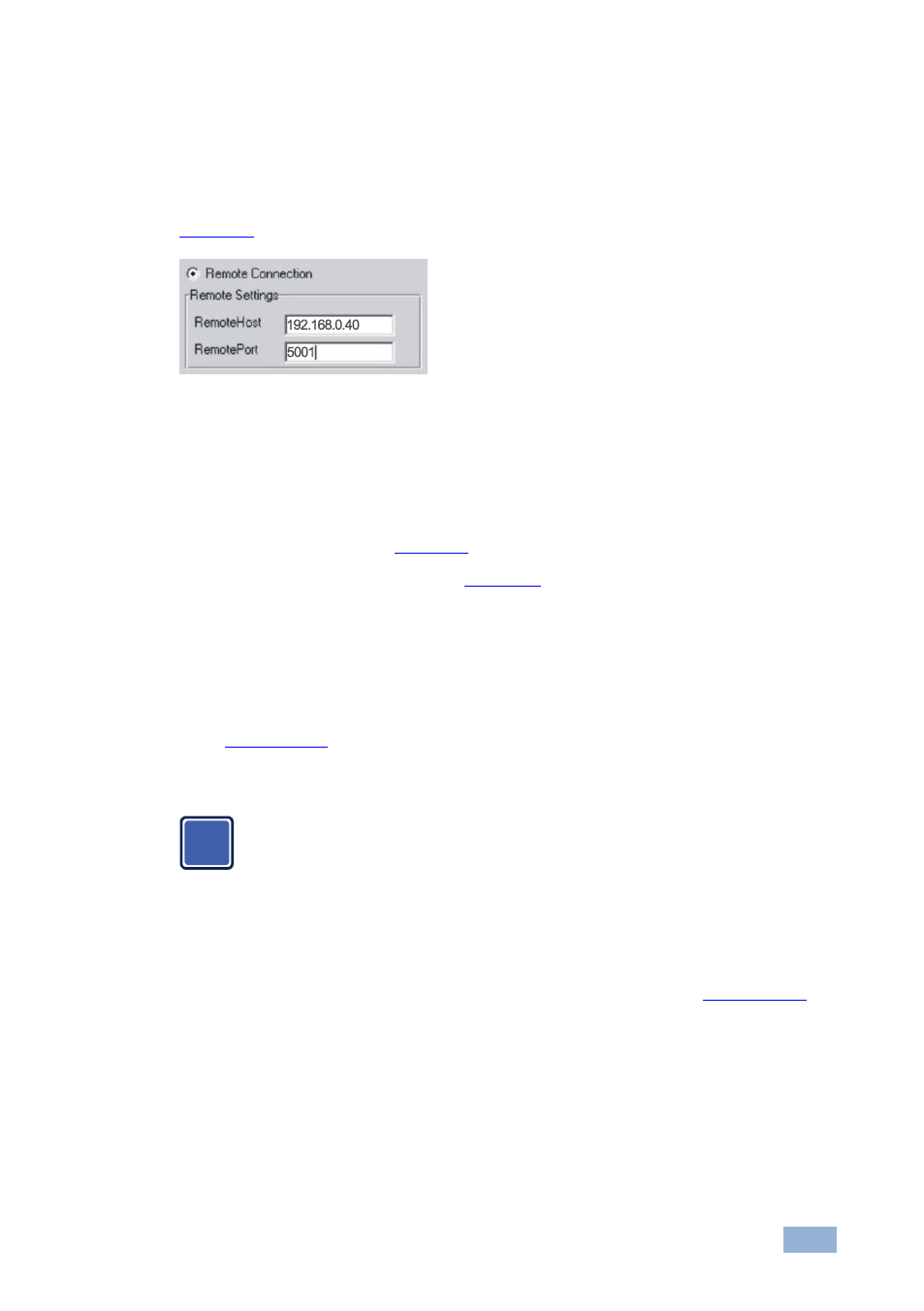

Figure 10: The Port Window – Selecting a Remote Connection
5.2 Controlling a Kramer Machine via a Serial Controller
To control a Kramer machine via serial controllers (in the Active routing mode), as
illustrated in the example in Figure 11 , do the following:
For passive and active routing modes, see Section 4.4 .
1. Connect the FC-10ETH (A) 12V DC power adapter to the power socket and
connect the adapter to the mains electricity.
2. Configure the FC-10ETH (A) to the Passive routing mode (see
Section
4.4.1
).
3. Disconnect unit (A).
Unit (A) is configured to the Passive mode.
4. Connect the FC-10ETH (B) 12V DC power adapter to the power socket and
connect the adapter to the mains electricity.
5. Configure the FC-10ETH (B) to the Active routing mode (see Section 4.4.2 )
and then Disconnect unit (B). Make sure that the:

Destin. IP set in unit (B) is identical to the IP address on unit (A)

Destination Settings Area for CHANNEL 1 and CHANNEL 2 of unit (B)
are set to be identical to the Port numbers in the Local Ports on
CHANNEL 1 and CHANNEL 2 or according to the connections we
want to establish with unit (A)
