8 SL-10 - Connecting the SL-10
8. Connect the K-NET port to any RC device with K-NET.

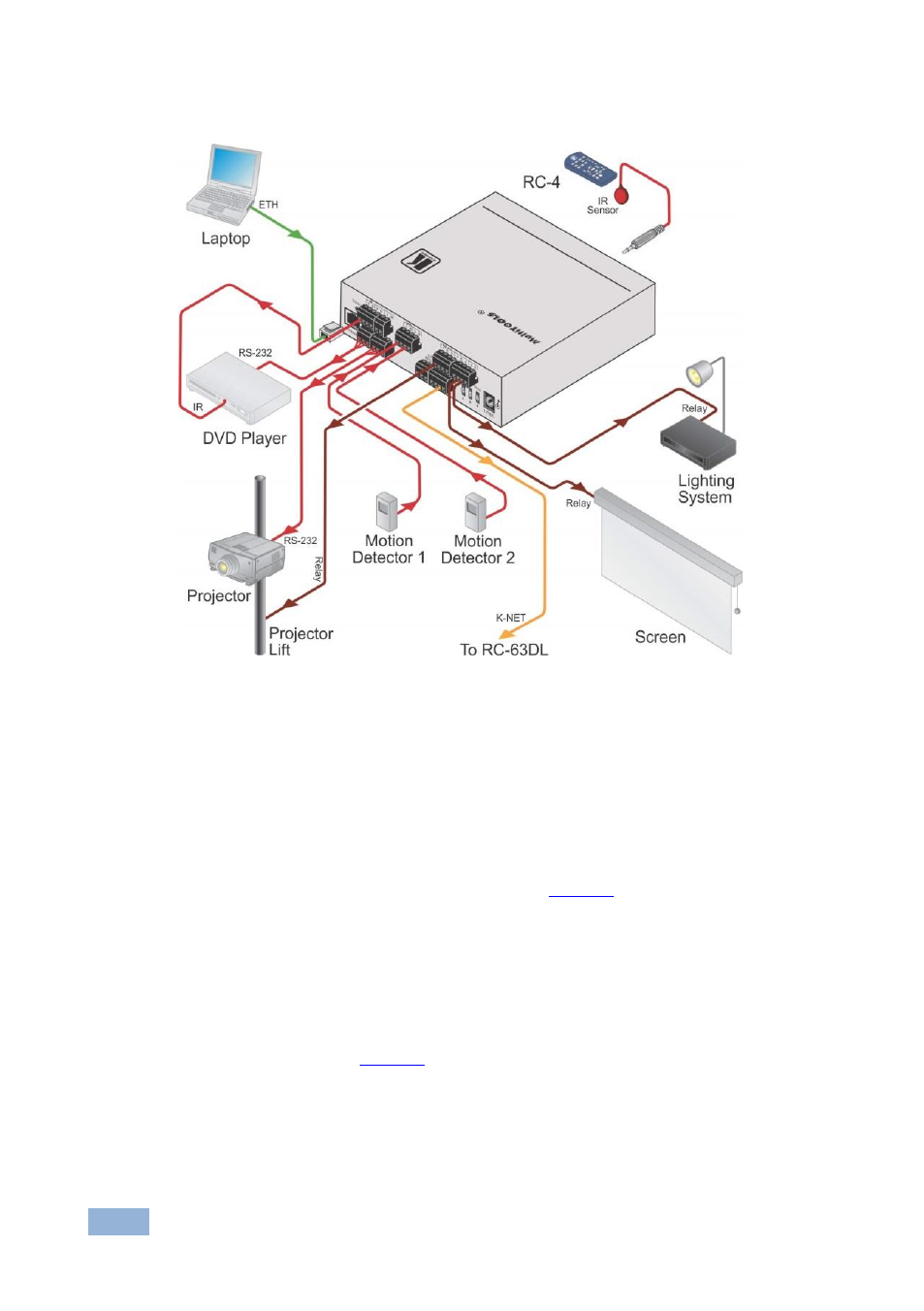

Figure 2: Connecting the SL-10 Master Room Controller
4.1 Using the RC-4 IR Transmitter
You can use the optional RC-4 IR transmitter as an auxiliary control panel and
initiate configured control triggers —refer to the K-Config guide—via the built in IR
receiver on the front panel, or instead, via an optional external wired IR receiver,
which exists in several cable lengths (shown in Figure 2 ).
4.2 Connecting the RS-232 Interface
To connect an AV device to the SL-10 using the RS-232 port, connect the RS-232
9-pin D-sub port on your device to the RS-232 terminal block on the rear panel of
the SL-10 as shown in Figure 3 :
