Installing the RC-53DLC Faceplate, Button Caps and Labels
11
11
4. Repeat for all six caps.
5. Retaining the orientation, place the six button caps on the buttons of the
RC-53DLC.

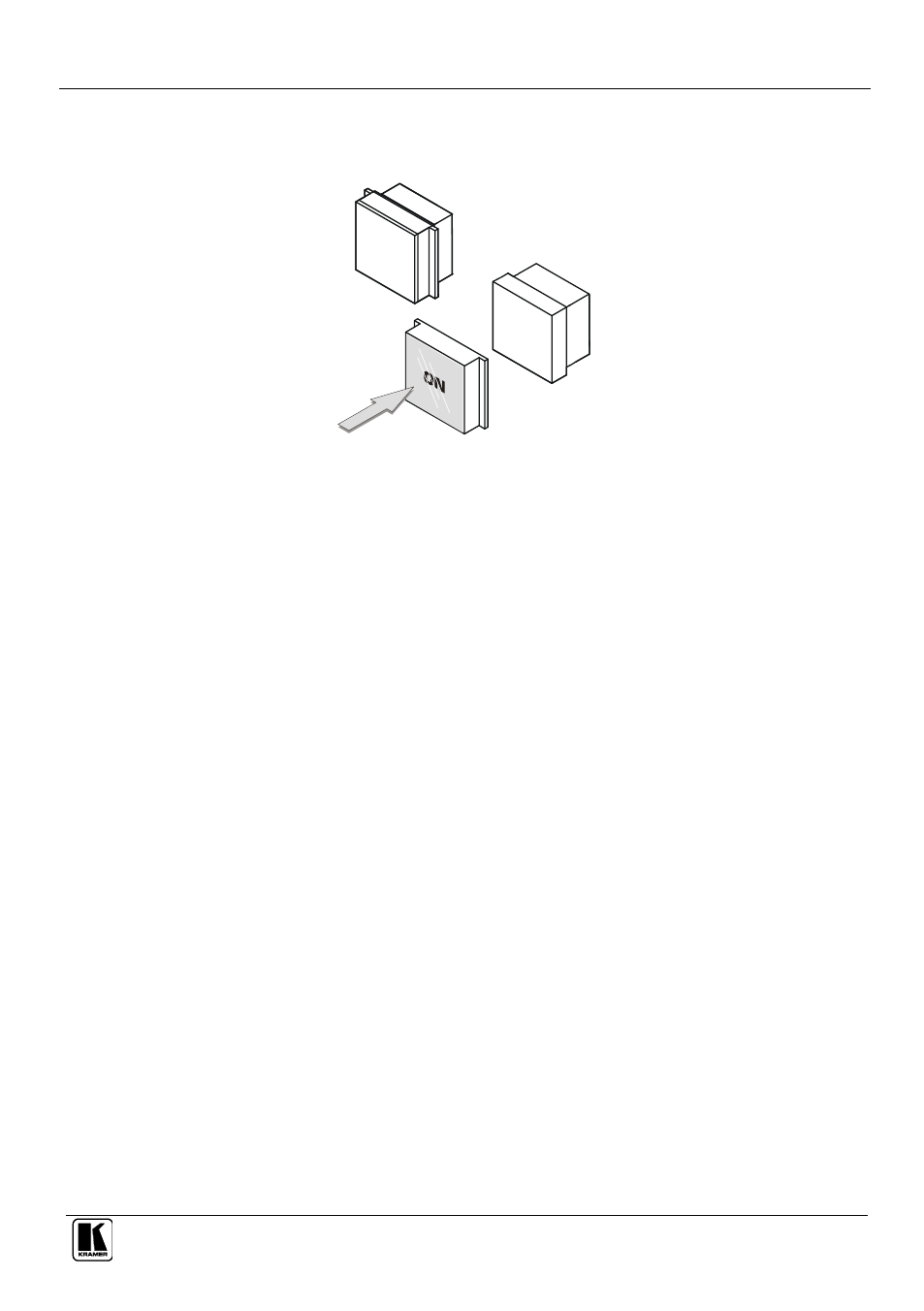

Figure 10: Placing the Button Cap
6. Remove the protective foils from both sides of the Perspex (acrylic glass)
windows.
7. Remove the protective foils from both displays.
8. Place the faceplate on the RC-53DLC so that the four screw mounting holes
are aligned.
9. Insert the four mounting screws and tighten with a screwdriver.
10. Install the volume control knob.
