6.1 Optional Gain Adjustment
You can set the overall gain of the loudspeaker outputs by adjusting the
gain DIP-switches located on the circuit board inside the VS-406. Settings
available are 26dB, 32dB, 38dB (factory default setting) and 42dB.
To set the gain DIP-switches:
1. Remove the screws from the top and sides that hold the top cover.
2. Remove the top cover to access the circuit board.
3. Using a small screwdriver or pointed object, slide the DIP-switches to
set the desired gain (see Figure 3 ).
4. Replace the top cover and secure with the screws removed as per Step 1
above.
OFF
Rear Side
Front Side
ON
26dB 38dB 42dB 32dB
Factory
Setting
ON
ON
ON
ON
OFF
26dB (x10)
32dB (x20)
38dB (x40)
42dB (x63) OFF OFF
OFF OFF OFF
ON ON ON

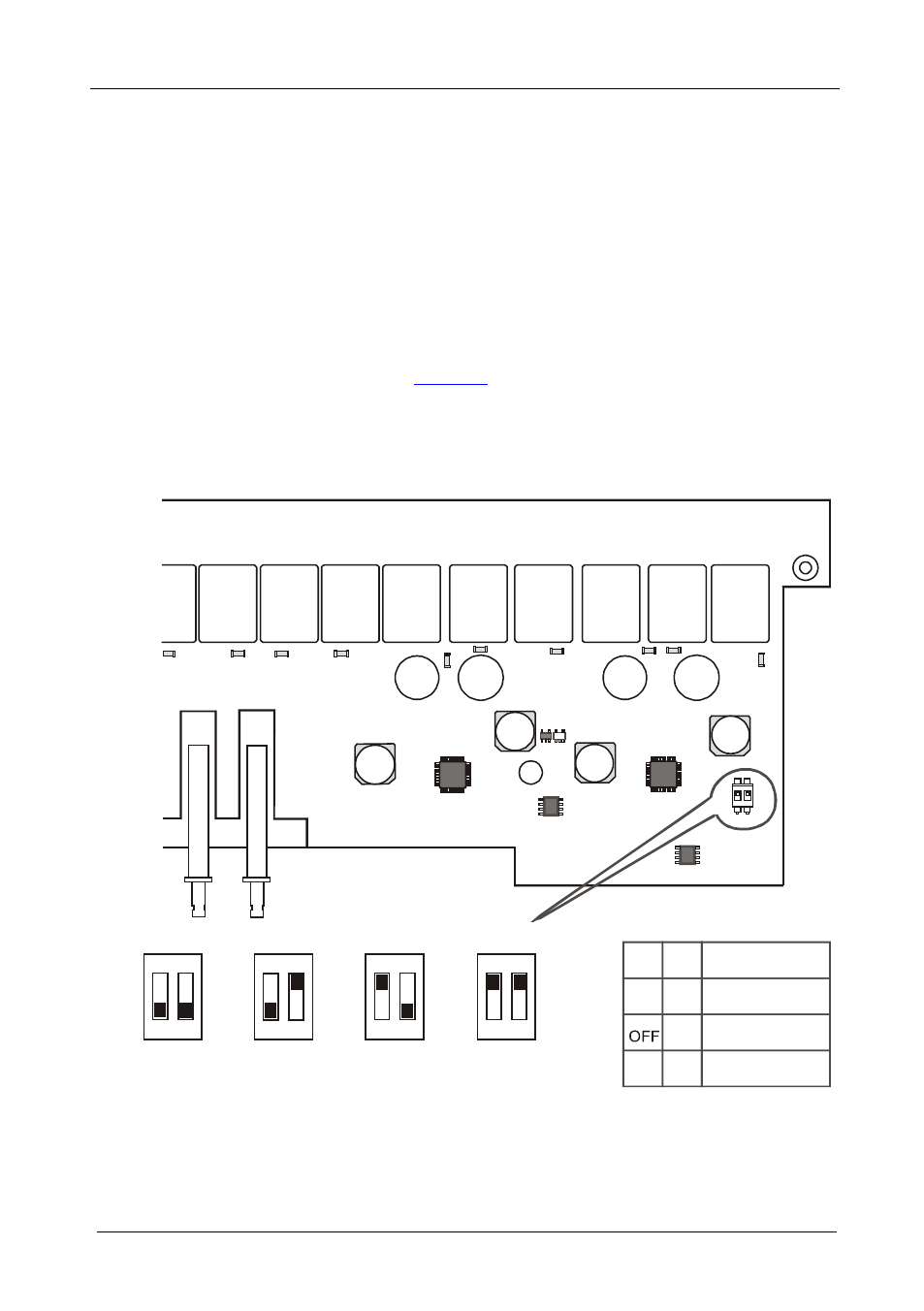

Figure 3: Adjusting the Gain DIP-Switches
