VP-774 - The OSD Menu
31
31

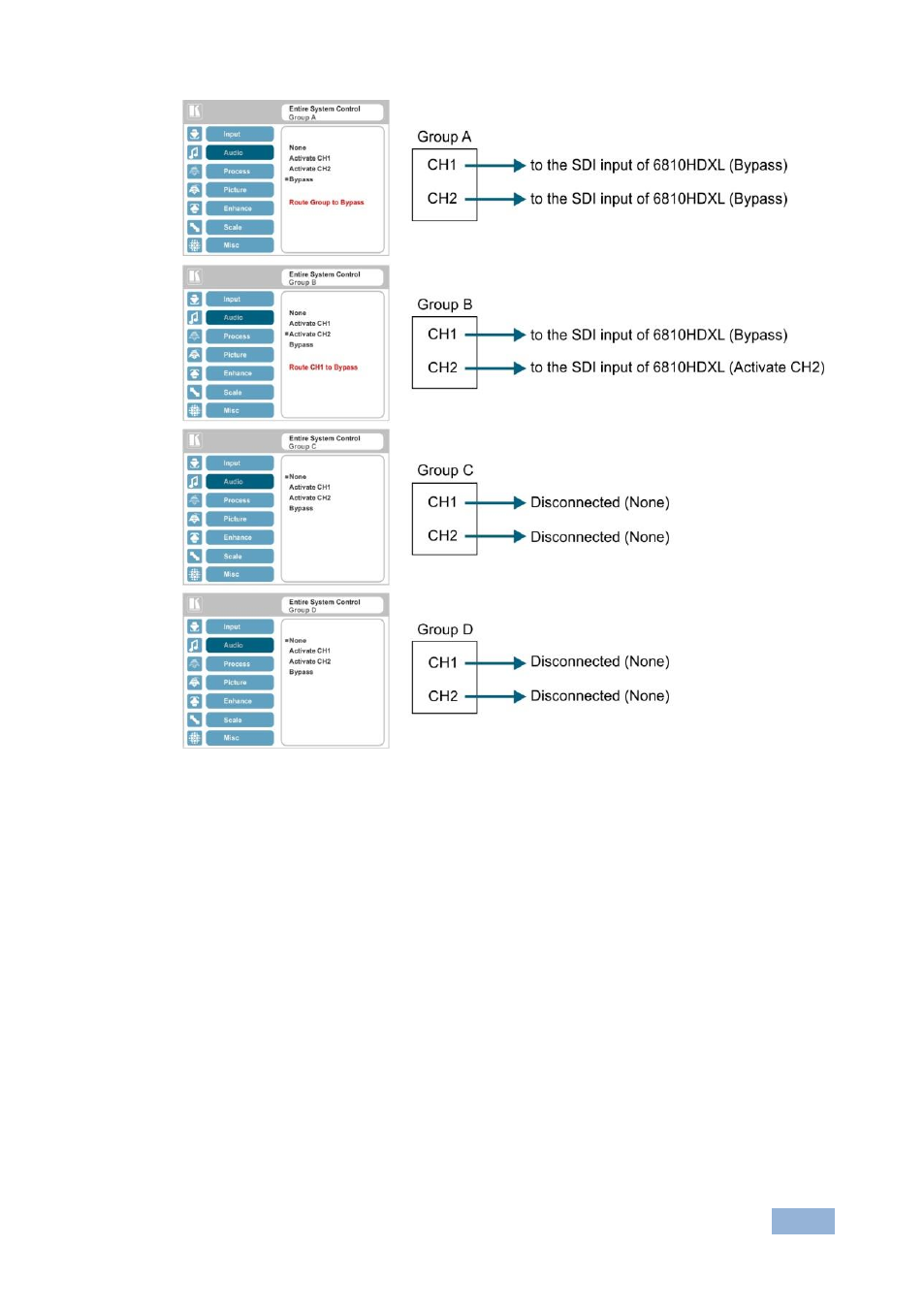

Figure 23: SDI Channeling Example
If a different channel within the connected groups is activated, the remaining three
channels will be automatically routed to bypass.
If a channel in a disconnected group is activated, the system will automatically
rearrange the groups and channel assignments to keep two groups connected and
two others disconnected.
