VP-690 - Connecting the VP-690
9. Connect the HDMI VIDEO OUTPUT connector to an HDMI acceptor (for
example, a plasma display).
10. Connect the VGA VIDEO OUTPUT 15-pin HD connector to a VGA acceptor
(for example, a projector).
11. Connect the audio output signals to the AUDIO OUTPUTS stereo analog
audio acceptor and/or the digital audio acceptor, as required (not shown in
12. Connect the power cord (not shown in
13. If required, connect:
A PC via RS-232, see
Section
The ETHERNET port, see
Section

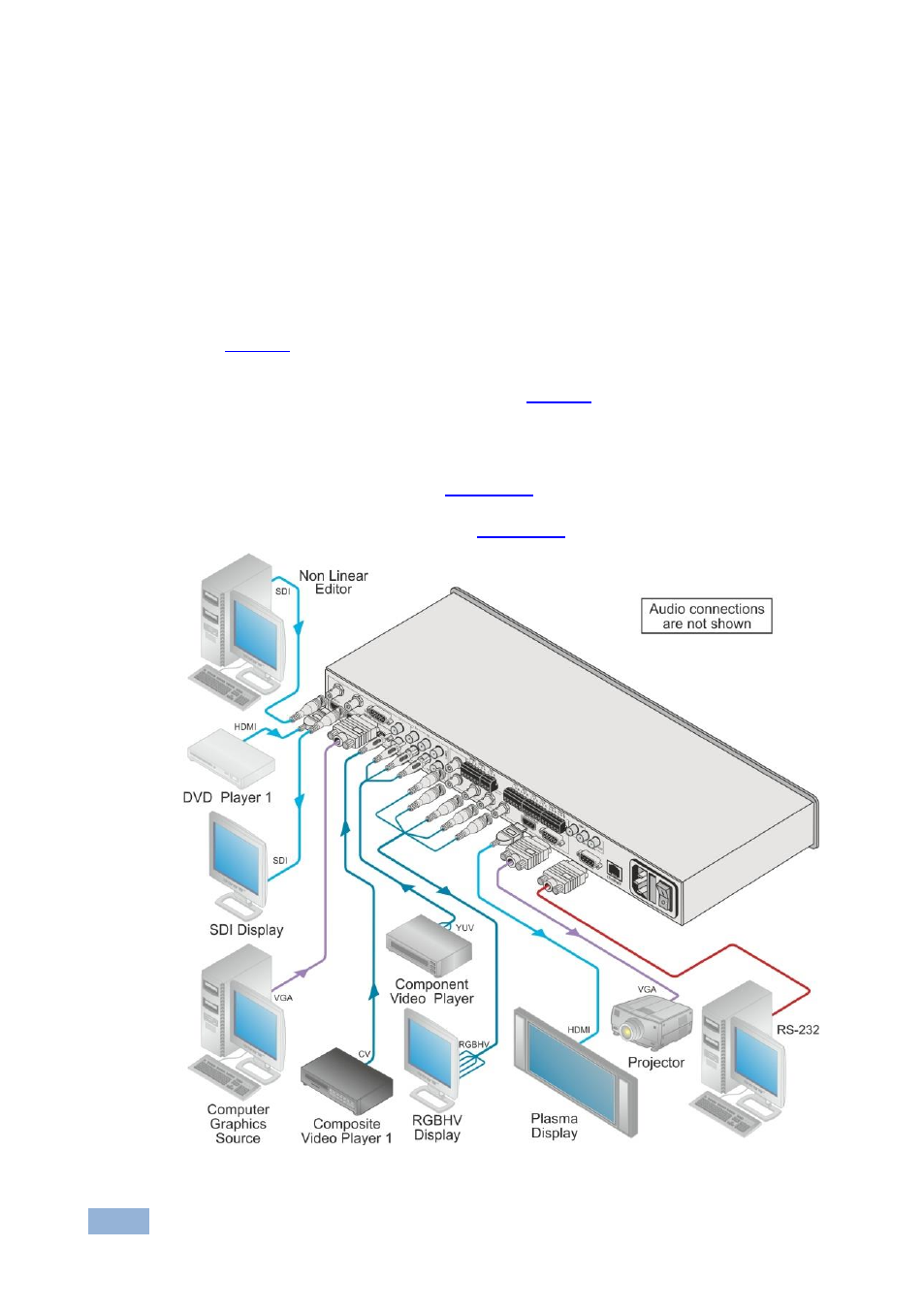

Figure 3: Connecting the VP-690 Presentation Switcher/Scaler
