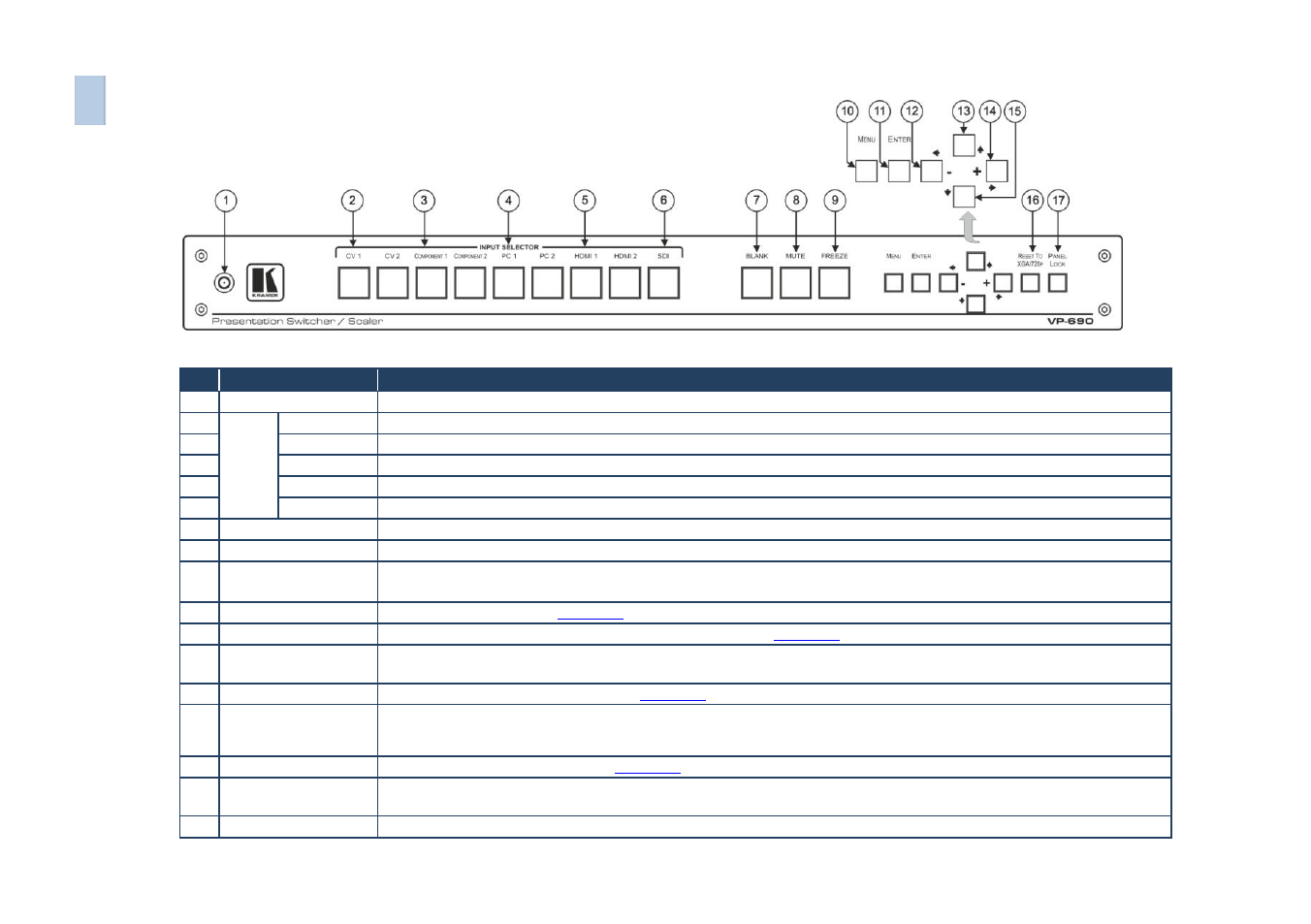

Figure 1: VP-690 Presentation Switcher/Scaler Front Panel
# Feature Function
1 IR Receiver Receives signals from the remote control transmitter
2
INP
UT
S
E
L
E
CT
OR
B
u
tt
o
n
s
CV Press to select the composite video input (from 1 to 2)
3 COMPONENT Press to select the component video input (from 1 to 2)
4 PC Press to select the computer graphics input (from 1 to 2)
5 HDMI Press to select the HDMI input (from 1 to 2)
6 SDI Press to select the SDI input
7 BLANK Button Press to toggle between a blank screen (blue or black screen) and the display
8 MUTE Button Press to toggle between muting (blocking out the sound) and enabling the audio output
9 FREEZE Button Press to freeze/unfreeze the output video image
Can be programmed to follow MUTE
10 MENU Button Displays the OSD menu (see Section 6.2 )
11 ENTER Button Press to accept changes and change the SETUP parameters (see Section 6.2 )
12 -  Button Press to decrease numerical values or select from several definitions
When not within the OSD menu mode, press to reduce volume (for embedded HDMI inputs, this does not affect the embedded output)
13  Button Press to move up the menu list values (see Section 6.2 )
14 +  Button Press to increase numerical values or select from several definitions
When not within the OSD menu mode, press to increase volume (for embedded HDMI inputs, this does not affect the embedded
output)
15  Button Press to move down the menu list (see Section 6.2 )
16 RESET TO XGA/720p
Button Press to reset the video resolution to XGA or 720p
Press and hold for about 2 seconds to reset to XGA; or press and hold for about 5 seconds to reset to 720p
17 PANEL LOCK Button Press and hold (for about 2 seconds) to lock/unlock the front panel buttons
