VP-200K, VP-300K, VP-400K - Your High Resolution XGA DA 5
4 Your High Resolution XGA DA
This section defines the:

VP-200K 1:2 High Resolution UXGA DA (see section
43H
‎4.1
)

VP-300K 1:3 High Resolution UXGA DA (see section
44H
‎4.2 )

VP-200K 1:4 High Resolution UXGA DA (see section
45H
‎4.3 )
4.1 Your VP-200K 1:2 High Resolution UXGA DA
46H

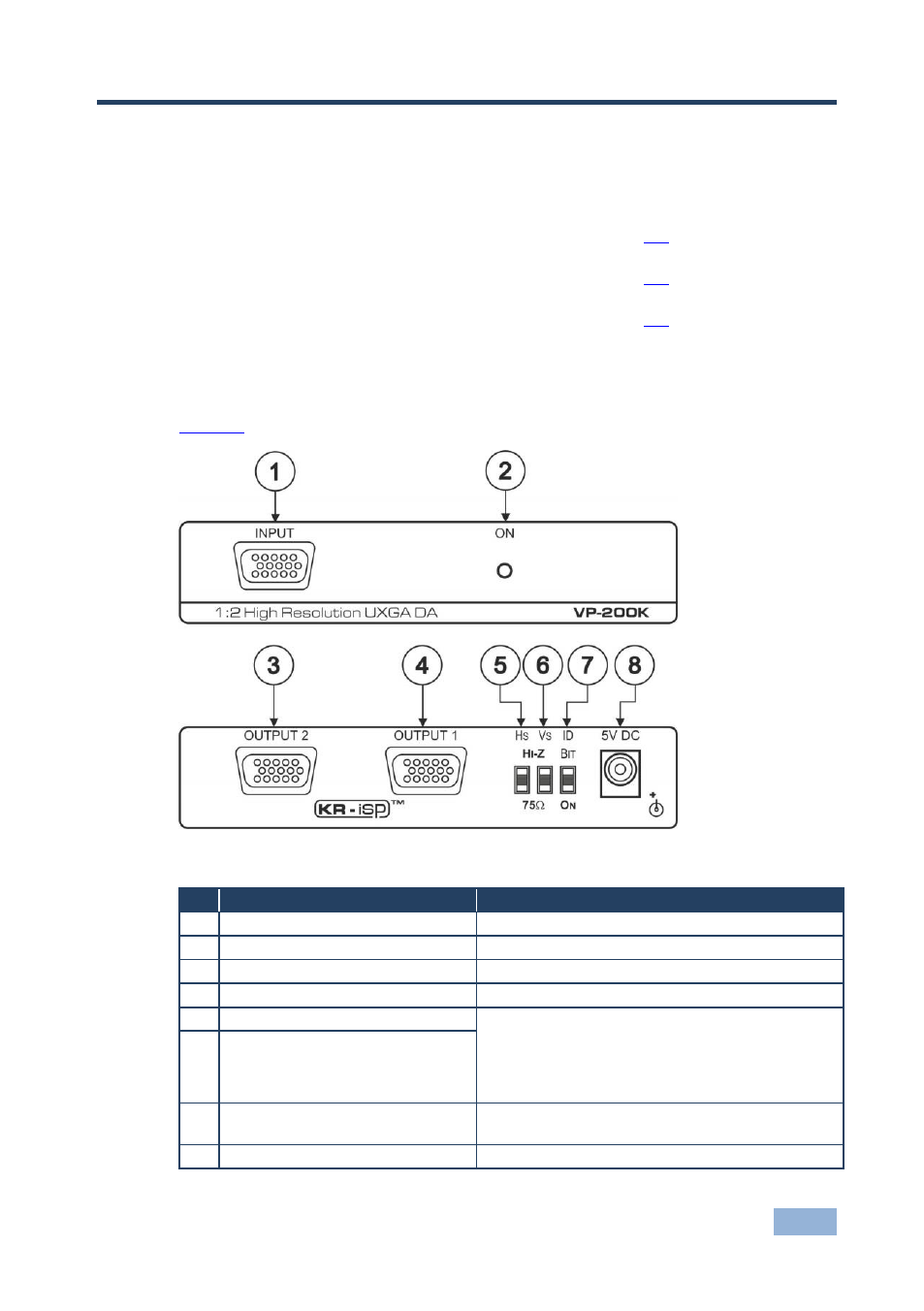

Figure 1 defines the VP-200K:
Figure 1: VP-200K 1:2 High Resolution UXGA DA
# Feature Function
1 INPUT 15-pin HD Connector Connect to the computer graphics source
2 ON LED Illuminates when receiving power
3 OUTPUT 2 15-pin HD Connector Connect to the computer graphics acceptor 2
4 OUTPUT 1 15-pin HD Connector Connect to the computer graphics acceptor 1
5 Hs (Horizontal Sync) Switch Set both switches to Hi-Z (TTL) if the source is, for
example, a digital graphics card. Set both switches
to 75

(ANALOG) if the source is analog based, for
example, an RGBHV source with coaxial cable for
sync
6 Vs (Vertical Sync) Switch
7 ID Bit Switch Slide down to set to ON for a laptop; up to set to
OFF for a non-laptop
8 5V DC +5V DC connector for powering the unit
