VP-200K, VP-300K, VP-400K - Your High Resolution XGA DA 7
4.3 Your VP-400K 1:4 High Resolution UXGA DA

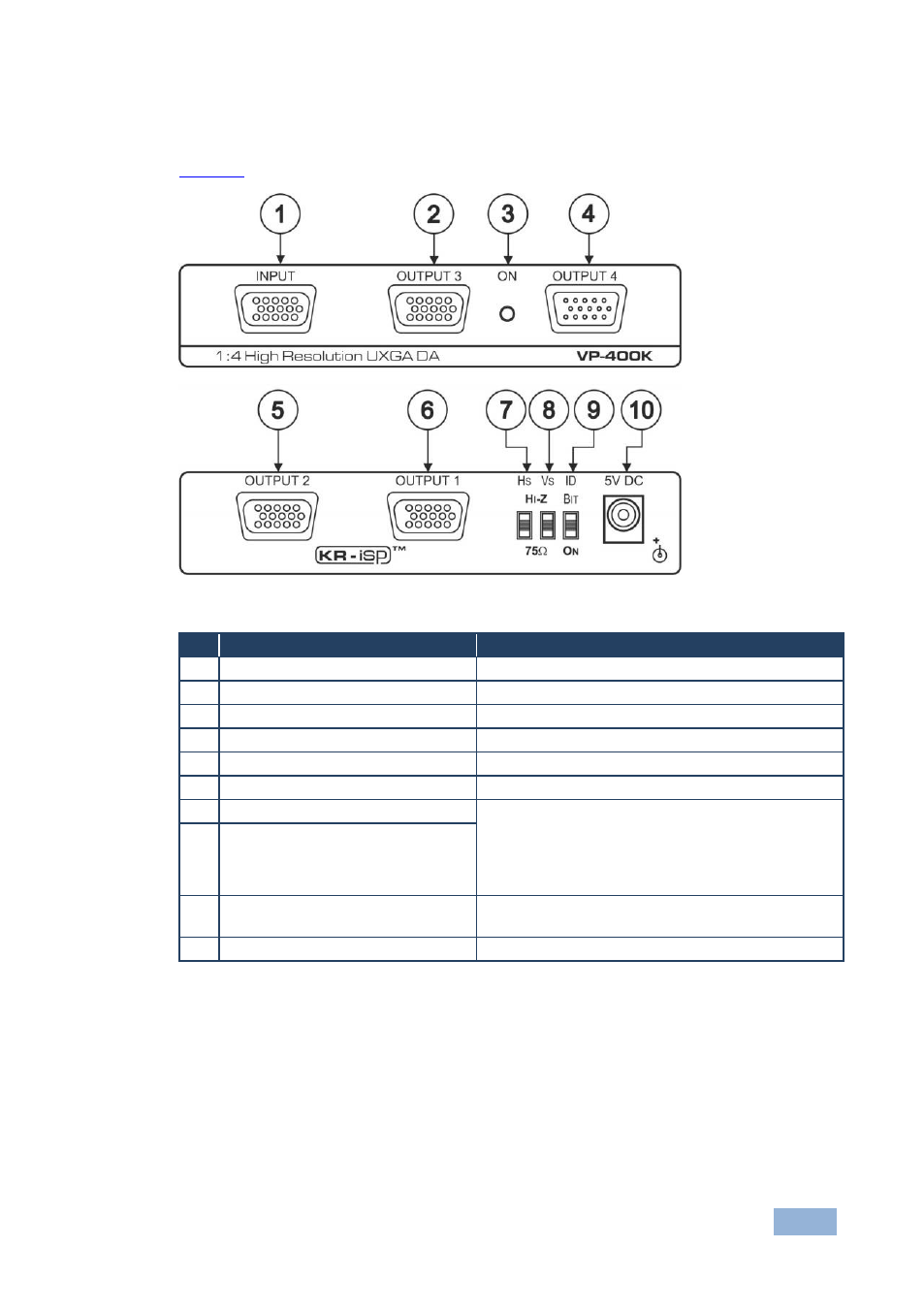

Figure 3 defines the VP-400K:
Figure 3: VP-400K 1:4 High Resolution UXGA DA
# Feature Function
1 INPUT 15-pin HD Connector Connect to the computer graphics source
2 OUTPUT 3 15-pin HD Connector Connect to the computer graphics acceptor 3
3 ON LED Illuminates when receiving power
4 OUTPUT 4 15-pin HD Connector Connect to the computer graphics acceptor 4
5 OUTPUT 2 15-pin HD Connector Connect to the computer graphics acceptor 2
6 OUTPUT 1 15-pin HD Connector Connect to the computer graphics acceptor 1
7 Hs (Horizontal Sync) Switch Set both switches to Hi-Z (TTL) if the source is, for
example, a digital graphics card. Set both switches
to 75

(ANALOG) if the source is analog based, for
example, an RGBHV source with coaxial cable for
sync
8 Vs (Vertical Sync) Switch
9 ID Bit Switch Slide down to set to ON for a laptop; up to set to
OFF for a non-laptop
10 5V DC +5V DC connector for powering the unit
