8 VM-50AN - Using Your VM-50AN 1:5 Audio Distributor

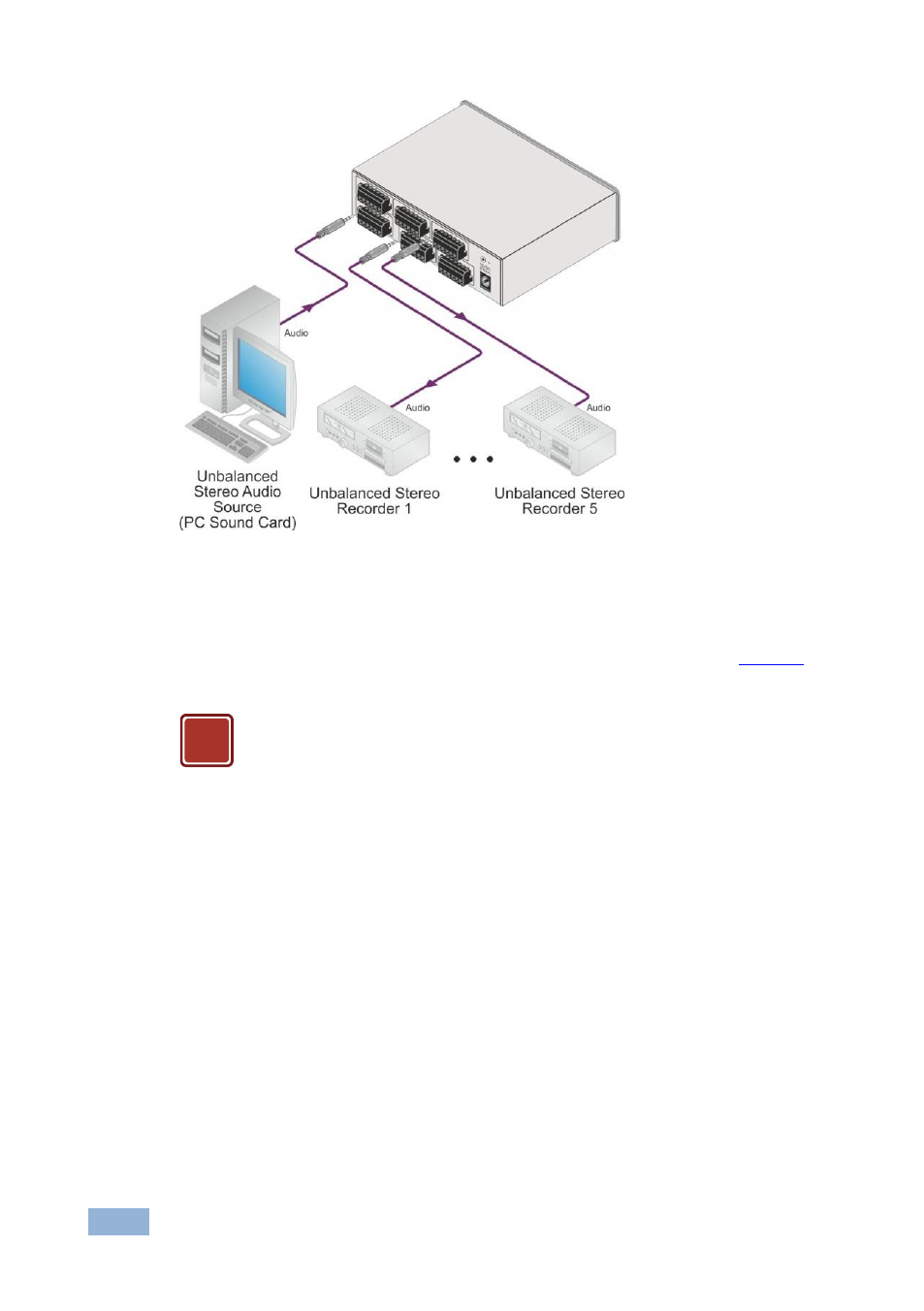

Figure 3: Connecting the VM-50AN as an Unbalanced Stereo 1:5 Audio Distributor
4.3 Connecting the VM-50AN as a 1:10 Audio Distributor
To connect the VM-50AN as a 1:10 audio distributor, as the example in Figure 4
illustrates, do the following:
Warning: Both formats cannot be connected to the machine at
the same time, as they share some of the input
connections
1. Connect either (but not both simultaneously) the:
 Balanced stereo audio source to the INPUT terminal block connector
(and release the BAL/UNBAL INPUT MODE button to select balanced
stereo audio operation), or
 Unbalanced stereo audio source to the INPUT mini 3.5mm socket (and
push in the BAL/UNBAL INPUT MODE button to select unbalanced
stereo audio operation)
2. Connect up to 10 acceptors, as follows:
 5 balanced stereo audio acceptors to the OUT terminal block
connectors, and
 5 unbalanced stereo audio acceptors to the OUT mini 3.5mm sockets
!
