Your VM-312 Multi-Format Video/Audio Distributor
2
The VM-312:
Includes one 1:2 composite video distributor on RCA connectors, one 1:2
Y/C distributor on 4p connectors, one 1:2 component video distributor on
RCA connectors, and one 1:2 unbalanced stereo audio distributor on
3.5mm mini jack connectors
Has a video bandwidth exceeding 400MHz, ensuring that it remains
transparent in almost any application
To achieve the best performance:
Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise-
levels (often associated with low quality cables)
Avoid interference from neighboring electrical appliances and position
your VM-312 away from moisture, excessive sunlight and dust
4 Your VM-312 Multi-Format Video/Audio Distributor

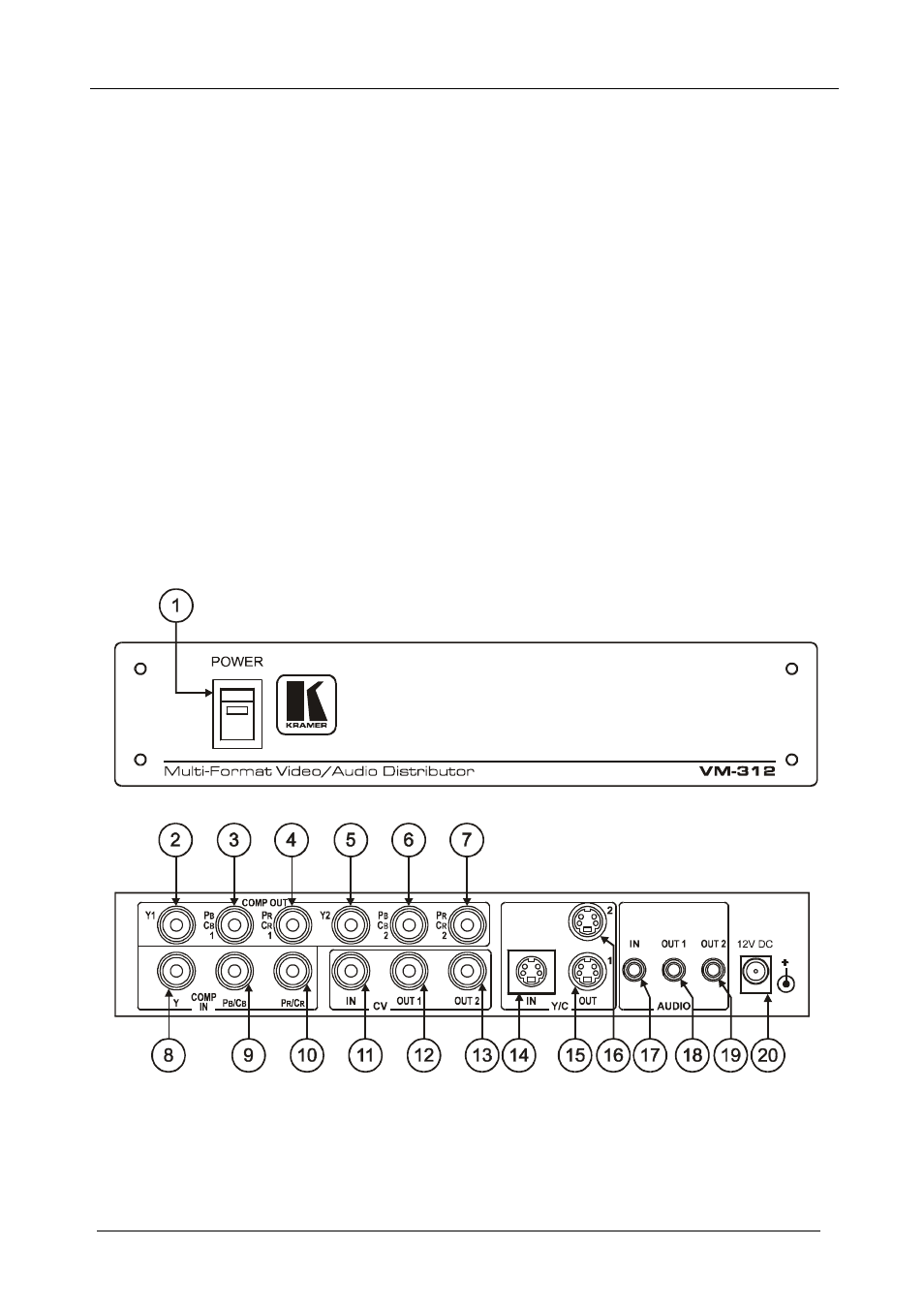

Figure 1 and Table 1 define the VM-312:
Figure 1: VM-312 Multi-Format Video/Audio Distributor
