VM-10HDxl - Overview 5
VM
-1
0
HD
x
l –
Ov
er
vi
ew
5

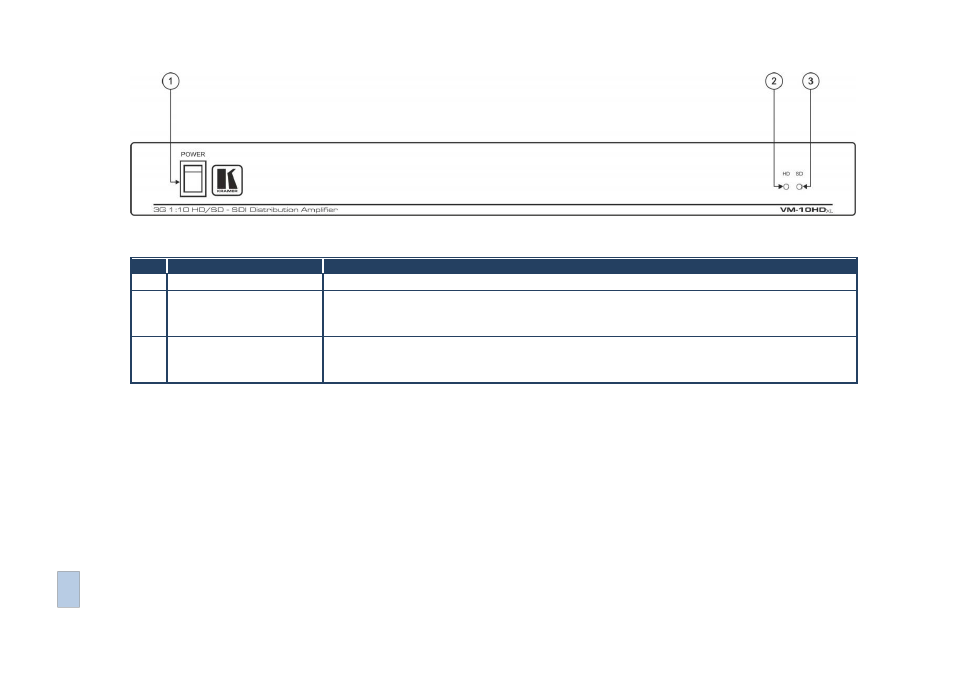

Figure 1: VM-10HDxl 3G 1:10 HD/SD – SDI Distribution Amplifier Front Panel
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 HD LED Blue LED illuminates when the SDI signal is HD
High Definition (HD) means a video format, consisting of either 720 active lines of progressive video or 1080
lines of either progressive or interlaced video
3 SD LED Green LED illuminates when the SDI signal is SD
Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576
(for PAL) lines of interlaced video
