ASUS A7V133 User’s Manual
3. HARDWARE SETUP
3. H/W SETUP
Motherboard Settings

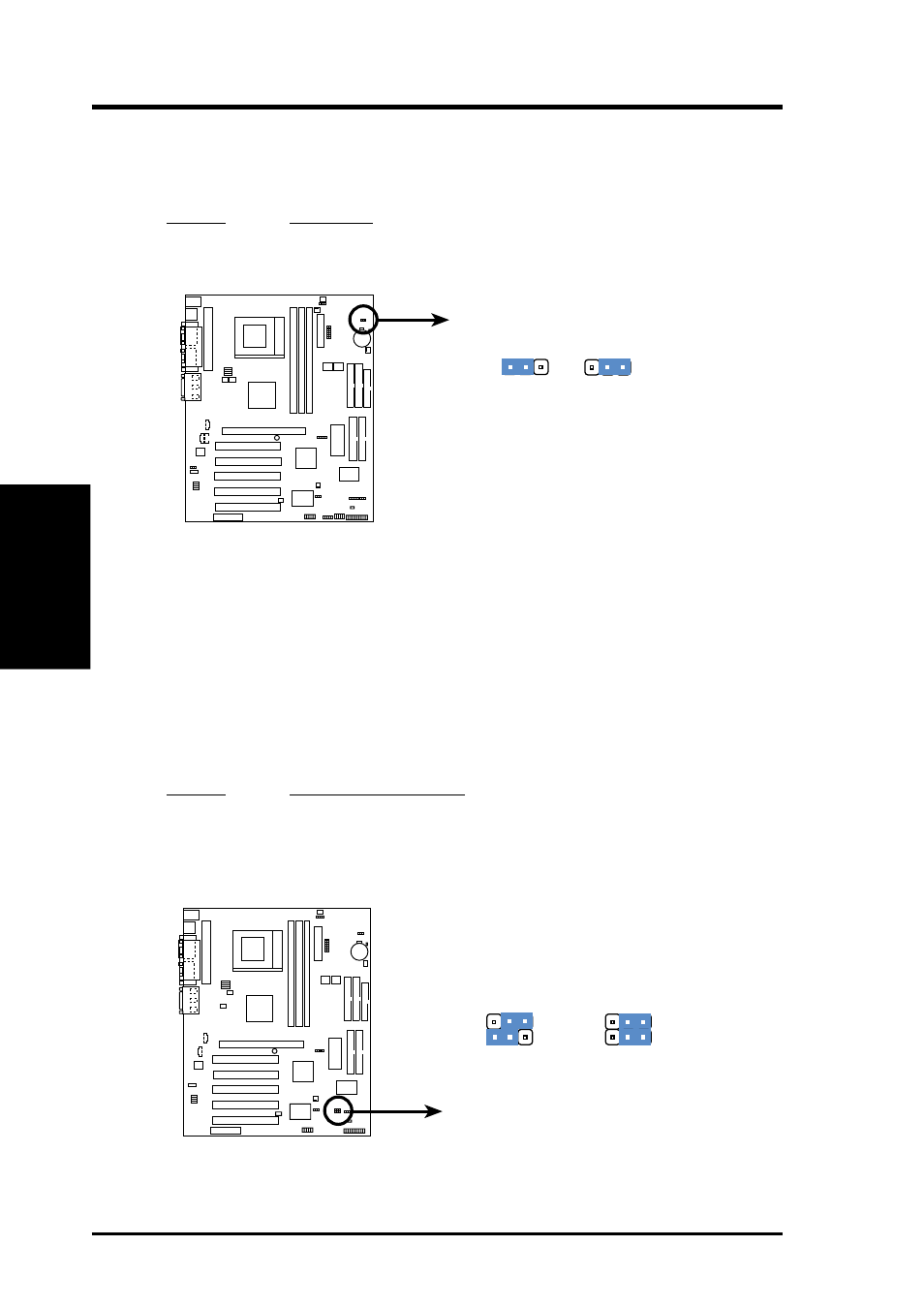

4) PCI 3Volt Setting (3VSBSLT)
This jumper allows you to select the voltage supplied to PCI devices. If you
have PCI devices that require auxiliary power, set this jumper to 3 VSB.
Setting 3VSBSLT
3 Volt [1-2]
3 VSB [2-3] (default)
01 01 01
A7V133
A7V133 ATA100/RAID0 Selection
RAID 0 or 1 ATA100
3 2
JP13
JP14
2 1 2 1
5) ATA100 / RAID 0 or 1 Setting (ATA100/RAID 0 or 1)
Jumper 13 and 14 specifies the function of the Promise IDE controller.
Changing the jumper allows you to select the ATA100 IDE protocol or the RAID
0 and 1 protocol. NOTE: You will need to shift your IDE device connections if
changing this setting: see page 36, More information is available in Section 5.4
of Software Setup: Using the Promise Chip for RAID 0 or 1.
The default setting is ATA100: [1-2] [1-2].
Setting ATA100/RAID 0 or 1
RAID 0 or 1 Jumper 13 [1-2]
Jumper 14 [2-3]
ATA100 Jumper 13 [1-2]
Jumper 14 [1-2]
(Default)
01 01 01
A7V133
A7V133 PCI 3Volt Selection
Add 3 Volt Add 3 VSB
(Default)
1 2 2 3
3VSBSLT
