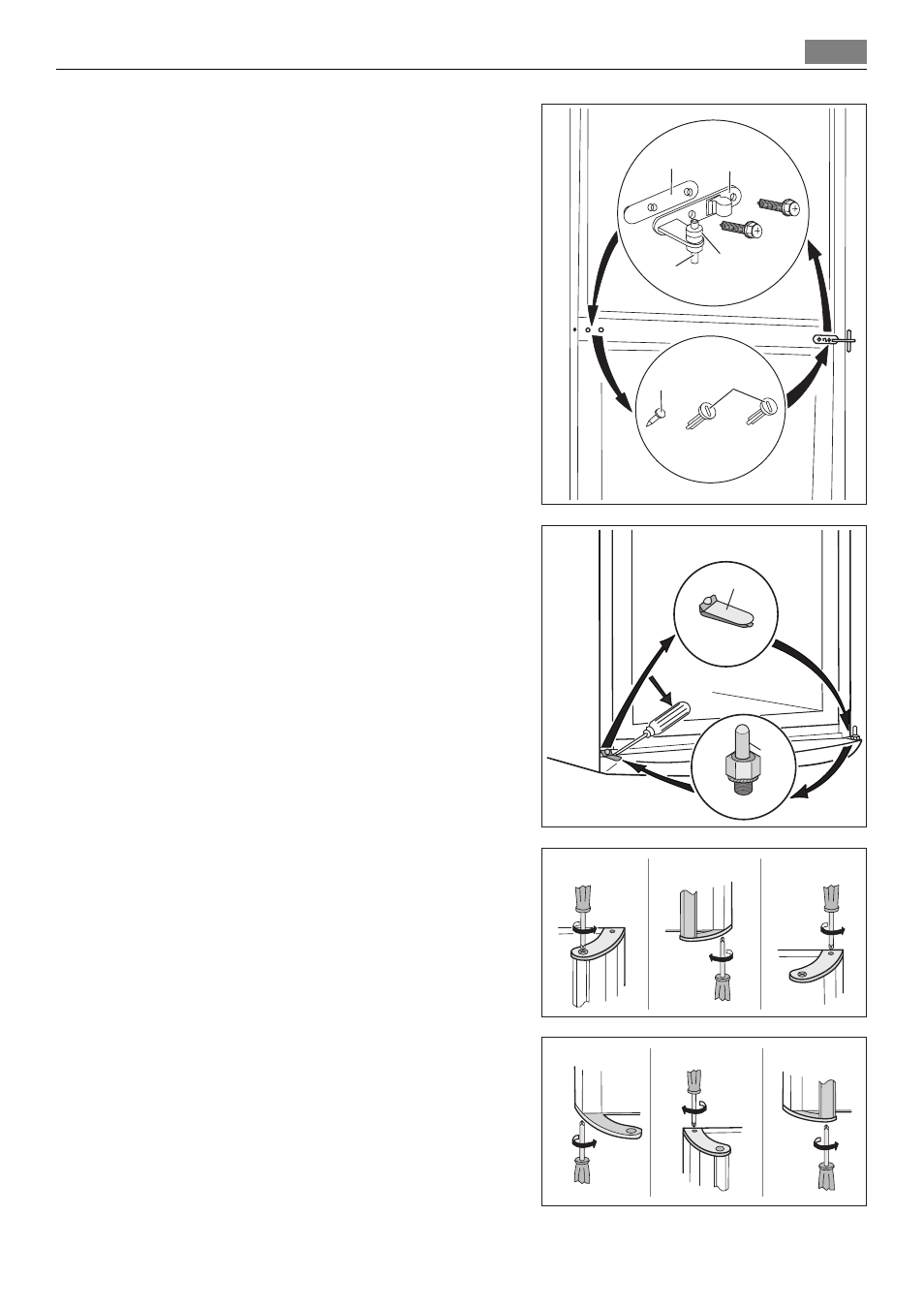

Open the doors. Unscrew the middle

hinge (m2). Remove the plastic spacer

(m1).

Remove the spacer (m6) and move to

the other side of the hinge pivot (m5).

Remove the doors.

Remove the left-hand cover pin of the

middle hinge (m3,m4) and move to the

other side.

Fit the pin of the middle hinge (m5) into

the left-hand hole of the lower door.

Remove using a tool the cover (b1). Un-

screw the lower hinge pivot (b2) and the

spacer (b3) and place them on the op-

posite side.

Re-insert the cover (b1) on the opposite

side.

Remove the handle. Unscrew the top

handle bracket from the handle rod (h1).

Unscrew the bottom handle bracket

from the door (h2)
Unscrew the top handle bracket from

the door (h3).

Install the handle in the opposite side.
Re-screw the handle bracket on the

door (h4). Turn the handle bracket with

the handle and screw them to the door

(h5) and the fitted handle bracket (h6).

10. Remove using a tool the cover. (c1).

11.

Unscrew the upper hinge pivot (c2) and

place it on the opposite side.
