1. Connect the detachable power cord to the AC/DC converter (DC power supply) and connect to “INPUT 24Vdc” receptacle in
rear of unit and then plug power cord into a suitable electrical outlet. (See Figure 1)
2. Place an accessory drum on the roller shaft. (See figures 2, 3, 4 & 5)
SET-UP

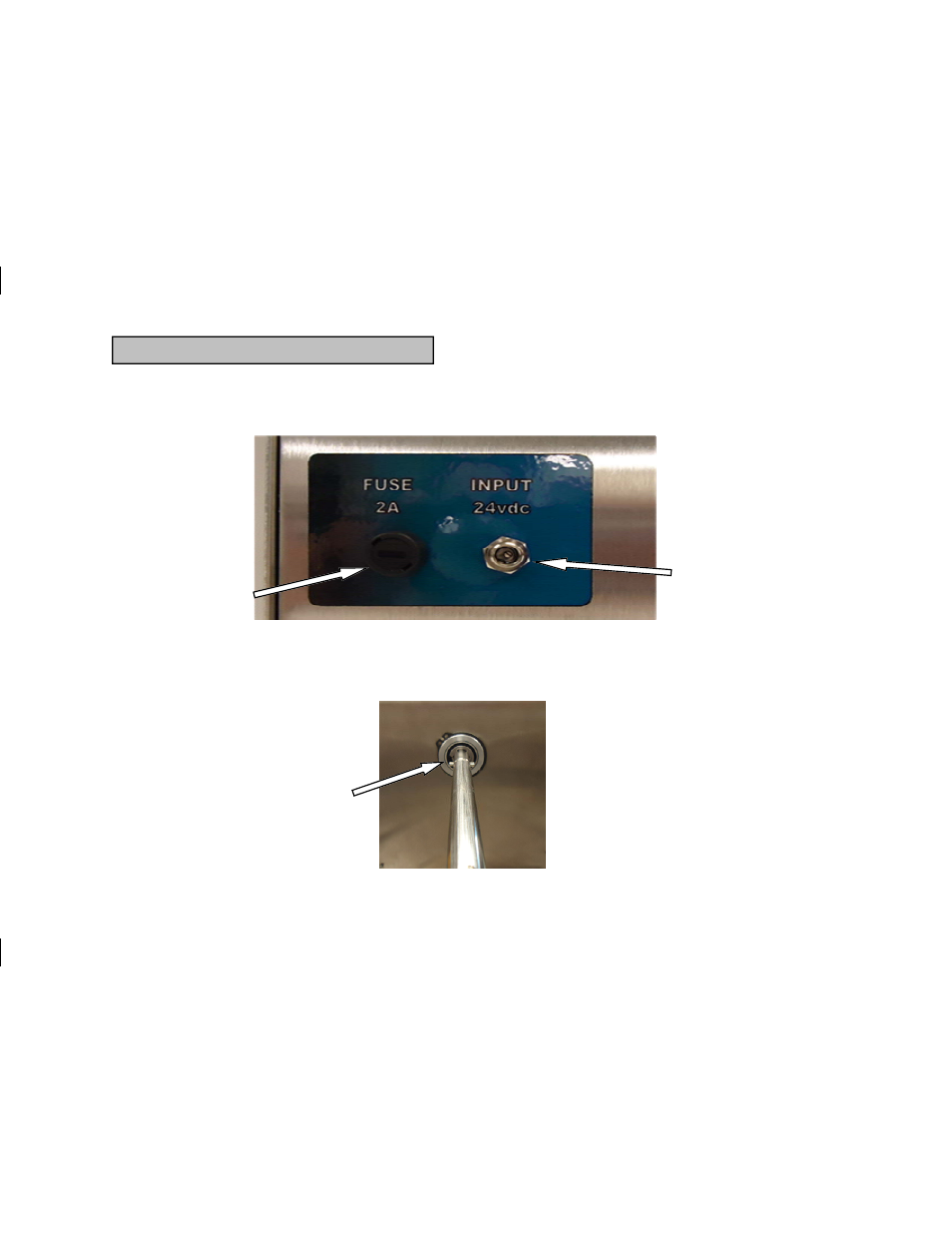

24Vdc INPUT Receptacle
Figure 1 - Rear of Unit
Mains Fuse
2A/250V
Alignment/Drive Pin
Figure 2 - Roller Drive Shaft
