Chemglass 10L thru 20L UNJacketed User Manual
Page 5
www.cglifesciences.com

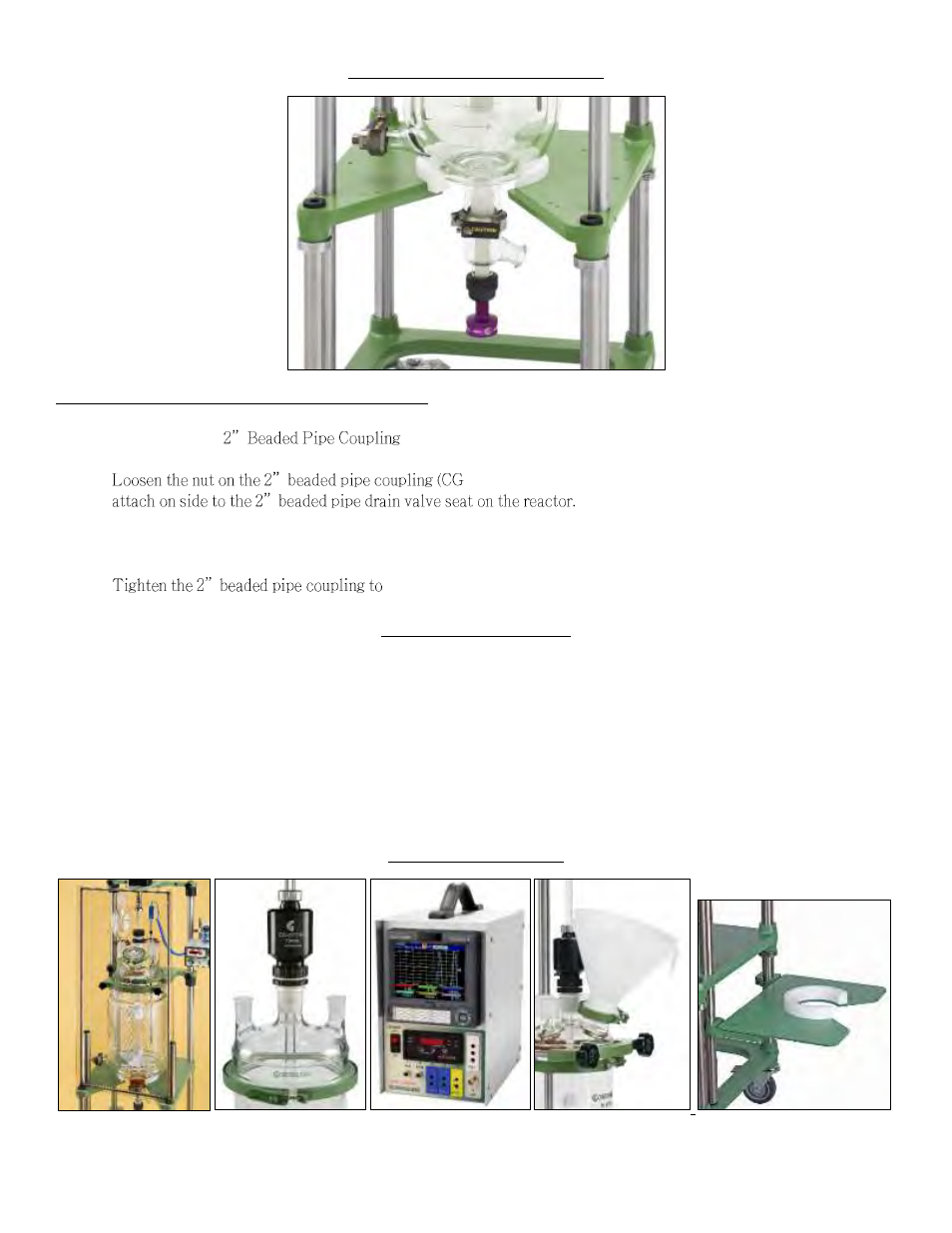

Zero Dead Space Drain Valve
Components Needed for Zero Dead Space Drain Valve:
1ea CG-1968-Q-01
Zero Dead Space Drain Valve
1ea CG-1968-67
1.
-1968-67). Wet the PTFE/Viton liner inside the coupling and
2. Attach the drain valve assembly (CG-1968-Q-01) to the other side of the coupling. PLEASE NOTE: PLUG
MUST BE IN THE OPEN POSITION. AFTER ASSEMBLY, BE SURE THE PLUG IS IN THE CLOSED
POSITION PRIOR TO FILLING THE REACTOR.
3.
60in-lbs using a torque wrench.
BEFORE YOU START:
The reactor is now ready for use. Before filling the reactor, make sure the zero dead space drain valve is in the closed
position. Once setup is complete, the reactor can be moved into position and connected to the circulator. Keep the wheels
locked for added safety.
Chemglass presumes some knowledge of this type of equipment on the part of the end user. Properties such as
mechanical strength of glass, thermal stress introduced to the reactor from e xothermic reactions, allowable
temperature differentials, pressure and vacuum must all be considered with extreme caution.
If you have any questions, please contact our technical service depar tment at (800) 843-1794 or
Optional Components:
Safety Shield Mechanical Seal Stir Bearing Data Logger Powder Addition Funnel Distillation Side Support Shelf
