Control Center
User Manual
 Attero Tech LLC 2013 Page 12 614-00002-07
4 – Bundles
Bundles are the method by which audio is routed around a CobraNet network. Some notes on bundles are included in the
relevant sections but for further information on audio routing and bundles in CobraNet, see the Introduction to CobraNet in
Error! Reference source not found. and the reference documents listed in APPENDIX B.
The Control Center main form shows an overview of the bundle
setup by displaying the bundle numbers a device is transmitting and
receiving. Up to eight transmitters and eight receivers can be
displayed. These values are updated each time a device is selected.
These are read only fields and only the bundle transmitters and
receivers that Control Center determines are available for the
selected device will be shown.
The current state of the persistence parameter is also shown. This
value only shows what the device is currently set to. If persistence is
not set, any bundle information will be lost if the unit is powered
down or reset for any reason. In some applications, this is desirable.
If bundle values are not going to change, this feature should be
turned on.
4.1 – Bundle Setup
*Note: Not available in demo mode,
Editing the bundle settings requires using the Bundle Setup form. This not only allows viewing and setting of bundle
numbers, but also the configuration of other audio routing parameters. To open the Bundle Setup form, select the device in
the device list and click the Bundle Setup button.

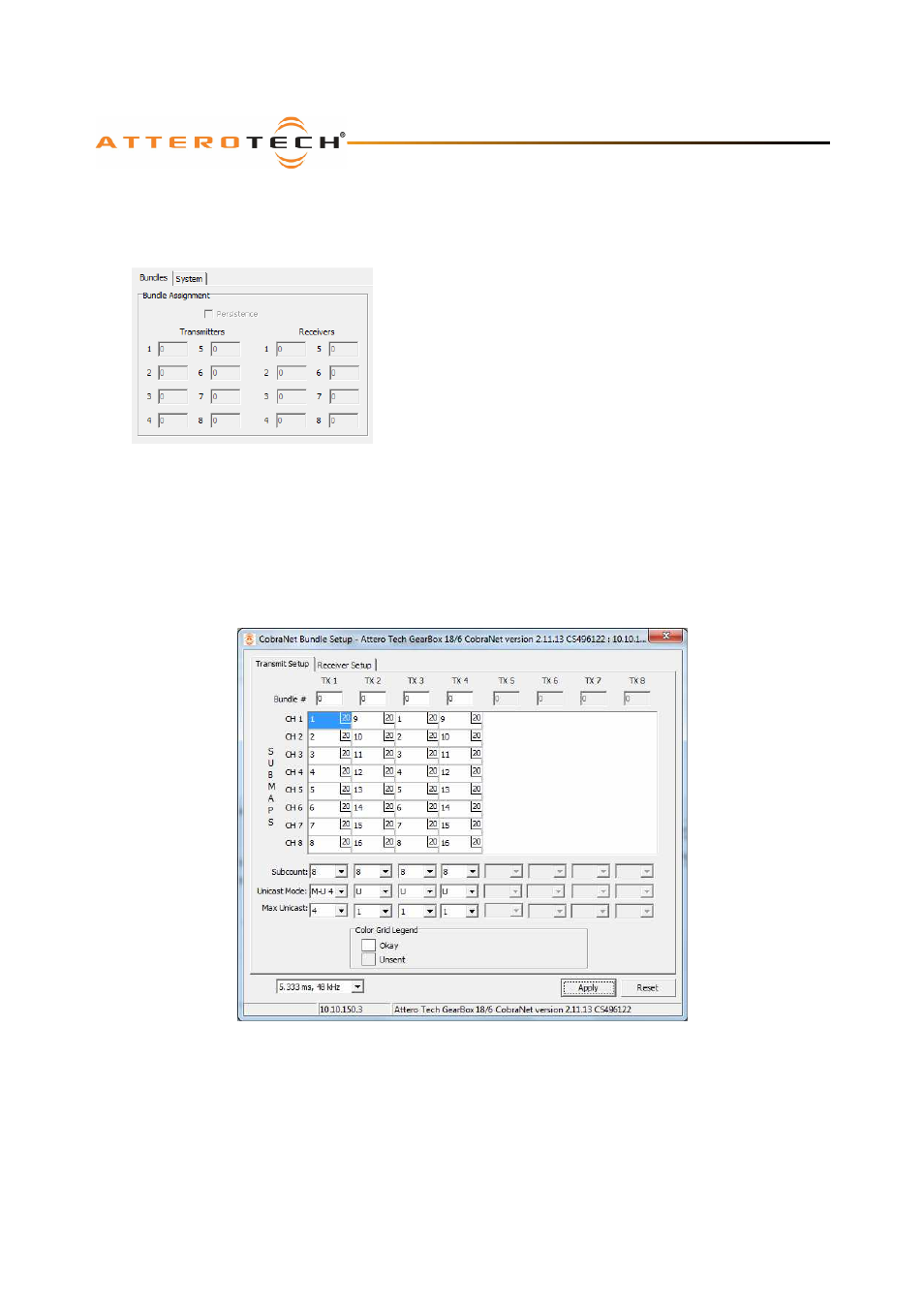

Figure 10 - Bundle Setup form showing Bundle Transmitters
The form has two tabs. The Transmit Setup tab contains the devices bundle transmitters while the Receiver Setup tab
contains the devices bundle receivers. Depending on the tab selected, up to eight bundle transmitter or eight bundle
receivers can be displayed. However, the software limits how many bundle transmitters and receivers that are available for
editing by interrogating the device to determine how many bundle transmitters and receivers it actually has.
*Note:
Alterations to any settings on this form have to be applied for them to take affect on the unit. Like the main form,
unapplied changes can be reset back to the device’s current values by using the Reset button.
Figure 9 - Bundle number settings on Main
Form
