Muxlab Surface Mount Transceiver Plate - Manual

© MuxLab Inc. 2013
Specifications
Environment Custom audio-video systems in a structured cabling environment.
Application Wall or furniture surface-mounting of MuxLab medium-size baluns
transmitter/receivers in head-end installations, audio-video rooms,
telecom rooms, boardroom systems, classrooms, CCTV systems.
Capacity One (1) medium-size MuxLab transceiver.
Compatible
transmitters and
receivers* MuxLab transmitter/receivers measuring:
4.5” x 3.0” x 1.25” (11.4 cm x 7.6 cm x 3.2cm)
i.e. 500035, 500110, 500140/141, 500150, 500405/406/407,
500410, 500417, 500450, 500700
*Rubber stand-offs must be applied first
Orientation Transmitter/receivers may be installed front or rear facing.
Enclosure Black painted aluminium.
Mounting holes Four (4) mounting holes and 2 slotted holes
Mounting hardware Four (4) #6 screws and drywall anchors are included.
Dimensions 5.58” (W) x 3.12” (H) x 1.44” (D) (14.2 cm x 7.93 cm x 3.65 cm).
Weight 1.2 oz (34 gms).
Warranty Lifetime.
Order Information 500916 Surface-Mount Transceiver Plate
8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5
Tel.: (+1) 514-905-0588 Fax: (+1) 514-905-0589
Toll Free (North America): (877) 689-5228
E-mail: [email protected] URL: www.muxlab.com
94-000751-A SE-000751-A

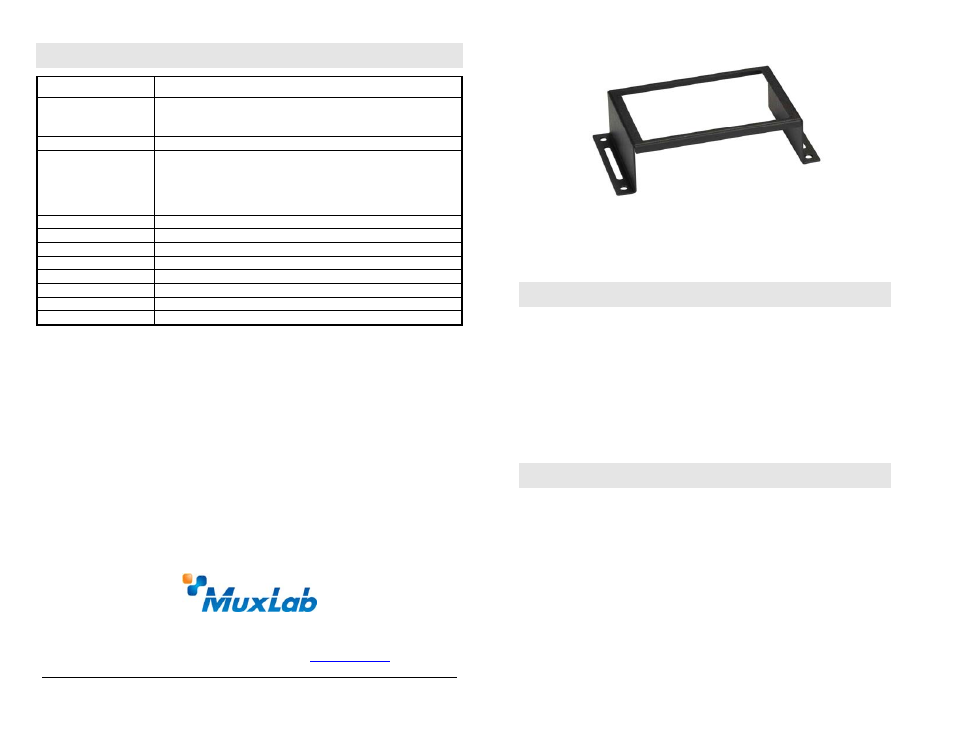

Surface Mount Transceiver Plate (500916)
Installation Guide
Introduction
The Surface Mount Transceiver Plate allows any MuxLab medium-size balun
transmitter/receivers to be installed on a wall or furniture surface for a more
permanent and robust installation. Head-end AV equipment such as DVD players,
video servers and sat boxes may be installed in a local wiring closet and connected
to the Cat5 structured cabling system via a wide array of MuxLab balun solutions.
The 500916 fully secures the transmitter/receivers while allowing the pin
configuration to be displayed for ease of reference. Mounting ears are positioned to
allow multiple fixtures to be installed next to each other. The 500916 comes with
four (4) mounting screws and plastic anchors for drywall installation.
Installation
In order to install the Surface Mount Transceiver Plate (500916), perform the
following steps:
1. Identify the final location and orientation of the Surface Mount Transceiver
Plate.
2. Mark off and prepare the mounting holes and install the drywall anchors that
are included with the product.
