Specifications
Environment
Custom audio-video systems in a structured cabling environment.
Application
Wall or furniture surface-mounting of MuxLab baluns in head-end
installations, audio-video rooms, telecom rooms, boardroom
systems, classrooms, CCTV systems.
Capacity
One square MuxLab balun.
Compatible baluns
MuxLab baluns measuring: 2.4” x 2.25” x 1” (6.1 x 5.7 x 2.5 cm).
Orientation
Baluns may be installed front or rear facing.
Enclosure
Aluminum. Black painted.
Mounting hardware
Two (2) #6 screws and drywall anchors are included.
Dimensions
3.42” (W) x 2.4” (H) x 1.1” (D) (8.7 cm x 6.1 cm x 2.7 cm).
Weight
0.6 oz (17 gms).
Warranty
Lifetime.
Order Information
500915 Surface Mount Balun Plate
8114 Trans Canada Hwy, St. Laurent, Quebec, Canada, H4S 1M5
Tel.: (+1) 514-905-0588 Fax: (+1) 514-905-0589
Toll Free (North America): (877) 689-5228
E-mail: [email protected] URL:
www.muxlab.com
94-000631-A
SE-000631-A

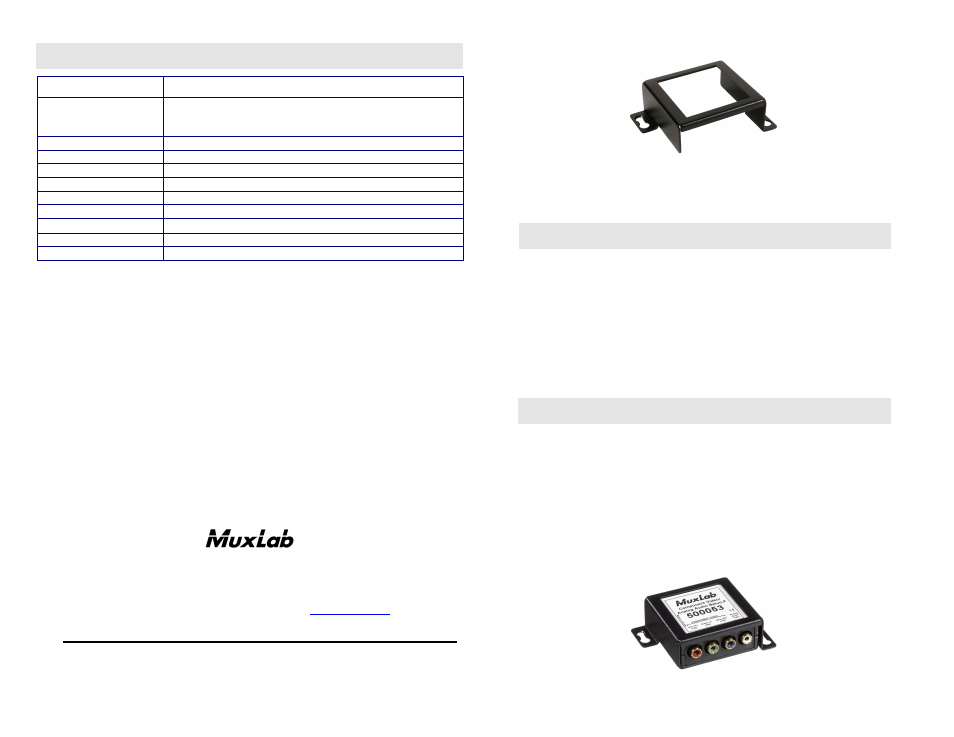

Surface Mount Balun Plate (500915)
Installation Guide
Introduction
The Surface Mount Balun Plate (500915) allows any MuxLab square balun
to be installed on a wall or furniture surface for a more permanent and robust
installation. Head-end AV equipment such as DVD players, video servers
and sat boxes may be installed in a local wiring closet and connected to the
Cat5 structured cabling system via a wide array of MuxLab balun solutions.
The 500915 fully secures the balun while allowing the pin configuration to be
displayed for ease of reference. Mounting ears are positioned to allow
multiple fixtures to be installed next to each other. The 500915 comes with
two (2) mounting screws and plastic anchors for drywall installation.
Installation
In order to install the Surface Mount Balun Plate (500915), perform the
following steps:
1. Identify the final location and orientation of the Surface Mount Balun
Plate.
2. Mark off and prepare the mounting holes and install the drywall
anchors that are included with the product.
3. Insert a square MuxLab balun firmly into the Surface Mount Balun
Plate.
