© MuxLab Inc. HDMI 4x8 Matrix Switch, HDBT, PoE Installation Guide
Page 32
The Logout hyperlink logs the user out of the system.
The Language drop-down list provides the user with three interface languages:
English, French, and Spanish. English is used by default.
The Product status indicator provides a quick indication of device status by means of
a colored box (green, orange, red) to indicate various product statuses:
• Green = Okay
• Orange = Warning
• Red = Error
The user can configure the Product status indicator to display different statuses
depending on various device conditions (internal temperature, fan speed, etc.). This
configuration is performed in the Alarm tab of the Setup submenu.
After logging in, the main screen appears (Figure 20). It contains three submenus:
(1) Port Management
(2) Setup
(3) Help
(1) Port Management
The Port Management submenu (Figure 20) appears after the user has successfully
logged in.

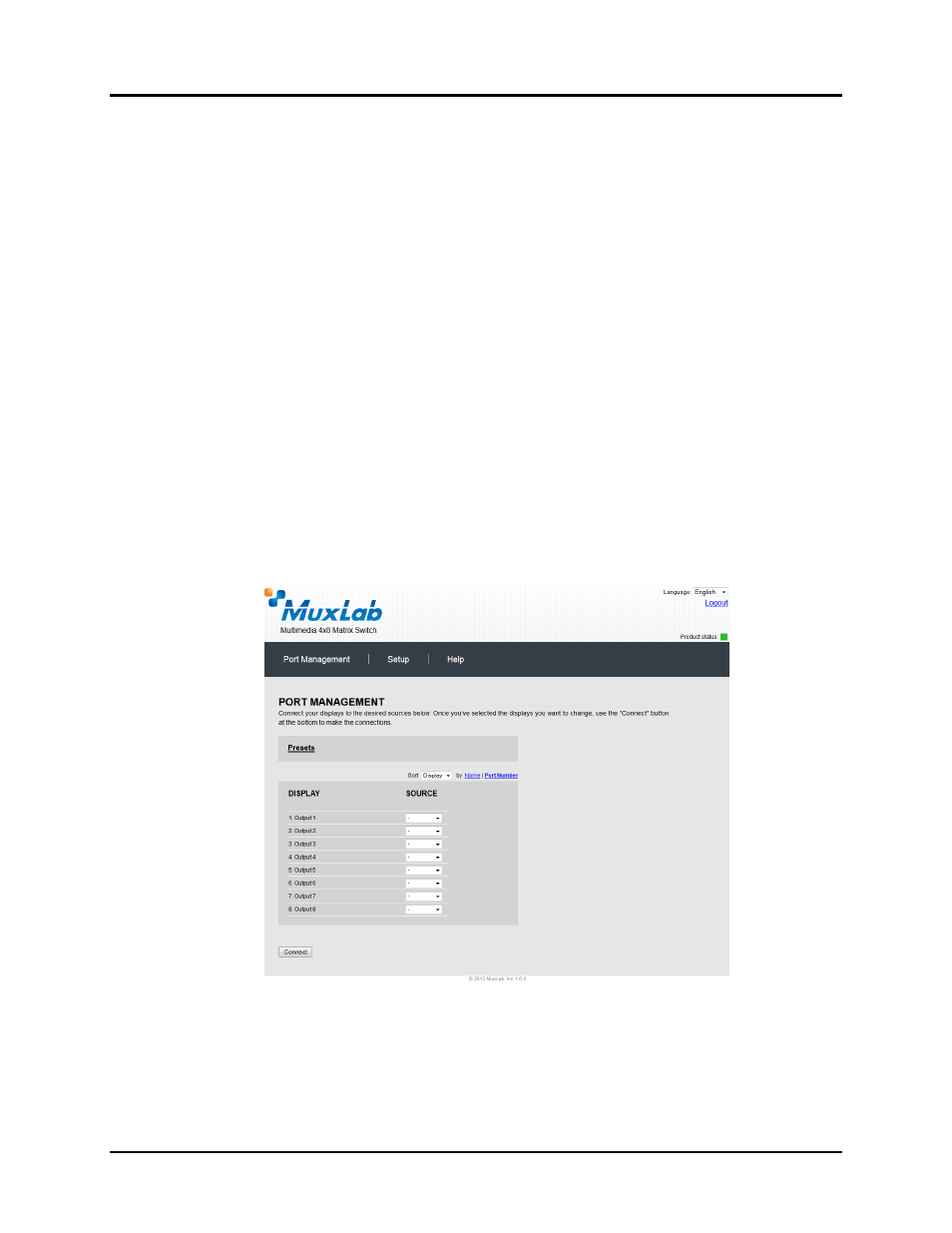

Figure 20: Port Management Submenu
The Port Management submenu manages the connection configurations of displays
and sources.
A connection configuration is a specific set of mapping instructions between all
displays and devices. A saved connection configuration is known as a preset.
