3.6.
Manual Control
The HDMI 4x8 Matrix Switch, HDBT, PoE may be controlled manually by using the
controls located on the front panel.
Navigating the manual control menu is performed by using the ‘Info’, ‘Menu’, and
‘Switch’ buttons located on the front panel, just below the display, as well as the
numeric keypad and arrows located to the right of the display. (NOTE: The ‘Cancel’
button on the numeric keypad also returns the user to the previous screen.)

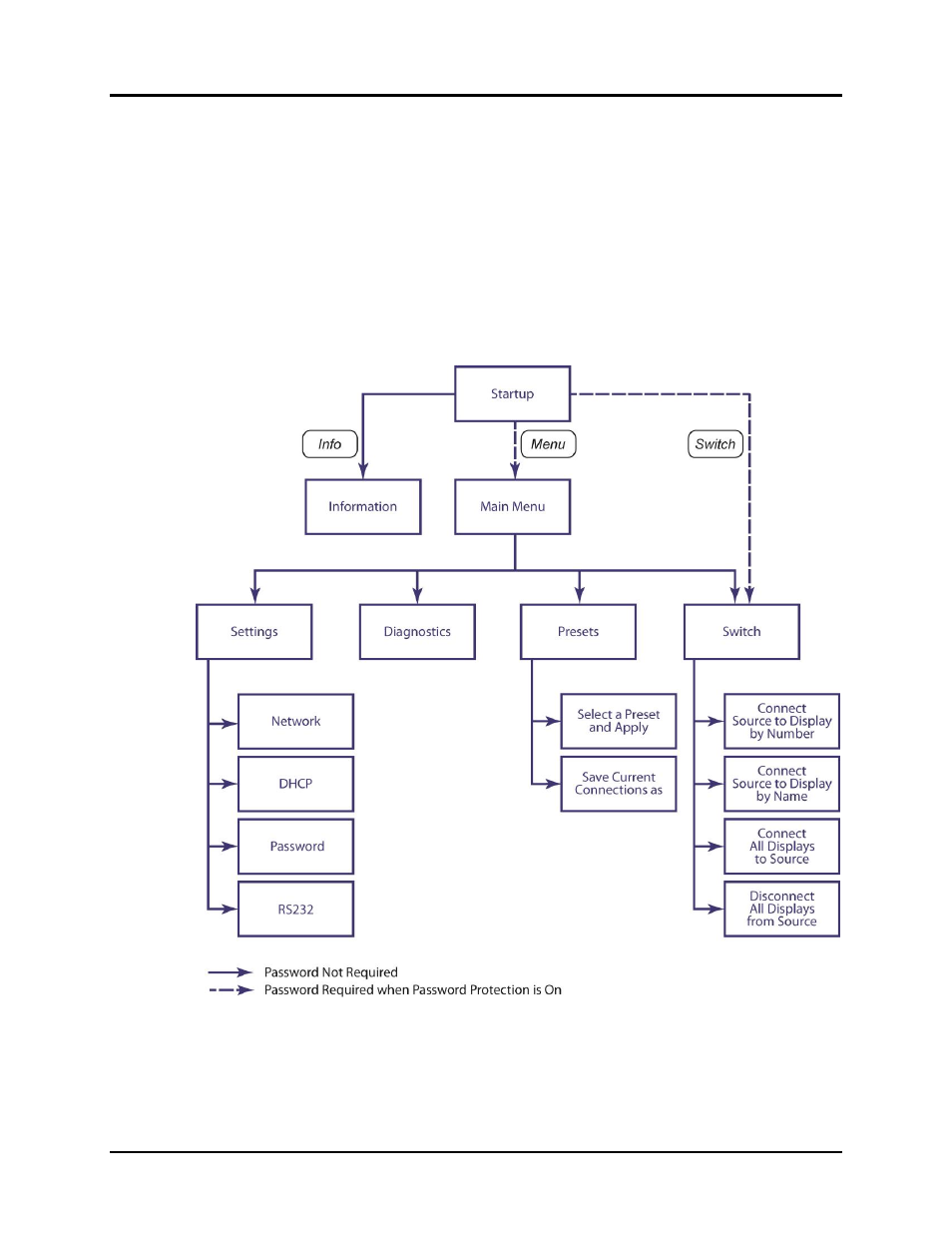

Figure 10 illustrates the navigational layout of the manual control menu. Specific
menu screens (depicted by boxes) are described on the following pages.
Figure 10: Manual Control Navigation
