3.2. Product Overview
The external connections and connection indicators of the Audio 8x8 Matrix Switch
are detailed in Figure 2 and Figure 3 (mounting brackets not shown). Please
familiarize yourself with them before installing the unit.

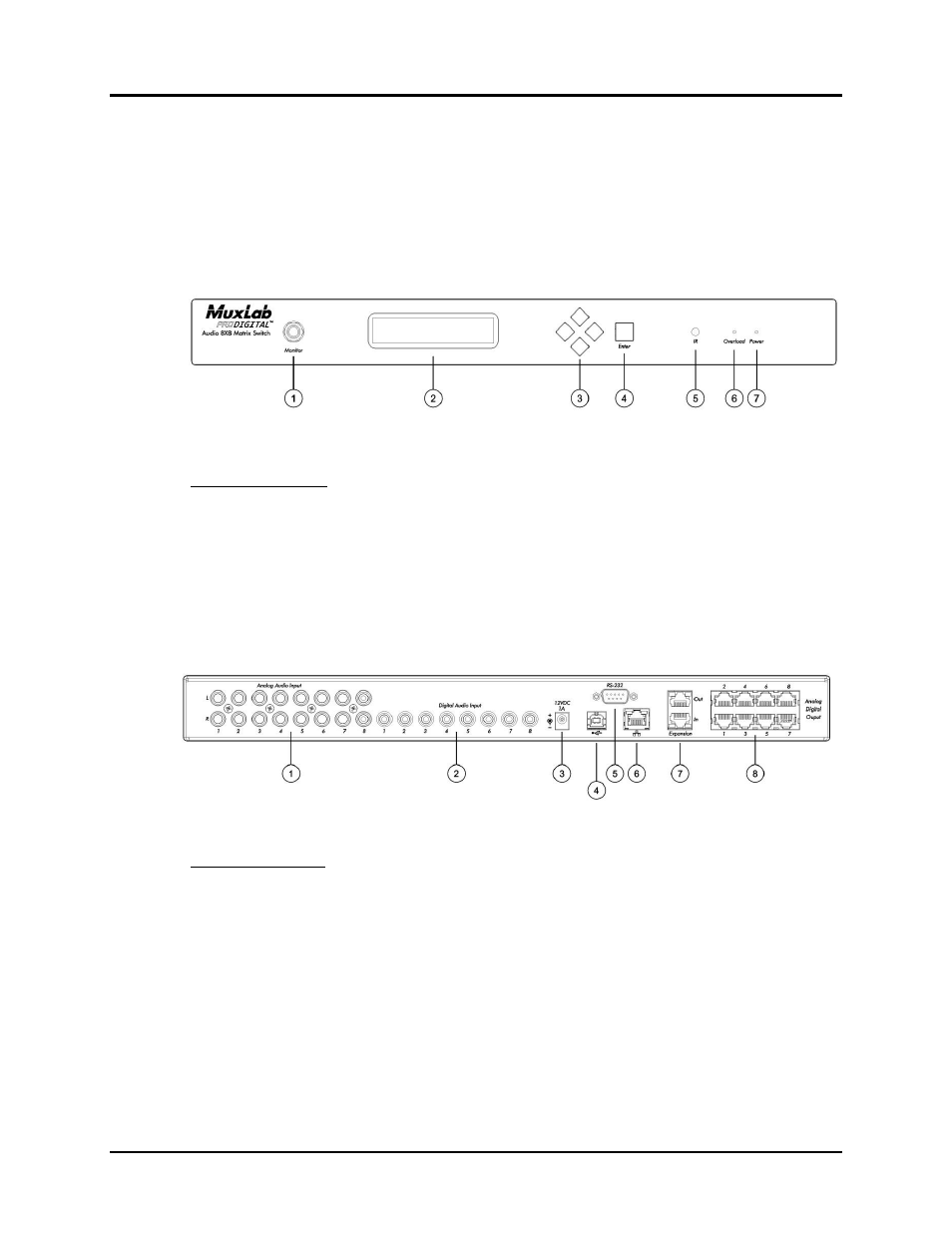

Figure 2: Front Panel
Front Panel Legend
1. Monitor port
2. Display
3. Navigation pushbuttons
4. Enter pushbutton
5. IR sensor
6. Overload indicator (blue LED)
7. Power indicator (blue LED)
Figure 3: Back Panel
Back Panel Legend
1. Analog audio input ports (RCA connector)
2. Digital audio input ports (RCA connector)
3. Power supply port (2.1 MM barrel connector)
4. Remote interface port (USB)
5. Remote interface port (RS-232)
6. Remote interface port (RJ45)
7. Expansion input/output ports (RJ45)
8. Analog digital output ports (RJ45)
